Analog signal cable 0-10V | Standard, Pro, HPN, Prime 100 | FP.589004
: Cable for analog signal input 0-10V with connector Make: Stiloh Brand: FlowFriend Analog signal: 0-10V DC Connection: Cable gland M12 (Plug can be removed from the motor cover) Material: PVC - with connector Length: 5 mtr. With this optional cable the motorspeed can be external adjusted by an analog 0-10V signal.The connector must be plugged in the available connection on the PCB motor control board in the motor cover. Brown = 0-10V DC inputWhite = Ground - Read the enclosed installation and user manual for detailed instructions - Quick User Guide:0-1.5V - Motor speed is running on the manually setted speed 1.5 - 2.3V - The motorspeed is zero, pump stop rotating and in in standby modus2.3V - 10V - The speed increases linearly from 600 till 2600 rpm This means that at 2.3V the motor will run on 600 rpm, and at 10V the motor will run on the maximum speed op 2600 rpm. WARNING:The input voltage may not exceed 12V otherwise the PCB board of the control unit can be damaged. FlowFriend pump types:FlowFriend Standard - HFP 90FlowFriend Pro - PP 100/22FlowFriend HPN 110FlowFriend Prime 100

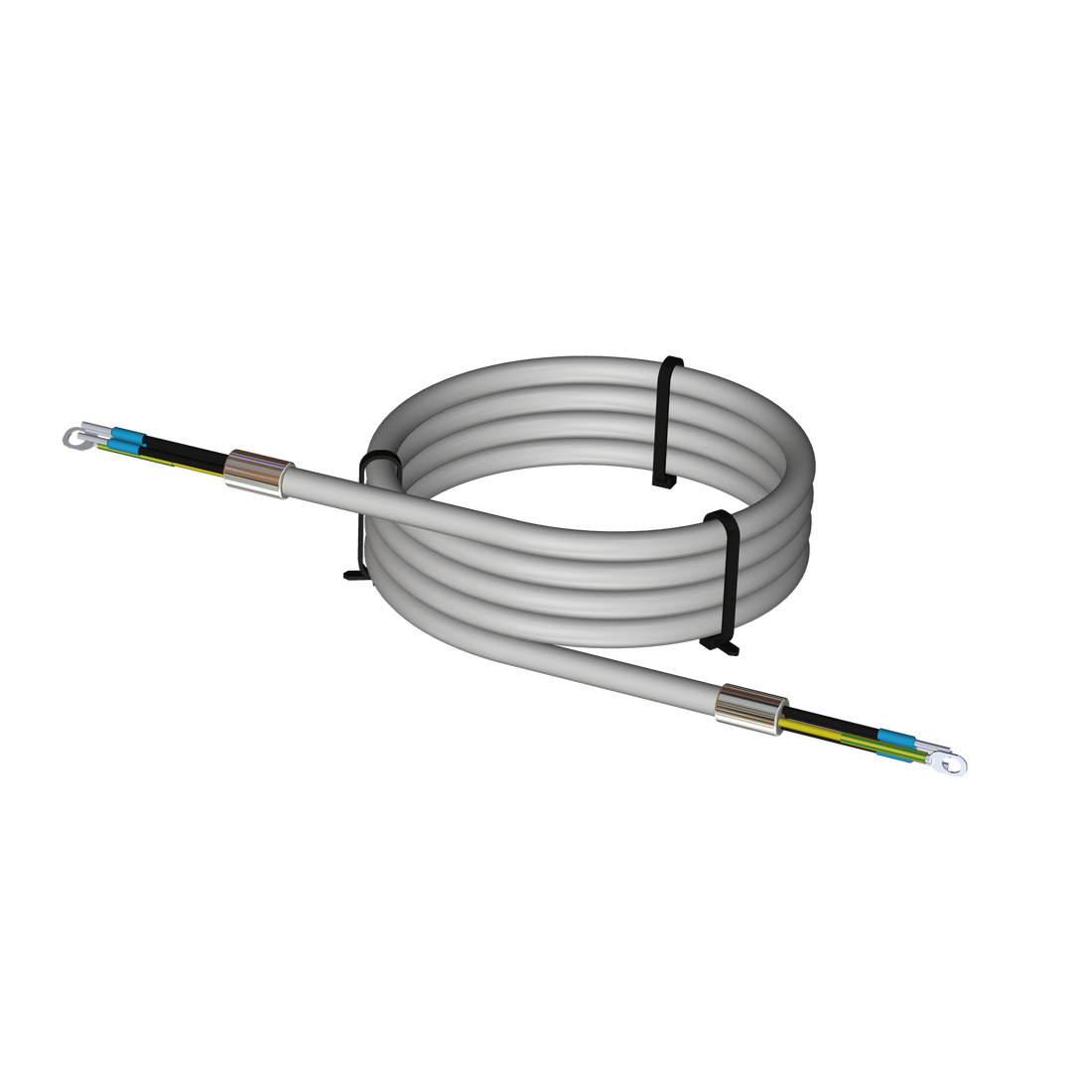

Cable complete | Motor controller - Motor Junior - HFP 70 | FP.589101
: Spare cable complete with connectors Make: Stiloh Brandname: FlowFriend Material: PVC - EMC shielded Length: 5 mtr. FlowFriend pump type:Junior - HFP 70Connection cable between Motor and motor controller.

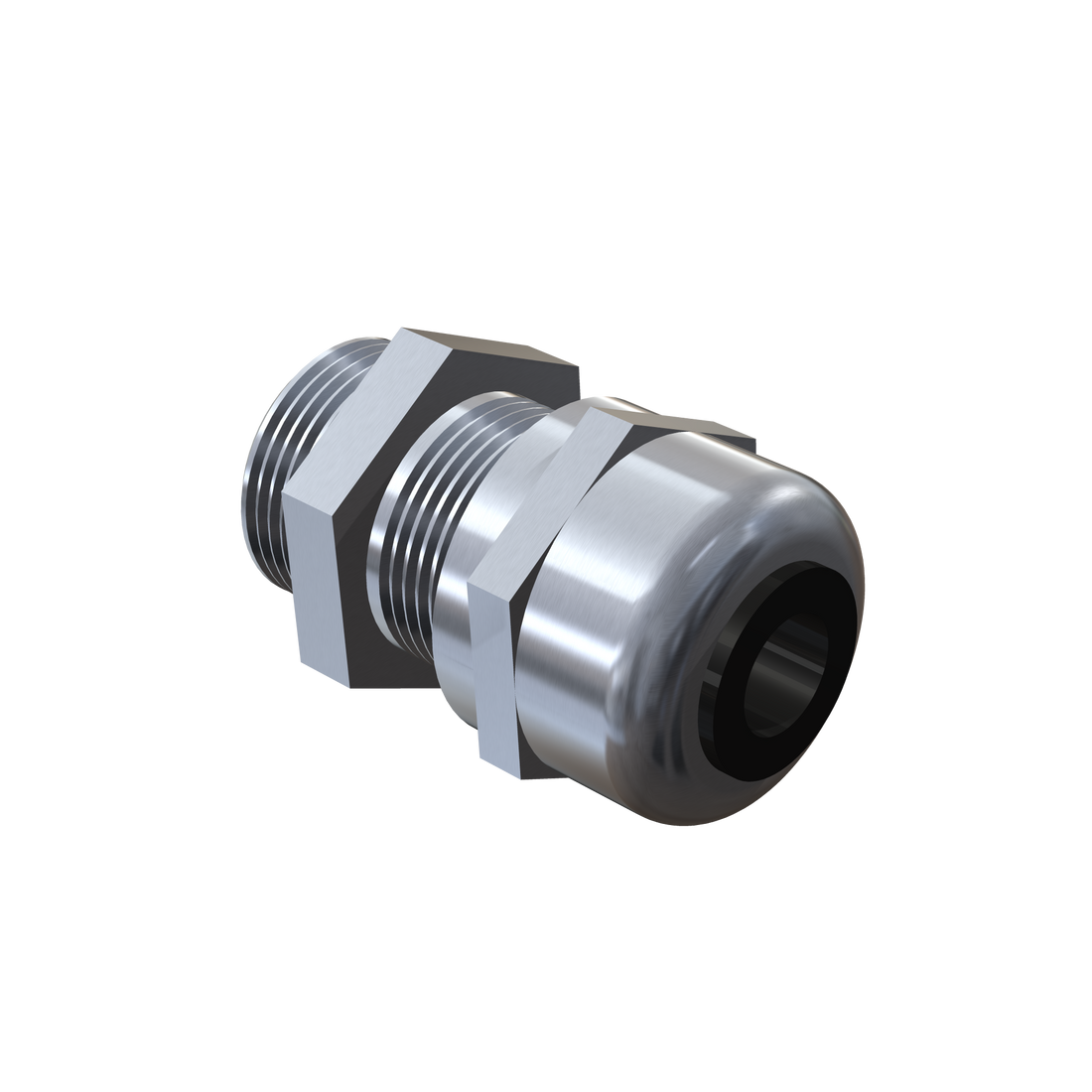

Cable gland IP68 | Lapp Skintop M16x1.5 | FP.589006
: Cable glandMake: LappType: Skintop MS-MIP rating: IP68Size: M16x1.5 Material: Brass Nickle platted
Cable gland IP68 | Lapp Skintop M20x1.5 | FP.589007
: Cable glandMake: LappType: Skintop MS-SC-MIP rating: IP68Size: M20x1.5 Material: Brass Nickle platted

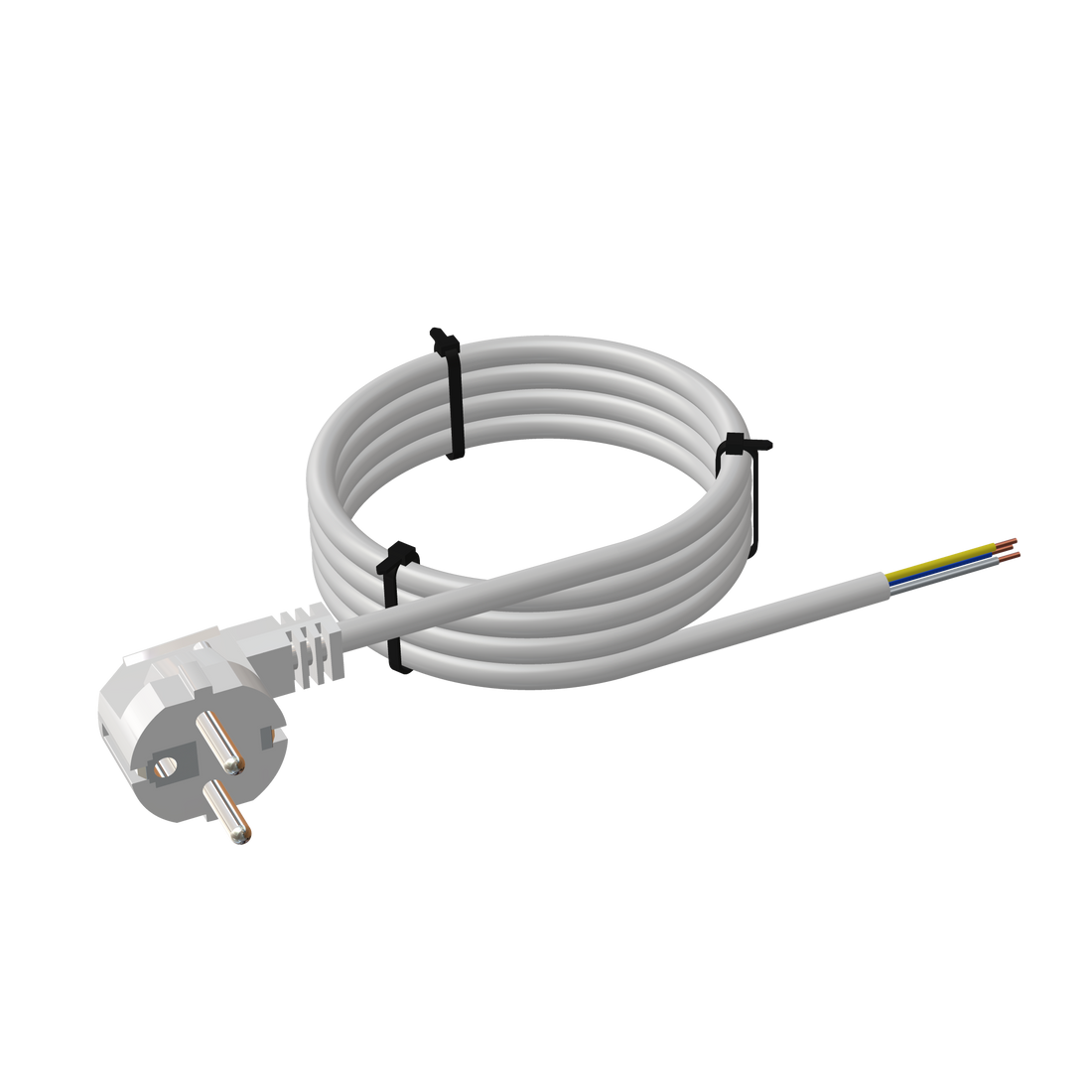

Cable | 230V - Europlug - FlowFriend - Junior - HFP 70 | FP.589013
: Power cable - EuroplugType: H05VV-F3G1.00GRType: FVoltage: 230VLength: 3 mtr. Material: PVCColor: Gray

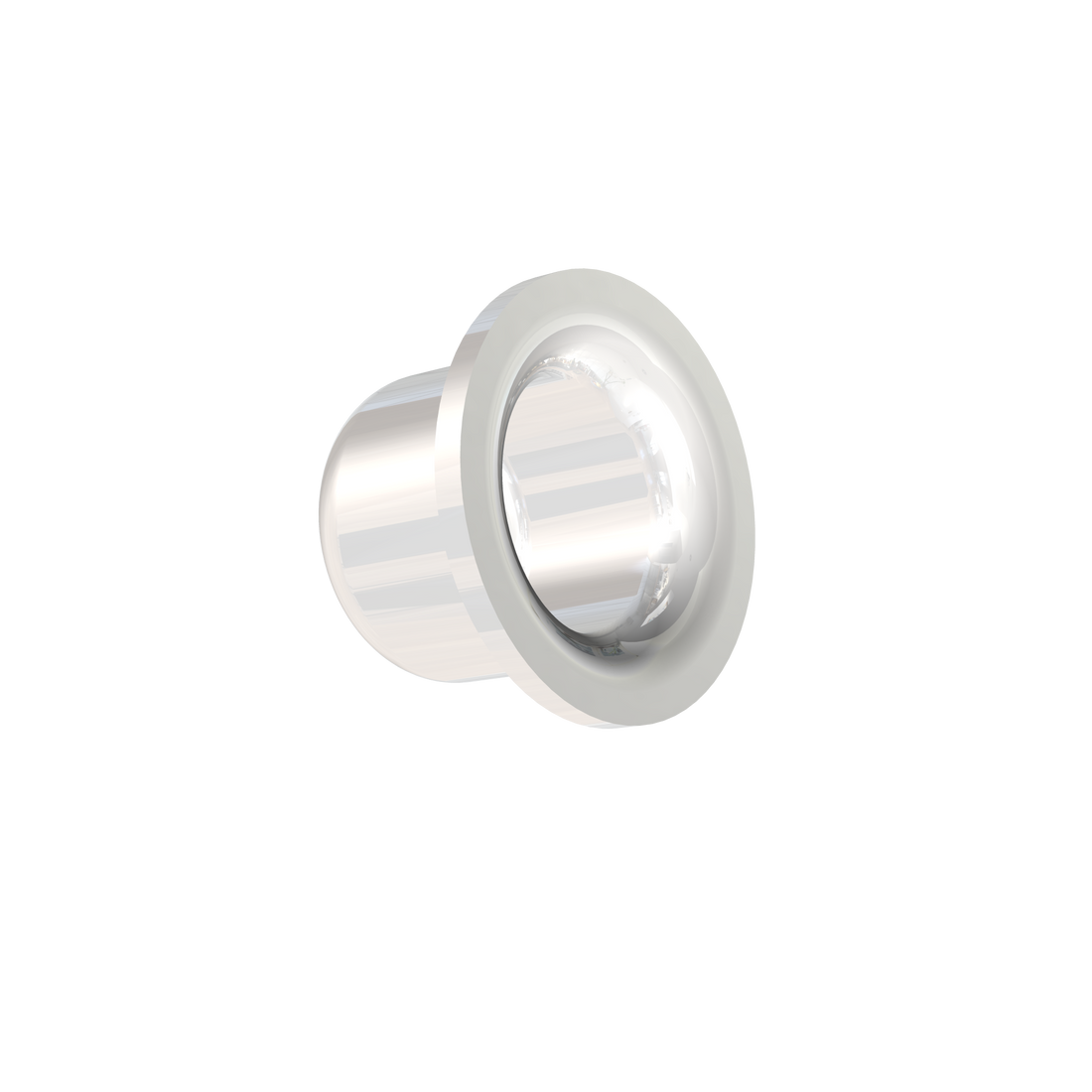

Condens water plug - Nylon | HEW - Standard, Pro, HPN | FP.589005
: Condens water plug PMSM motor - Permanent Magnet Synchronous MotorMake: StilohBrand: FlowFriendType: Standard, Pro, HPNMaterial: Nylon Plug can be removed in high humidity and non- continuous operation (start-stop operation)
Deep groove ball bearing | FP.589099
: Ball bearing Type: Deep groove ball bearing Size: 6202 Sealing: 2Z Clearance: C3 Lubrication: Life time lubricated FlowFriend Junior HFP 70Motor bearing for FlowFriend Junior.Driven end (pump side) and Non driven end (motorside).2 pieces needed per motor. FlowFriend Standard HFP90, Pro PP100/22, HPN 110Motor bearing for FlowFriend Standard, Pro and HPN.Non driven end (fan side) 1 piece per motor.

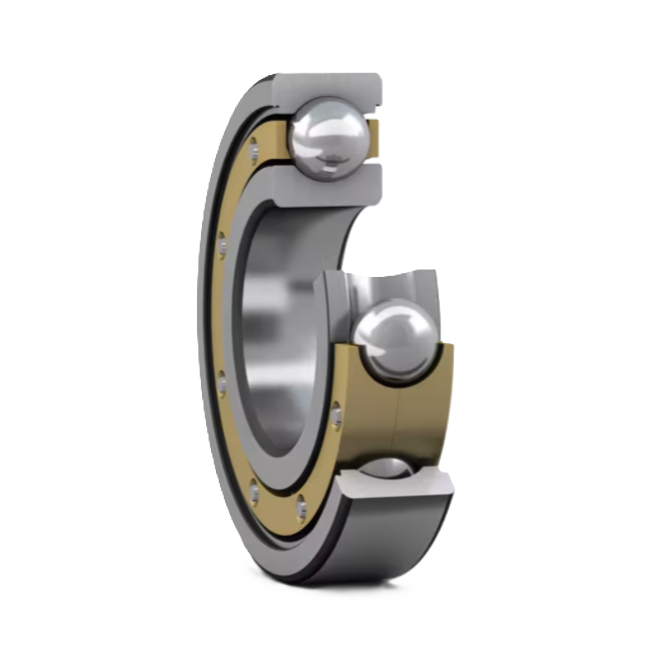

Deep groove ball bearing | FP.589100
: Ball bearing Type: Deep groove ball bearing Size: 6204 Sealing: 2Z Clearance: C3 Lubrication: Life time lubricated FlowFriend Standard HFP90, Pro PP100/22, HPN 110Motor bearing for FlowFriend Standard, Pro and HPN.Driven end (pump side) 1 piece per motor.

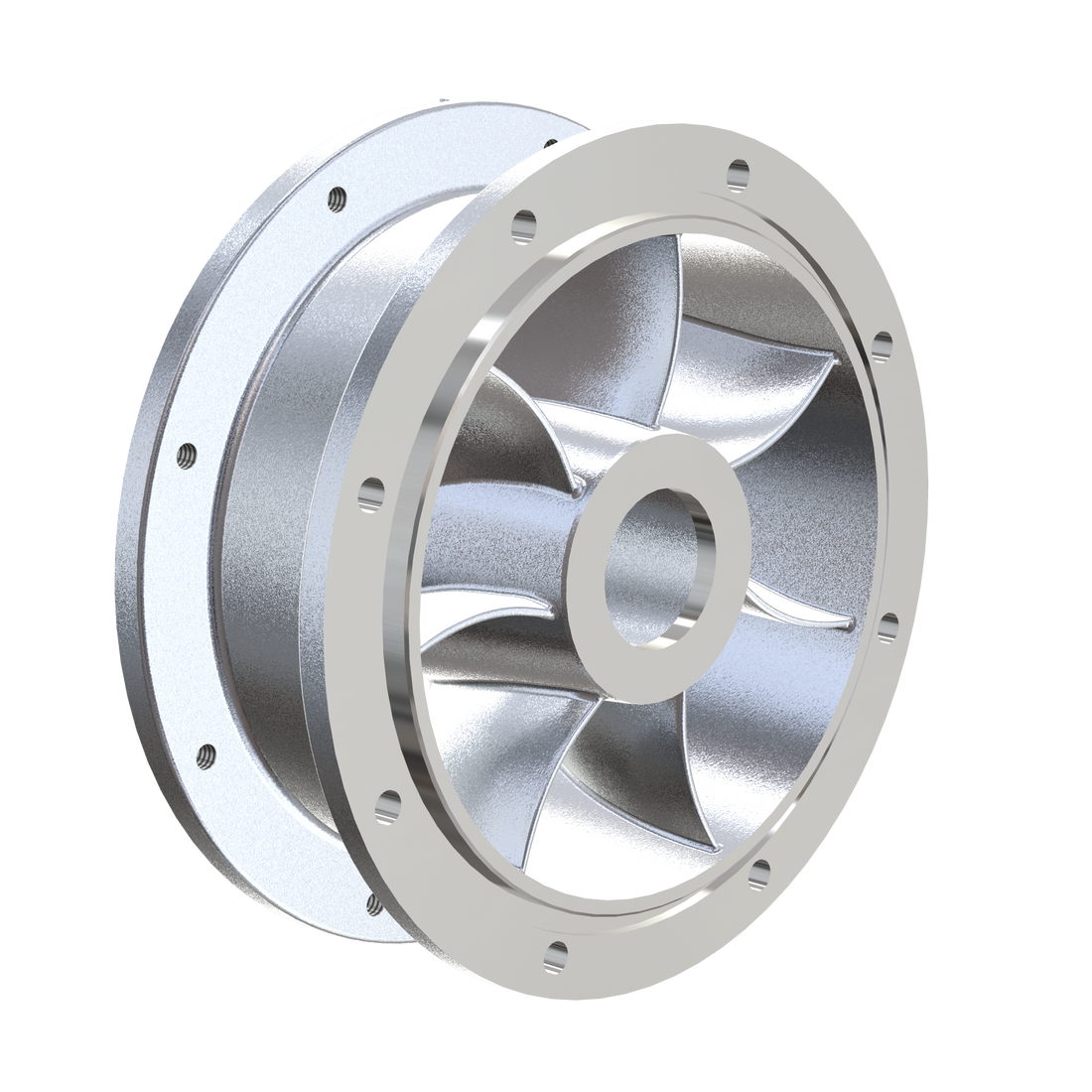

Diffuser | FlowFriend Pro - PP 100/22 | FP.589041
: DiffuserMake: FlowFriendType: Pro - PP 100/22 Material: Cast stainless steel 1.4408 (CF8M)

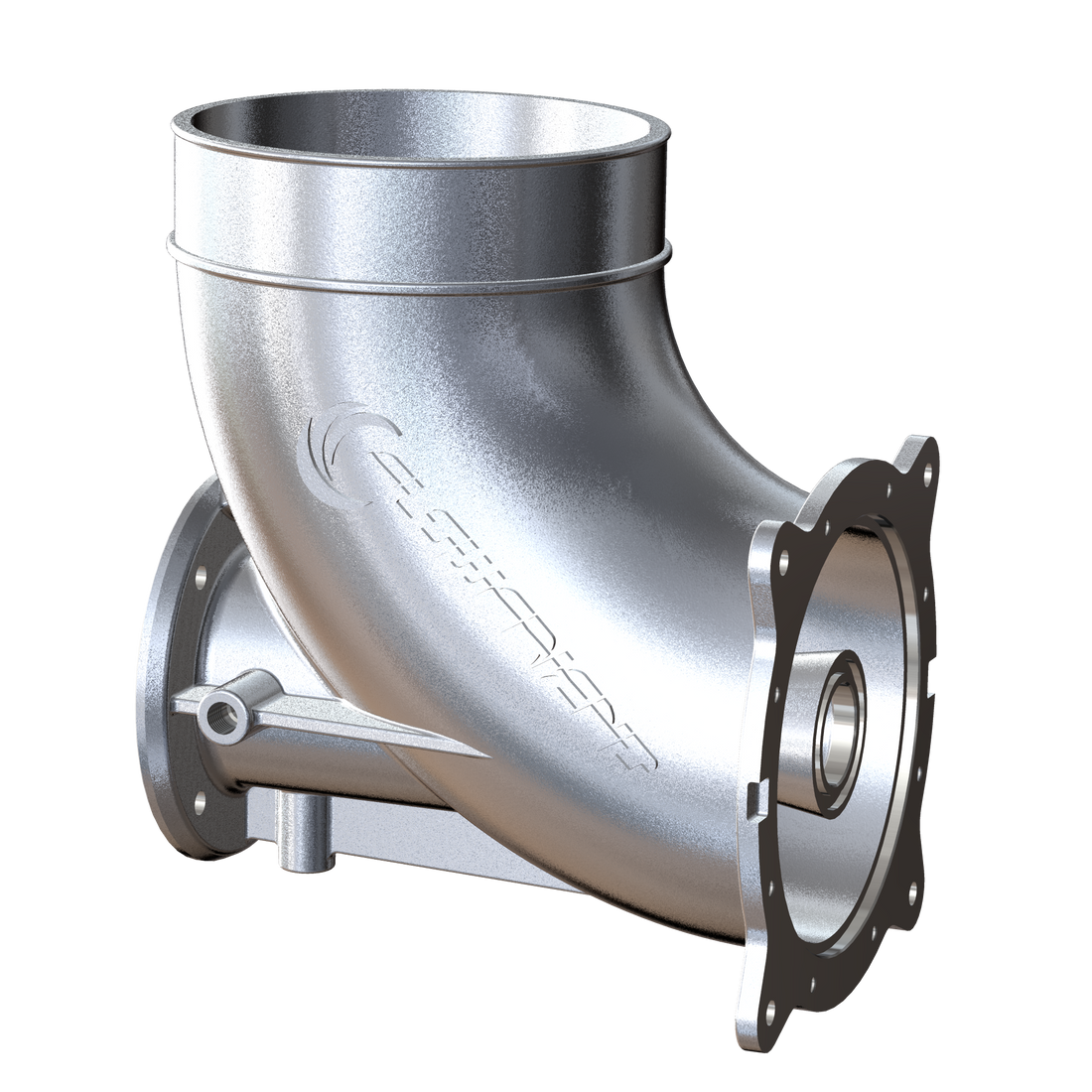

Discharge elbow | FlowFriend Pro - PP 100/22 | FP.589042
: Discharge ElbowMake: FlowFriendType: Pro - PP 100/22Material: Cast stainless steel 1.4408 (CF8M)
Distance ring | FlowFriend Junior - HFP 70 | FP.589034
: Distance ringMake: FlowFriendType: Junior - HFP 70 Material: Cast stainless steel 1.4408 (CF8M)

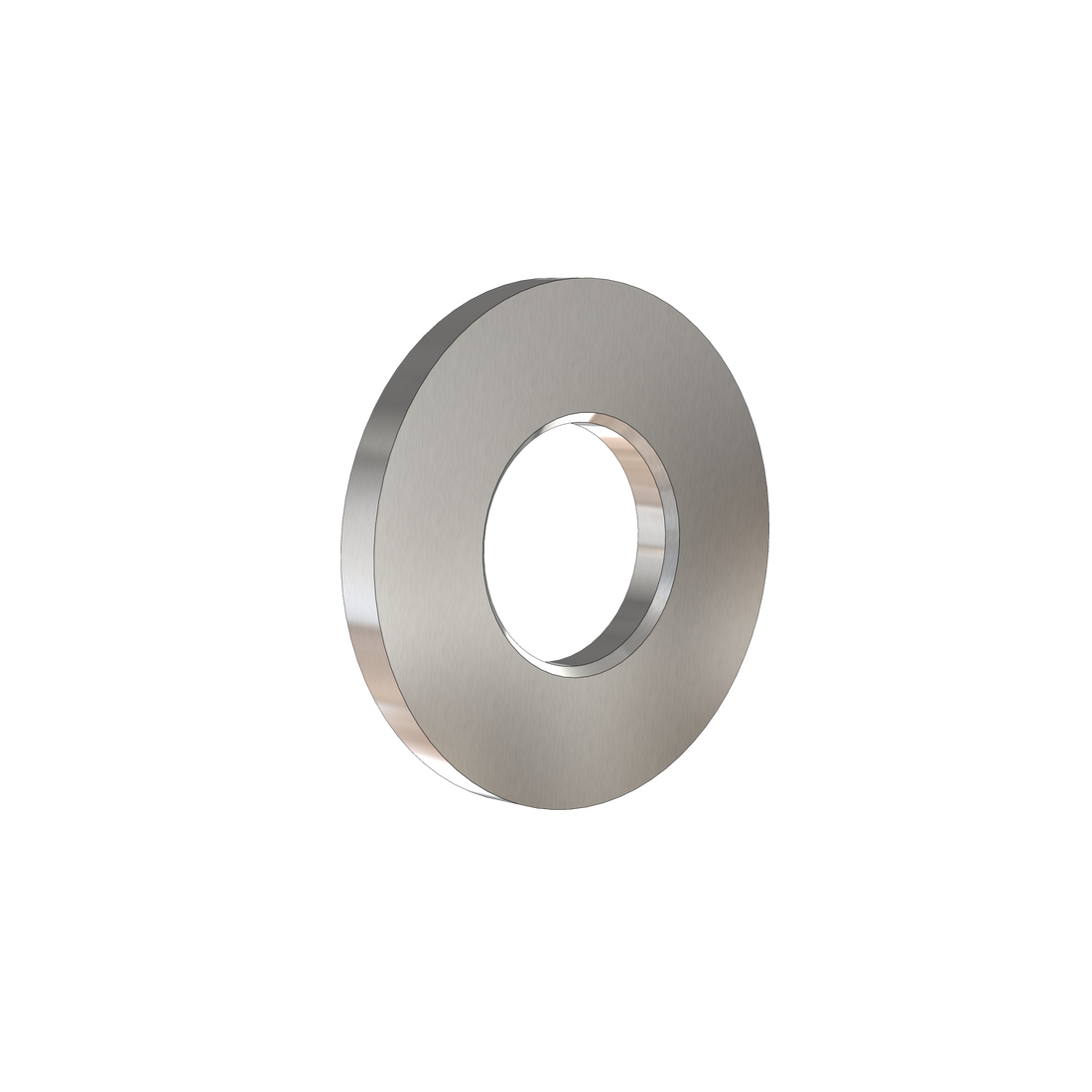

Distance ring | Standard, Pro, HPN | FP.589039
: Distance ringMake: FlowFriendType: Standard, Pro, HPN Material: Stainless steel 1.4404 (AISI 316L) Flowfriend types:Standard - HFP 90Pro - PP 100/22HP - HPN 110

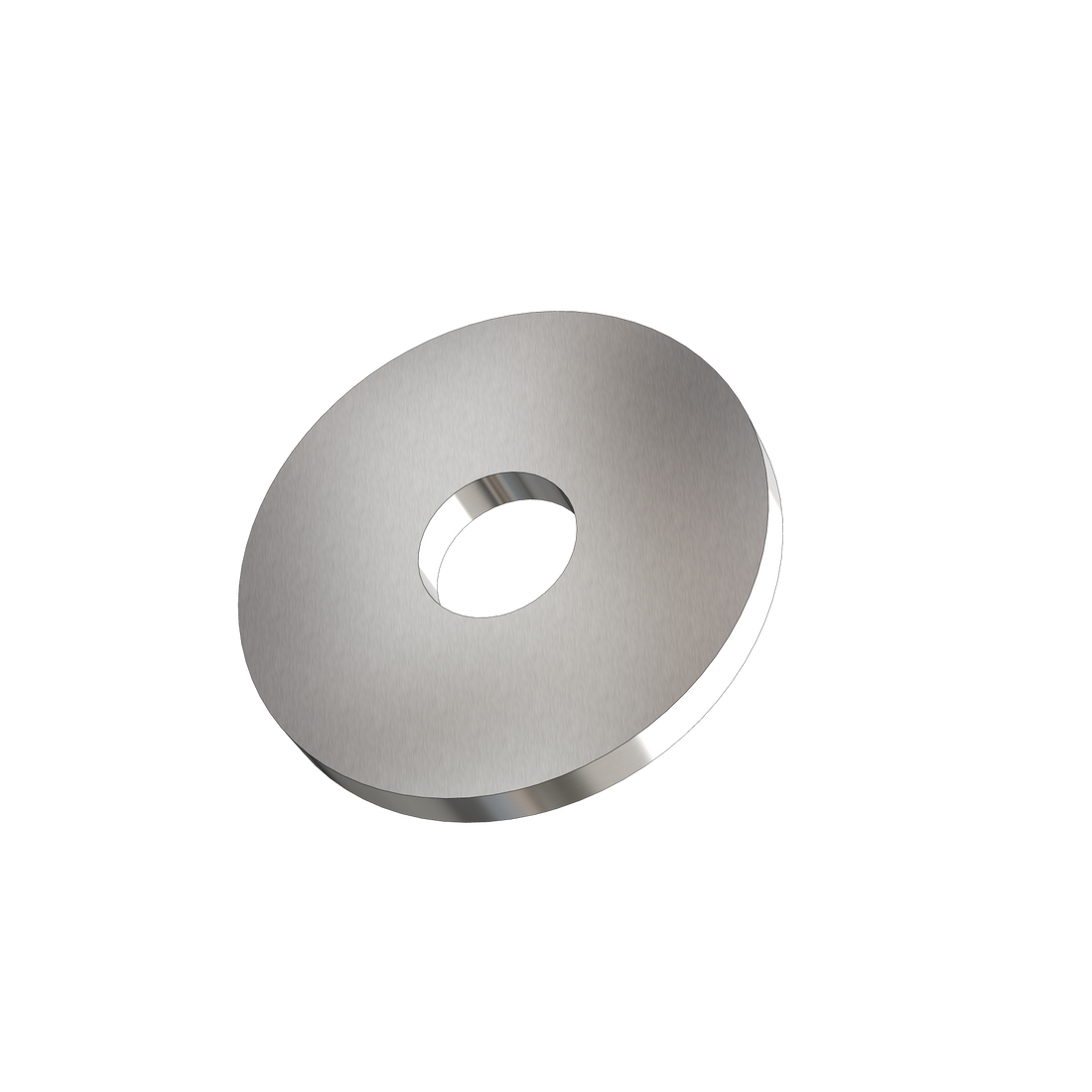

Flat washer for wood constructions | FP.589047
: Flat washer for wood constructions Standard: DIN 440R Dimensions: 6.6x22x2 - for M6 Material: Stainless steel A2
FlowFriend HP | HPN 110 | FP.589090
High-efficient electronically controlled water pump that is built to last for a wide range of applications.The High-End FlowFriend HP (High Pressure) - HPN 110 is a real powerhouse.Ahead of its time this pump is unbeatable in terms of proven performance, efficiency and reliability. Ingenious radial flow pump hydraulics makes these pumps able to pump high volumes of water with a higher head compared to mixed flow or propeller pumps but with very low power consumption. For very low head applications, bellow 4 m.w.c, it is better to choose a mixed flow (Standard) or a propeller (Pro) pump.Built like a tank, with high-precision, lost-wax cast and machined stainless steel pump components for exceptional durability and performance. Pumping particles up to 4 mm without clogging goes effortlesslyThe pumps switch off automatically in the event of blockage, overheating, undervoltage preventing damage to the unit. This product is sustainable through replaceable parts, allowing for easy repairs and reducing environmental impact. The perfect choise where reliability is required. Proven technology with thousands of units already installed worldwide. Applications Industrial Applications Cooling Water / Heating HVAC: Water is used extensively in industries for cooling and heating purposes. In HVAC systems, water circulates through heat exchangers to maintain optimal temperatures. Cooling towers often rely on water circulation to dissipate heat. Water Supply: Industrial facilities rely on a steady supply of water for their operations, including process cooling, cleaning, and manufacturing. Pressure Increase: Water circulation systems are often used to increase pressure for industrial processes, such as in pumps or pressurized systems. Water Features Waterfalls, Streams, Fountains: In landscaping and decorative architecture, water circulation is used to power water features like waterfalls, streams, and fountains. These systems often rely on pumps to circulate water continuously. Sanitary Water Use Sanitary Water Systems: In residential or commercial buildings, water circulation ensures that sanitary water is delivered to faucets, showers, and toilets. Swimming Pools and swimming Ponds Swimming Pools: Water circulation in swimming pools helps maintain cleanliness and temperature. Filtration systems circulate the water through filters to remove debris, and pumps keep the water moving to avoid stagnation. Swimming Ponds: Similar to swimming pools, swimming ponds use circulation systems for water quality management. They often incorporate biological filters to maintain the ecosystem. Aeration Aeration Systems: Used in various applications like wastewater treatment or aquaculture, aeration ensures the water has enough oxygen to support aquatic life and promote microbial digestion of organic waste. Agriculture Water Circulation for Irrigation: In agriculture, water circulation is crucial for irrigation systems. It ensures water reaches plants evenly, whether through drip irrigation, sprinklers, or canals. Livestock and Zoos Water Circulation for Livestock: Livestock require fresh, clean water for hydration and health. Circulation systems help maintain water quality in troughs, tanks, and reservoirs. Zoos: In zoo environments, water circulation is often part of habitat design for animals that need aquatic environments, such as fish, amphibians, or aquatic mammals. Aquaculture Aquaculture Filtration Systems: Bead Filter: A type of mechanical filtration used in aquaculture to remove suspended solids. Trickle Filter: A biological filter that provides a large surface area for beneficial bacteria to grow, converting toxic substances like ammonia into less harmful compounds. Sand Filter: Uses sand to trap debris and particles from the water. As water passes through the sand, contaminants are removed. Periodic cleaning (backwashing) is required to maintain its effectiveness. Fish Ponds Fishpond Circulation Systems: Maintaining water circulation in fishponds is essential to keep oxygen levels high and remove waste products. Aeration, filtration, and regular water movement are key components of pond management to ensure a healthy environment for fish. Aquaponics Aquaponics is a sustainable agricultural method that combines aquaculture (fish farming) and hydroponics (soil-less plant cultivation) in a closed-loop system. Fish waste provides organic nutrients for plants, while plants naturally filter and purify the water, which is recirculated back to the fish tank. This system conserves water, reduces the need for chemical fertilizers, and allows for the simultaneous production of both crops and fish, making it an efficient and environmentally friendly method of food production. These systems rely on pumps, filters, and often energy-efficient technology to ensure that water is continuously circulated, ensuring it stays clean, healthy, and properly managed for both industrial and recreational uses. Would you like to dive deeper into any of these specific applications? Don't hesitate and contact us. Specification PUMP Make: Stiloh Brandname: FlowFriend Pumptype: HP - HPN 110 Hydraulic: Radial flow type Display: 7-digit blue letters Analog 0-10V signal: optional cable for external voltage for adjusted speed regulation Overheat protection: PT100 in motor winding Torque protection: 5 times restart after a rotor blockage Automatic restart: after power failure to prevent fish mortality Hour counter: Digital, cannot be reset Bearings: Lifetime greased; lifetime calculated on >100.000h Wearing: Hardened seat in pump casing Power measurement: Absorbed power included in the software Failure: Normal, failure and overload LED MEI > 0.7: classed benchmark for the most efficient pumps in the market MOTOR Motor type: Electronically controlled Permanent Magnet Synchronous Motor (PMSM EC) - Sinewave back EMF (Not brushless DC - BLDC) P2 motor power: 1100W Degree of protection: IP55 Efficiency index: IE4+ Magnets: Neodymium Magnets (NdFeB magnets) Fan: Low noise type Voltage: 230V +/- 10% (115V on request) Frequency: 50 Hz (60Hz on request) Certification: CE Speed: 600-2600 rpm (higher speed on request) Bearrings: Heavy duty lifetime grease lubricated Buttons: Membrane keyboard EMC: Class B (Household, commercial and industrial use) Cable: Rubber, 5 meter, 230V Schuko (other type stecker on request) PERFORMANCE Capacity: Max. 48 m3/hour - adjustable from 3 - 48 m3/hour Head: Max. 14.1 m.w.c. - adjustable from 2 - 14.1 m.w.c. Speed: adjustable speed 600 - 2600 rpm Motor efficiency: 88-94% Controller efficiency: >98% Hydraulic efficiency: >85% Mechanical efficiency: >88% CONNECTIONS Discharge side: G 2 1/2" x L=20mm threaded connection Suction side: G3" x L=20mm threaded connection SHAFT SEAL Mechancial seal: Eagle Burgmann, E-MG1, A/ESIC-Q7VGG/Y10 Material stationairy seat: Silicon carbide Material rotary seat: Carbon Material elastomers: Fluor elastomer (Viton) Spring material: 1.4571 - Stainless steel 316 Ti MATERIALS Pump casing: 1.4408 - CF8M - Cast stainless steel 316L Pump cover: 1.4408 - CF8M - Cast stainless steel 316L Impeller: 1.4408 - CF8M - Cast stainless steel 316L Impeller nut: 1.4408 - CF8M - Cast stainless steel 316L Elastomers: O-Rings NBR 70 shore, Elastomers mechanical seal Viton E-Motor: Aluminium Mechanical seal: A/ESIC-Q7VGG/Y10 Impeller key: 1.4571 - Stainless steel 316 Ti Extended motor shaft: Stainless steel 1.4122 TEST Hydrostatic test: 2.5 bar / 2 hours Performance test: According ISO 9906 - class C PMI test: Positive Material Indentification (PMI test) Runout test: Runout test pump rotor Balancing pump impeller: Quality according DIN ISO 1940-1 Grade G2.5 Features Highly efficient: PMSM motor and high-tech hydraulics, very high efficiency even on low speeds Low noise fan: Extreme quietly operation Precision casted Stainless steel: Robust, no bending due to tension in the piping Easy control: By display or external devices using optional accessories. Built to last Optimized hydraulics: Using state of art CFD (Computed Fluid Design) and scaled model test Frost protection: No risk of frost damage due to the use of stainless-steel type 316L Low NPSH: Smaller chance of cavitation and pump damage Low energy consumption: Savings of up to 85% possible compared to traditional pumps Efficient: Highly efficient at both low and high discharge heads and flows Dry running rotor technology: Compared to wet-running submerged motors, the dry-running rotor is superior in terms of efficiency and reliability, with no rotor blockages due to scale or solid particles Safety: Much safer than a wet runner (canned motor type), a submerged motor can result in motor voltage on the water. Available spare parts: Replaceable spare parts Low vibration: Almost vibration-free due to high balancing and vibration dampers Mechanical seal: High performance shaft sealing with high-end mechanical seal Bearings: Heavy duty bearings, sealed and lifetime lubricated > maintenance free Docs Basic pump performance curve | FlowFriend HP | HPN 110 Dimension drawing | FlowFriend HP | HPN 110 Exploded view | Flowfriend HP | HPN 110 Section drawing with BOM | FlowFriend HP | HPN 110 Partslist | BOM | FlowFriend HP | HPN 110

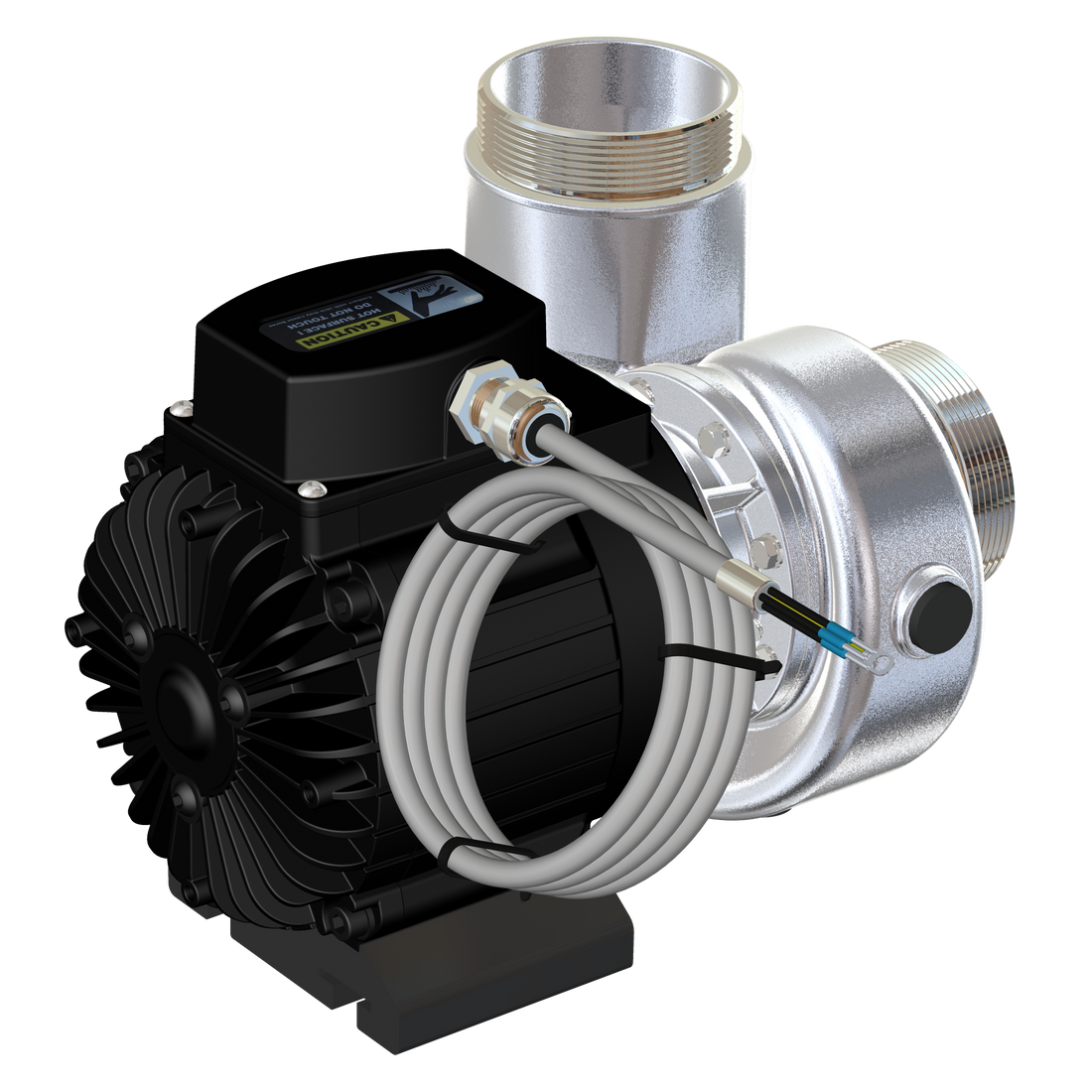

FlowFriend Junior | HFP 70 | Pump complete without controller | FP.589087
High-efficient electronically controlled water pump that is built to last for a wide range of applications.The High-End FlowFriend JUNIOR Small name. Big deeds.Don’t be fooled — Junior is no lightweight.He’s pure power, packed tight.He turns on.He keeps going.Day in, day out. No excuses. No downtime. Junior. Underestimate him once. Never again. Ahead of its time this pump is unbeatable in terms of proven performance, efficiency and reliability and don't forget its ultra-low sound profile. Ingenious mixed flow pump hydraulics makes these pumps able to pump high volumes of water with an average head but with very low power consumption. Built like a tank, with high-precision, lost-wax cast and machined stainless steel pump components for exceptional durability and performance. Pumping particles up to 5 mm without clogging goes effortlessly.This product is sustainable through replaceable parts, allowing for easy repairs and reducing environmental impact. The perfect choise where reliability is required. FlowFriend - Proven technology with thousands of units already installed worldwide. The motor controller must be ordered separately due to the various available configurations. Applications Industrial Applications Cooling Water / Heating HVAC: Water is used extensively in industries for cooling and heating purposes. In HVAC systems, water circulates through heat exchangers to maintain optimal temperatures. Cooling towers often rely on water circulation to dissipate heat. Water Supply: Industrial facilities rely on a steady supply of water for their operations, including process cooling, cleaning, and manufacturing. Pressure Increase: Water circulation systems are often used to increase pressure for industrial processes, such as in pumps or pressurized systems. Water Features Waterfalls, Streams, Fountains: In landscaping and decorative architecture, water circulation is used to power water features like waterfalls, streams, and fountains. These systems often rely on pumps to circulate water continuously. Sanitary Water Use Sanitary Water Systems: In residential or commercial buildings, water circulation ensures that sanitary water is delivered to faucets, showers, and toilets. Swimming Pools and swimming Ponds Swimming Pools: Water circulation in swimming pools helps maintain cleanliness and temperature. Filtration systems circulate the water through filters to remove debris, and pumps keep the water moving to avoid stagnation. Swimming Ponds: Similar to swimming pools, swimming ponds use circulation systems for water quality management. They often incorporate biological filters to maintain the ecosystem. Aeration Aeration Systems: Used in various applications like wastewater treatment or aquaculture, aeration ensures the water has enough oxygen to support aquatic life and promote microbial digestion of organic waste. Agriculture Water Circulation for Irrigation: In agriculture, water circulation is crucial for irrigation systems. It ensures water reaches plants evenly, whether through drip irrigation, sprinklers, or canals. Livestock and Zoos Water Circulation for Livestock: Livestock require fresh, clean water for hydration and health. Circulation systems help maintain water quality in troughs, tanks, and reservoirs. Zoos: In zoo environments, water circulation is often part of habitat design for animals that need aquatic environments, such as fish, amphibians, or aquatic mammals. Aquaculture Aquaculture Filtration Systems: Bead Filter: A type of mechanical filtration used in aquaculture to remove suspended solids. Trickle Filter: A biological filter that provides a large surface area for beneficial bacteria to grow, converting toxic substances like ammonia into less harmful compounds. Drum Filter: A rotating filter that captures particles from the water by using a mesh drum. Multi-chamber Filter: A filtration system with multiple chambers that can handle both mechanical and biological filtration to maintain water quality. Belt Filter: Used for continuous filtration of larger quantities of water, often employed in industrial-scale aquaculture systems. Fish Ponds Fishpond Circulation Systems: Maintaining water circulation in fishponds is essential to keep oxygen levels high and remove waste products. Aeration, filtration, and regular water movement are key components of pond management to ensure a healthy environment for fish. Aquaponics Aquaponics is a sustainable agricultural method that combines aquaculture (fish farming) and hydroponics (soil-less plant cultivation) in a closed-loop system. Fish waste provides organic nutrients for plants, while plants naturally filter and purify the water, which is recirculated back to the fish tank. This system conserves water, reduces the need for chemical fertilizers, and allows for the simultaneous production of both crops and fish, making it an efficient and environmentally friendly method of food production. These systems rely on pumps, filters, and often energy-efficient technology to ensure that water is continuously circulated, ensuring it stays clean, healthy, and properly managed for both industrial and recreational uses. Would you like to dive deeper into any of these specific applications? Don't hesitate and contact us. Specification PUMP Make: Stiloh Brandname: FlowFriend Pumptype: Junior - HFP 70 Hydraulic: Mixed flow type Controller: Controlled by single phase controller - See controller product page Bearings: Lifetime greased, lifetime calculated on >100.000h Wearing: Hardened in pumpcasing Power measurement: Absorbed power included in the controller software MEI > 0.7: classed benchmark for the most efficient pumps in the market MOTOR Motor type: Electronically controlled Permanent Magnet Synchronous Motor (PMSM EC) - Sinewave back EMF (Not brushless DC - BLDC) P2 motor power: 800W Degree of protection: IP67 (submersible dept. max. 1 mtr - max. 30 min.) Efficiency index: IE5+ Magnets: Ferrite magnets - dry running outer rotor. Fan: Fan less - no fan noise at all - uncooled Voltage: 230V +/- 10% (115V possible with the special 115V controller) Frequency: 50 Hz (60Hz with special controller) Certification: CE Speed: 500-3000 rpm (higher speed on request) Bearrings: Heavy duty lifetime grease lubricated EMC: Class B (Household, commercial and industrial use) Cable: EMC cable, Lapp, PVC, 5 meter PERFORMANCE Capacity: Max. 40 m3/hour - adjustable from 2 - 40 m3/hour Head: Max. 5.5 m.w.c. - adjustable from 0.1 - 5.5 m.w.c. Speed: adjustable speed 500 - 3000 rpm Motor efficiency: 88-94% Controller efficiency: >98% Hydraulic efficiency: >86% Mechanical efficiency: >87% CONNECTIONS Discharge side: G 2 1/2" x L=20mm threaded connection Suction side: G 2 1/2" x L=20mm threaded connection SHAFT SEAL Mechancial seal: Eagle Burgmann, MG1, AQ1VGG Material stationairy seat: Silicon carbide Material rotary seat: Carbon Material elastomers: Fluor elastomer (Viton) Spring material: 1.4571 - Stainless steel 316 Ti MATERIALS Pump casing: 1.4408 - CF8M - Cast stainless steel 316L Pump cover: 1.4408 - CF8M - Cast stainless steel 316L Impeller: 1.4408 - CF8M - Cast stainless steel 316L Impeller nut: 1.4408 - CF8M - Cast stainless steel 316L Wearring: Non replaceable - hardened seat in pump casing Elastomers: O-Rings NBR 70 shore, Elastomers mechanical seal Viton E-Motor: Aluminium Mechanical seal: AQ1VGG Impeller key: 1.4571 - Stainless steel 316 Ti Extended motorshaft: Stainless steel 1.4122 or 1.4404 TEST Hydrostatic test: 1.5 bar / 2 hours Performance test: According ISO 9906 - class C PMI test: Positive Material Indentification (PMI test) Runout test: Runout test pump rotor Balancing pump impeller: Quality according DIN ISO 1940-1 Grade G2.5 Features Highly efficient: PMSM EC motor and high-tech hydraulics, very high efficiency even on low speeds Un- cooled - Fanless: Extreme quietly operation Precision casted Stainless steel: Robust, no bending due to tension in the piping Easy control: Advanced motor controller compatible with a wide range of external control options. Built to last Optimized hydraulics: Using state of art CFD (Computed Fluid Design) and scaled model test Frost protection: No risk of frost damage due to the use of stainless-steel type 316L Low NPSH: Smaller chance of cavitation and pump damage Low energy consumption: Savings of up to 85% possible compared to traditional pumps Efficient: Highly efficient at both low and high discharge heads and flows Dry running rotor technology: Compared to wet-running submerged motors, the dry-running rotor is superior in terms of efficiency and reliability, with no rotor blockages due to scale or solid particles Safety: Much safer than a wet runner (canned motor type), a submerged motor can result in motor voltage on the water. Impeller wearing seat: Non replaceable hardened seat for consistent performance over time and reduced operation cost Available spare parts: Replaceable spare parts Low vibration: Almost vibration-free due to high balancing and vibration dampers Mechanical seal: High performance shaft sealing with high-end mechanical seal Bearings: Heavy duty bearings, sealed and lifetime lubricated > maintenance free Docs Basic pump performance curve | FlowFriend Junior | HFP 70 NPSHr curve | FowFriend Junior | HFP 70 Dimension drawing | FlowFriend Junior | HFP 70 Exploded view | Flowfriend Junior | HFP 70 Section drawing with BOM | FlowFriend Junior | HFP 70

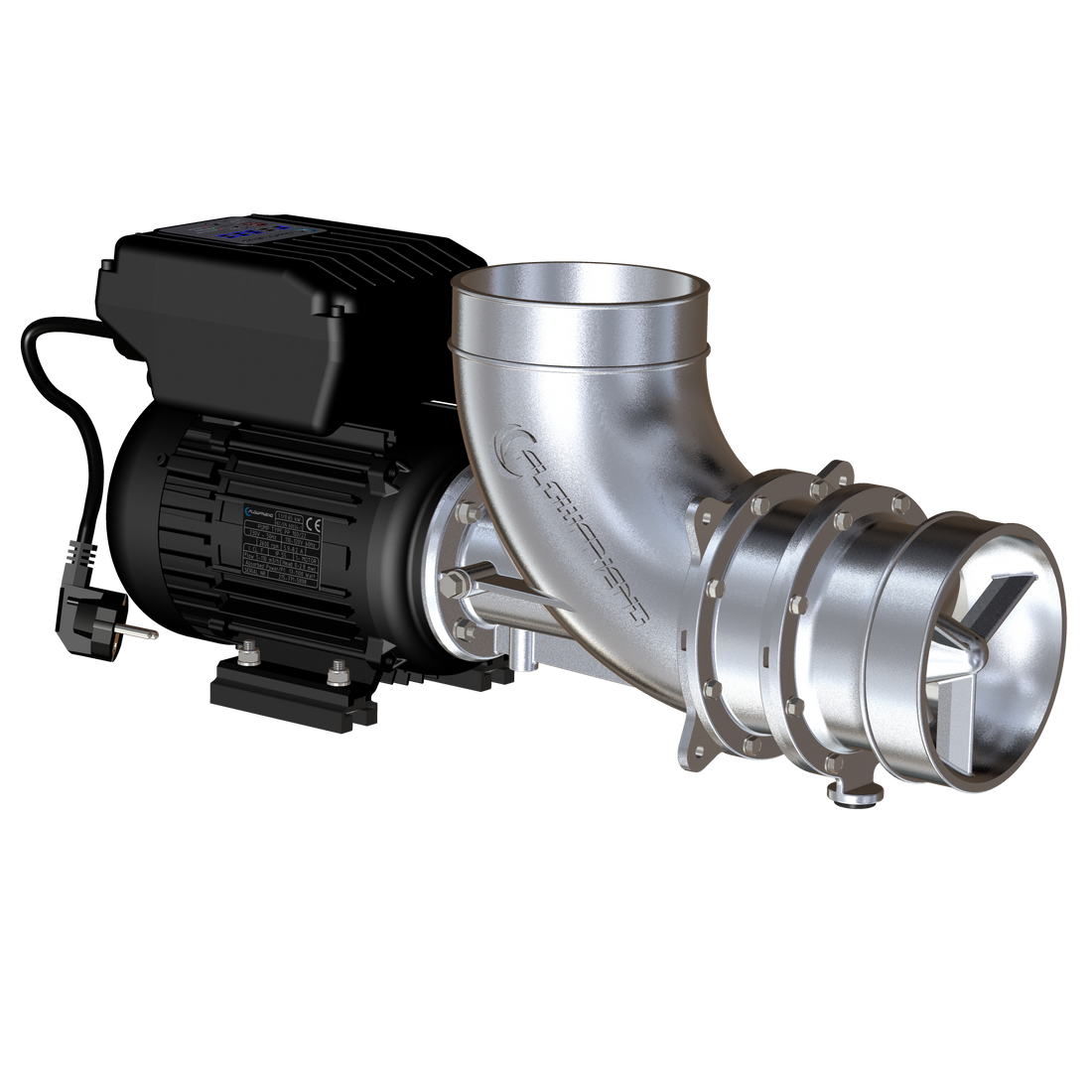

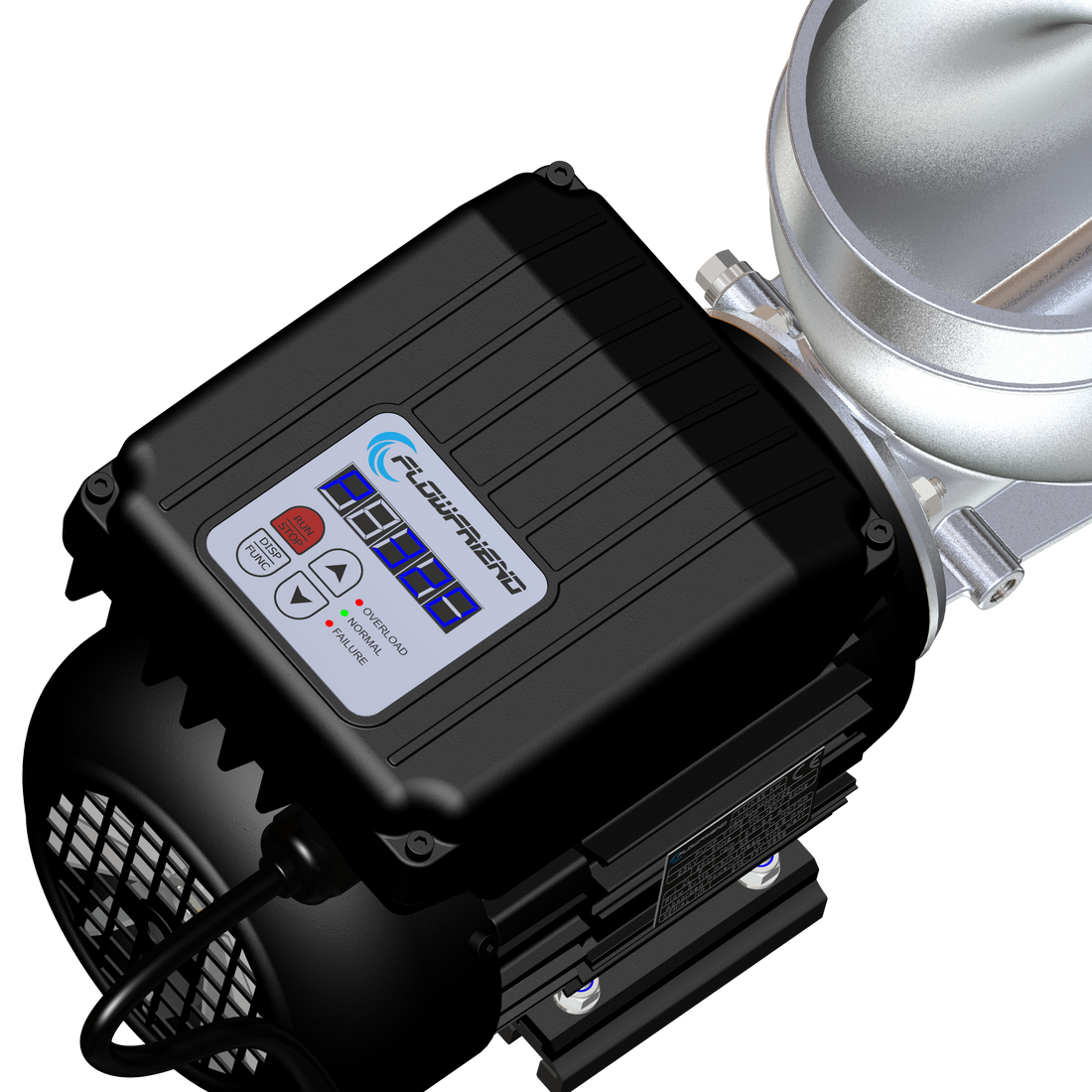

FlowFriend Pro | PP100/22 | FP.589089
High-efficient electronically controlled water pump that is built to last for a wide range of applications.The High-End FlowFriend Pro - PP 100/22 is a real powerhouse.Ahead of its time this pump is unbeatable in terms of proven performance, efficiency and reliability. Ingenious axial flow pump hydraulics makes these pumps able to pump high volumes of water with a low head but with very low power consumption. Built like a tank, with high-precision, lost-wax cast and machined stainless steel pump components for exceptional durability and performance. Pumping particles up to 8 mm without clogging goes effortlesslyThe pumps switch off automatically in the event of blockage, overheating, undervoltage preventing damage to the unit. This product is sustainable through replaceable parts, allowing for easy repairs and reducing environmental impact. The perfect choise where reliability is required. Proven technology with thousands of units already installed worldwide. Applications Industrial Applications Cooling Water / Heating HVAC: Water is used extensively in industries for cooling and heating purposes. In HVAC systems, water circulates through heat exchangers to maintain optimal temperatures. Cooling towers often rely on water circulation to dissipate heat. Water Supply: Industrial facilities rely on a steady supply of water for their operations, including process cooling, cleaning, and manufacturing. Pressure Increase: Water circulation systems are often used to increase pressure for industrial processes, such as in pumps or pressurized systems. Water Features Waterfalls, Streams, Fountains: In landscaping and decorative architecture, water circulation is used to power water features like waterfalls, streams, and fountains. These systems often rely on pumps to circulate water continuously. Sanitary Water Use Sanitary Water Systems: In residential or commercial buildings, water circulation ensures that sanitary water is delivered to faucets, showers, and toilets. Swimming Pools and swimming Ponds Swimming Pools: Water circulation in swimming pools helps maintain cleanliness and temperature. Filtration systems circulate the water through filters to remove debris, and pumps keep the water moving to avoid stagnation. Swimming Ponds: Similar to swimming pools, swimming ponds use circulation systems for water quality management. They often incorporate biological filters to maintain the ecosystem. Aeration Aeration Systems: Used in various applications like wastewater treatment or aquaculture, aeration ensures the water has enough oxygen to support aquatic life and promote microbial digestion of organic waste. Agriculture Water Circulation for Irrigation: In agriculture, water circulation is crucial for irrigation systems. It ensures water reaches plants evenly, whether through drip irrigation, sprinklers, or canals. Livestock and Zoos Water Circulation for Livestock: Livestock require fresh, clean water for hydration and health. Circulation systems help maintain water quality in troughs, tanks, and reservoirs.Keep the water in motion so that it doesn't freeze for livestock Zoos: In zoo environments, water circulation is often part of habitat design for animals that need aquatic environments, such as fish, amphibians, or aquatic mammals. Aquaculture Aquaculture Filtration Systems: Drum Filter: A rotating filter that captures particles from the water by using a mesh drum. Multi-chamber Filter: A filtration system with multiple chambers that can handle both mechanical and biological filtration to maintain water quality. Belt Filter / endless band filters: Used for continuous filtration of larger quantities of water, often employed in industrial-scale aquaculture systems. Fish Ponds Fishpond Circulation Systems: Maintaining water circulation in fishponds is essential to keep oxygen levels high and remove waste products. Aeration, filtration, and regular water movement are key components of pond management to ensure a healthy environment for fish. Aquaponics Aquaponics is a sustainable agricultural method that combines aquaculture (fish farming) and hydroponics (soil-less plant cultivation) in a closed-loop system. Fish waste provides organic nutrients for plants, while plants naturally filter and purify the water, which is recirculated back to the fish tank. This system conserves water, reduces the need for chemical fertilizers, and allows for the simultaneous production of both crops and fish, making it an efficient and environmentally friendly method of food production. These systems rely on pumps, filters, and often energy-efficient technology to ensure that water is continuously circulated, ensuring it stays clean, healthy, and properly managed for both industrial and recreational uses. Would you like to dive deeper into any of these specific applications? Don't hesitate and contact us. Specification PUMP Make: Stiloh Brandname: FlowFriend Pumptype: Pro - PP 100/22 (100mm impeller, blade angle 22 degree) Hydraulic: Axial flow type with diffuser Display: 7-digit blue letters Analog 0-10V signal: optional cable for external voltage for adjusted speed regulation Overheat protection: PT100 in motor winding Torque protection: 5 times restart after a rotor blockage Automatic restart: after power failure to prevent fish mortality Hour counter: Digital, cannot be reset Bearings: Lifetime greased, lifetime calculated on >100.000h Wearing: Replaceable (Inlet piece = Wearing) Power measurement: Absorbed power included in the software Failure: Normal, failure and overload LED MEI > 0.7: classed benchmark for the most efficient pumps in the market MOTOR Motor type: Electronically controlled Permanent Magnet Synchronous Motor (PMSM EC) - Sinewave back EMF (Not brushless DC - BLDC) P2 motor power: 1100W Degree of protection: IP55 Efficiency index: IE4+ Magnets: Neodymium Magnets (NdFeB magnets) Fan: Low noise type Voltage: 230V +/- 10% (115V on request) Frequency: 50 Hz (60Hz on request) Certification: CE Speed: 600-2600 rpm (higher speed on request) Bearrings: Heavy duty lifetime grease lubricated Buttons: Membrane keyboard EMC: Class B (Household, commercial and industrial use) Cable: Rubber, 5 meter, 230V Schuko (other type stecker on request) PERFORMANCE Capacity: Max. 110 m3/hour - adjustable from 5 - 110 m3/hour Head: Max. 7.2 m.w.c. - adjustable from 0.05 - 2.8 m.w.c. Speed: adjustable speed 600 - 2600 rpm Motor efficiency: 88-94% Controller efficiency: >98% Hydraulic efficiency: >84% Mechanical efficiency: >88% CONNECTIONS Discharge side: 125 mm outside diameter x 118 mm inside diameter Suction side: 125 mm outside diameter x 118 mm inside diameter Connection: Flexibele Fernco type coupling SHAFT SEAL Mechancial seal: Eagle Burgmann, E-MG1, A/ESIC-Q7VGG/Y10 Material stationairy seat: Silicon carbide Material rotary seat: Carbon Material elastomers: Fluor elastomer (Viton) Spring material: 1.4571 - Stainless steel 316 Ti MATERIALS Pump Elbow: 1.4408 - CF8M - Cast stainless steel 316L Pump Diffuser: 1.4408 - CF8M - Cast stainless steel 316L Impeller: 1.4408 - CF8M - Cast stainless steel 316L Impeller nut: 1.4408 - CF8M - Cast stainless steel 316L Inlet Piece / wearing: 1.4408 - CF8M - Cast stainless steel 316L Elastomers: NBR 70 shore / Elastomers mechanical seal Viton E-Motor: Aluminium Mechanical seal: A/ESIC-Q7VGG/Y10 Impeller key: 1.4571 - Stainless steel 316 Ti Extended motorshaft: Stainless steel 1.4122 TEST Hydrostatic test: 1.0 bar / 2 hours Performance test: According ISO 9906 - class C PMI test: Positive Material Indentification (PMI test) Runout test: Runout test pump rotor Balancing pump impeller: Quality according DIN ISO 1940-1 Grade G2.5 Features Highly efficient: PMSM motor and high-tech hydraulics, very high efficiency even on low speeds Low noise fan: Extreme quietly operation Precision casted Stainless steel: Robust, no bending due to tension in the piping Easy control: By display or external devices using optional accessories. Built to last Optimized hydraulics: Using state of art CFD (Computed Fluid Design) and scaled model test Frost protection: No risk of frost damage due to the use of stainless-steel type 316L Low NPSH: Smaller chance of cavitation and pump damage Low energy consumption: Savings of up to 85% possible compared to traditional pumps Efficient: Highly efficient at both low and high discharge heads and flows Dry running rotor technology: Compared to wet-running submerged motors, the dry-running rotor is superior in terms of efficiency and reliability, with no rotor blockages due to scale or solid particles Safety: Much safer than a wet runner (canned motor type), a submerged motor can result in motor voltage on the water. Impeller wearing: Replaceable wearing for consistent performance over time and reduced operation cost Available spare parts: Replaceable spare parts Low vibration: Almost vibration-free due to high balancing and vibration dampers Mechanical seal: High performance shaft sealing with high-end mechanical seal Bearings: Heavy duty bearings, sealed and lifetime lubricated > maintenance free Docs Basic pump performance curve | FlowFriend Pro | PP 100/22 Dimension drawing | FlowFriend Pro | PP 100/22 Exploded view | Flowfriend Pro | PP 100/22 Section drawing with BOM | FlowFriend Pro | PP 100/22
FlowFriend Standard | HFP 90 | FP.589088
High-efficient electronically controlled water pump that is built to last for a wide range of applications.The High-End FlowFriend Standard - HFP 90 is a real powerhouse.Ahead of its time this pump is unbeatable in terms of proven performance, efficiency and reliability. Ingenious mixed flow pump hydraulics makes these pumps able to pump high volumes of water with an average head but with very low power consumption. Built like a tank, with high-precision, lost-wax cast and machined stainless steel pump components for exceptional durability and performance. Pumping particles up to 6 mm without clogging goes effortlesslyThe pumps switch off automatically in the event of blockage, overheating, undervoltage preventing damage to the unit. This product is sustainable through replaceable parts, allowing for easy repairs and reducing environmental impact. The perfect choise where reliability is required. Proven technology with thousands of units already installed worldwide. Applications Industrial Applications Cooling Water / Heating HVAC: Water is used extensively in industries for cooling and heating purposes. In HVAC systems, water circulates through heat exchangers to maintain optimal temperatures. Cooling towers often rely on water circulation to dissipate heat. Water Supply: Industrial facilities rely on a steady supply of water for their operations, including process cooling, cleaning, and manufacturing. Pressure Increase: Water circulation systems are often used to increase pressure for industrial processes, such as in pumps or pressurized systems. Water Features Waterfalls, Streams, Fountains: In landscaping and decorative architecture, water circulation is used to power water features like waterfalls, streams, and fountains. These systems often rely on pumps to circulate water continuously. Sanitary Water Use Sanitary Water Systems: In residential or commercial buildings, water circulation ensures that sanitary water is delivered to faucets, showers, and toilets. Swimming Pools and swimming Ponds Swimming Pools: Water circulation in swimming pools helps maintain cleanliness and temperature. Filtration systems circulate the water through filters to remove debris, and pumps keep the water moving to avoid stagnation. Swimming Ponds: Similar to swimming pools, swimming ponds use circulation systems for water quality management. They often incorporate biological filters to maintain the ecosystem. Aeration Aeration Systems: Used in various applications like wastewater treatment or aquaculture, aeration ensures the water has enough oxygen to support aquatic life and promote microbial digestion of organic waste. Agriculture Water Circulation for Irrigation: In agriculture, water circulation is crucial for irrigation systems. It ensures water reaches plants evenly, whether through drip irrigation, sprinklers, or canals. Livestock and Zoos Water Circulation for Livestock: Livestock require fresh, clean water for hydration and health. Circulation systems help maintain water quality in troughs, tanks, and reservoirs. Zoos: In zoo environments, water circulation is often part of habitat design for animals that need aquatic environments, such as fish, amphibians, or aquatic mammals. Aquaculture Aquaculture Filtration Systems: Bead Filter: A type of mechanical filtration used in aquaculture to remove suspended solids. Trickle Filter: A biological filter that provides a large surface area for beneficial bacteria to grow, converting toxic substances like ammonia into less harmful compounds. Drum Filter: A rotating filter that captures particles from the water by using a mesh drum. Multi-chamber Filter: A filtration system with multiple chambers that can handle both mechanical and biological filtration to maintain water quality. Belt Filter: Used for continuous filtration of larger quantities of water, often employed in industrial-scale aquaculture systems. Fish Ponds Fishpond Circulation Systems: Maintaining water circulation in fishponds is essential to keep oxygen levels high and remove waste products. Aeration, filtration, and regular water movement are key components of pond management to ensure a healthy environment for fish. Aquaponics Aquaponics is a sustainable agricultural method that combines aquaculture (fish farming) and hydroponics (soil-less plant cultivation) in a closed-loop system. Fish waste provides organic nutrients for plants, while plants naturally filter and purify the water, which is recirculated back to the fish tank. This system conserves water, reduces the need for chemical fertilizers, and allows for the simultaneous production of both crops and fish, making it an efficient and environmentally friendly method of food production. These systems rely on pumps, filters, and often energy-efficient technology to ensure that water is continuously circulated, ensuring it stays clean, healthy, and properly managed for both industrial and recreational uses. Would you like to dive deeper into any of these specific applications? Don't hesitate and contact us. Specification PUMP Make: Stiloh Brandname: FlowFriend Pumptype: Standard - HFP 90 Hydraulic: Mixed flow type Display: 7-digit blue letters Analog 0-10V signal: optional cable for external voltage for adjusted speed regulation Overheat protection: PT100 in motor winding Torque protection: 5 times restart after a rotor blockage Automatic restart: after power failure to prevent fish mortality Hour counter: Digital, cannot be reset Bearings: Lifetime greased, lifetime calculated on >100.000h Wearing: Replaceable Power measurement: Absorbed power included in the software Failure: Normal, failure and overload LED MEI > 0.7: classed benchmark for the most efficient pumps in the market MOTOR Motor type: Electronically controlled Permanent Magnet Synchronous Motor (PMSM EC) - Sinewave back EMG (Not brushless DC - BLDC) P1 motor power: 740 W P2 motor power: 629 W Degree of protection: IP55 Efficiency index: IE4+ Magnets: Neodymium Magnets (NdFeB magnets) Fan: Low noise type Voltage: 230V +/- 10% (115V on request) Frequency: 50 Hz (60Hz on request) Certification: CE Speed: 600-2600 rpm (higher speed on request) Bearrings: Heavy duty lifetime grease lubricated Buttons: Membrane keyboard EMC: Class B (Household, commercial and industrial use) Cable: Rubber, 5 meter, 230V Schuko (other type stecker on request) PERFORMANCE Capacity: Max. 70 m3/hour - adjustable from 3 - 70 m3/hour Head: Max. 7.2 m.w.c. - adjustable from 0.1 - 7.2 m.w.c. Speed: adjustable speed 600 - 2600 rpm Motor efficiency: 88-94% Controller efficiency: >98% Hydraulic efficiency: >87% Mechanical efficiency: >88% CONNECTIONS Discharge side: G3" x L=20mm threaded connection Suction side: G3" x L=20mm threaded connection SHAFT SEAL Mechancial seal: Eagle Burgmann, E-MG1, A/ESIC-Q7VGG/Y10 Material stationairy seat: Silicon carbide Material rotary seat: Carbon Material elastomers: Fluor elastomer (Viton) Spring material: 1.4571 - Stainless steel 316 Ti MATERIALS Pump casing: 1.4408 - CF8M - Cast stainless steel 316L Pump cover: 1.4408 - CF8M - Cast stainless steel 316L Impeller: 1.4408 - CF8M - Cast stainless steel 316L Impeller nut: 1.4408 - CF8M - Cast stainless steel 316L Wearring: Replaceable - wear resistant filled carbon Elastomers: O-Rings NBR 70 shore, Elastomers mechanical seal Viton E-Motor: Aluminium Mechanical seal: A/ESIC-Q7VGG/Y10 Impeller key: 1.4571 - Stainless steel 316 Ti Extended motorshaft: Stainless steel 1.4122 TEST Hydrostatic test: 1.5 bar / 2 hours Performance test: According ISO 9906 - class C PMI test: Positive Material Indentification (PMI test) Runout test: Runout test pump rotor Balancing pump impeller: Quality according DIN ISO 1940-1 Grade G2.5 Features Highly efficient: PMSM motor and high-tech hydraulics, very high efficiency even on low speeds Low noise fan: Extreme quietly operation Precision casted Stainless steel: Robust, no bending due to tension in the piping Easy control: By display or external devices using optional accessories. Built to last Optimized hydraulics: Using state of art CFD (Computed Fluid Design) and scaled model test Frost protection: No risk of frost damage due to the use of stainless-steel type 316L Low NPSH: Smaller chance of cavitation and pump damage Low energy consumption: Savings of up to 85% possible compared to traditional pumps Efficient: Highly efficient at both low and high discharge heads and flows Dry running rotor technology: Compared to wet-running submerged motors, the dry-running rotor is superior in terms of efficiency and reliability, with no rotor blockages due to scale or solid particles Safety: Much safer than a wet runner (canned motor type), a submerged motor can result in motor voltage on the water. Impeller wearing: Replaceable filled carbon wearing for consistent performance over time and reduced operation cost Available spare parts: Replaceable spare parts Low vibration: Almost vibration-free due to high balancing and vibration dampers Mechanical seal: High performance shaft sealing with high-end mechanical seal Bearings: Heavy duty bearings, sealed and lifetime lubricated > maintenance free Docs Basic pump performance curve | FlowFriend Standard | HFP 90 Detailed pump performance curve | FlowFriend Standard | HFP 90 NPSHr curve | FlowFriend Standard | HFP 90 Dimension drawing | FlowFriend Standard | HFP90 Exploded view | Flowfriend Standard | HFP 90 Section drawing with BOM | FlowFriend Standard | HFP 90
FlowFriend | Prime 100 | FP.589106
Newest generation, ultra high-efficient, electronically controlled water pump with unmatched efficiency, flow and cavitation properties that is built to last for a wide range of applications.The High-End FlowFriend Prime 100 is a real powerhouse.Ahead of its time this pump is unbeatable in terms of proven performance, efficiency and reliability. Ingenious mixed flow pump hydraulics makes these pumps able to pump high volumes of water with an average head but with very low power consumption. Built like a tank, with high-precision, lost-wax cast and machined stainless steel pump components for exceptional durability and performance. Pumping particles up to 8 mm without clogging goes effortlesslyThe pumps switch off automatically in the event of blockage, overheating, undervoltage preventing damage to the unit. This product is sustainable through replaceable parts, allowing for easy repairs and reducing environmental impact. The perfect choise where reliability is required. FlowFriend's proven technology with thousands of units already installed worldwide. Applications Industrial Applications Cooling Water / Heating HVAC: Water is used extensively in industries for cooling and heating purposes. In HVAC systems, water circulates through heat exchangers to maintain optimal temperatures. Cooling towers often rely on water circulation to dissipate heat. Water Supply: Industrial facilities rely on a steady supply of water for their operations, including process cooling, cleaning, and manufacturing. Pressure Increase: Water circulation systems are often used to increase pressure for industrial processes, such as in pumps or pressurized systems. Water Features Waterfalls, Streams, Fountains: In landscaping and decorative architecture, water circulation is used to power water features like waterfalls, streams, and fountains. These systems often rely on pumps to circulate water continuously. Sanitary Water Use Sanitary Water Systems: In residential or commercial buildings, water circulation ensures that sanitary water is delivered to faucets, showers, and toilets. Swimming Pools and swimming Ponds Swimming Pools: Water circulation in swimming pools helps maintain cleanliness and temperature. Filtration systems circulate the water through filters to remove debris, and pumps keep the water moving to avoid stagnation. Swimming Ponds: Similar to swimming pools, swimming ponds use circulation systems for water quality management. They often incorporate biological filters to maintain the ecosystem. Aeration Aeration Systems: Used in various applications like wastewater treatment or aquaculture, aeration ensures the water has enough oxygen to support aquatic life and promote microbial digestion of organic waste. Agriculture Water Circulation for Irrigation: In agriculture, water circulation is crucial for irrigation systems. It ensures water reaches plants evenly, whether through drip irrigation, sprinklers, or canals. Livestock and Zoos Water Circulation for Livestock: Livestock require fresh, clean water for hydration and health. Circulation systems help maintain water quality in troughs, tanks, and reservoirs. Zoos: In zoo environments, water circulation is often part of habitat design for animals that need aquatic environments, such as fish, amphibians, or aquatic mammals. Aquaculture Aquaculture Filtration Systems: Bead Filter: A type of mechanical filtration used in aquaculture to remove suspended solids. Trickle Filter: A biological filter that provides a large surface area for beneficial bacteria to grow, converting toxic substances like ammonia into less harmful compounds. Drum Filter: A rotating filter that captures particles from the water by using a mesh drum. Multi-chamber Filter: A filtration system with multiple chambers that can handle both mechanical and biological filtration to maintain water quality. Belt Filter: Used for continuous filtration of larger quantities of water, often employed in industrial-scale aquaculture systems. Fish Ponds Fishpond Circulation Systems: Maintaining water circulation in fishponds is essential to keep oxygen levels high and remove waste products. Aeration, filtration, and regular water movement are key components of pond management to ensure a healthy environment for fish. Aquaponics Aquaponics is a sustainable agricultural method that combines aquaculture (fish farming) and hydroponics (soil-less plant cultivation) in a closed-loop system. Fish waste provides organic nutrients for plants, while plants naturally filter and purify the water, which is recirculated back to the fish tank. This system conserves water, reduces the need for chemical fertilizers, and allows for the simultaneous production of both crops and fish, making it an efficient and environmentally friendly method of food production. These systems rely on pumps, filters, and often energy-efficient technology to ensure that water is continuously circulated, ensuring it stays clean, healthy, and properly managed for both industrial and recreational uses. Would you like to dive deeper into any of these specific applications? Don't hesitate and contact us. Specification PUMP Make: Stiloh Brandname: FlowFriend Pumptype: Prime 100 Hydraulic: Combined Mixed / Radial flow type Display: 7-digit blue letters Analog 0-10V signal: optional cable for external voltage for adjusted speed regulation Overheat protection: PT100 in motor winding Torque protection: 5 times restart after a rotor blockage Automatic restart: after power failure to prevent fish mortality Hour counter: Digital, cannot be reset Bearings: Lifetime greased, lifetime calculated on >100.000h Power measurement: Absorbed power included in the software Failure: Normal, failure and overload LED MEI > 0.7: classed benchmark for the most efficient pumps in the market MOTOR Motor type: Electronically controlled Permanent Magnet Synchronous Motor (PMSM EC) - Sinewave back EMG (Not brushless DC - BLDC) P1 motor power: 1225 W P2 motor power: 1040 W Degree of protection: IP55 Efficiency index: IE4+ Magnets: Neodymium Magnets (NdFeB magnets) Fan: Low noise type Voltage: 230V +/- 10% (115V on request) Frequency: 50 Hz (60Hz on request) Certification: CE Speed: 600-2600 rpm (higher speed on request) Bearrings: Heavy duty lifetime grease lubricated Buttons: Membrane keyboard EMC: Class B (Household, commercial and industrial use) Cable: Rubber, 5 meter, 230V Schuko (other type stecker on request) PERFORMANCE Capacity: Max. 100 m3/hour - adjustable from 3 - 100 m3/hour Head: Max. 9.6 m.w.c. - adjustable from 0.1 - 9.6 m.w.c. Speed: adjustable speed 600 - 2600 rpm Motor efficiency: 88-94% Controller efficiency: >98% Hydraulic efficiency: >90,5% Mechanical efficiency: >88% CONNECTIONS Discharge side: G4" x L=27.5mm threaded connection (110mm) Suction side: G3" x L=20mm threaded connection (90mm) SHAFT SEAL Mechancial seal: Eagle Burgmann, E-MG1, A/ESIC-Q7VGG/Y10 Material stationairy seat: Silicon carbide Material rotary seat: Carbon Material elastomers: Fluor elastomer (Viton) Spring material: 1.4571 - Stainless steel 316 Ti MATERIALS Pump casing: 1.4408 - CF8M - Cast stainless steel 316L Pump cover: 1.4408 - CF8M - Cast stainless steel 316L Impeller: 1.4408 - CF8M - Cast stainless steel 316L Impeller nut: 1.4408 - CF8M - Cast stainless steel 316L Elastomers: O-Rings NBR 70 shore, Elastomers mechanical seal Viton E-Motor: Aluminium Mechanical seal: A/ESIC-Q7VGG/Y10 Impeller key: 1.4571 - Stainless steel 316 Ti Extended motorshaft: Stainless steel 1.4122 TEST Hydrostatic test: 1.5 bar / 2 hours Performance test: According ISO 9906 - class C PMI test: Positive Material Indentification (PMI test) Runout test: Runout test pump rotor Balancing pump impeller: Quality according DIN ISO 1940-1 Grade G2.5 Features Highly efficient: PMSM motor and high-tech hydraulics, very high efficiency even on low speeds Low noise fan: Extreme quietly operation Precision casted Stainless steel: Robust, no bending due to tension in the piping Easy control: By display or external devices using optional accessories. Built to last Optimized hydraulics: Using state of art CFD (Computed Fluid Design) and scaled model test Frost protection: No risk of frost damage due to the use of stainless-steel type 316L Ultra low NPSH: Smaller chance of cavitation and pump damage Low energy consumption: Savings of up to 85% possible compared to traditional pumps Efficient: Highly efficient at both low and high discharge heads and flows Dry running rotor technology: Compared to wet-running submerged motors, the dry-running rotor is superior in terms of efficiency and reliability, with no rotor blockages due to scale or solid particles Safety: Much safer than a wet runner (canned motor type), a submerged motor can result in motor voltage on the water. Available spare parts: Replaceable spare parts Low vibration: Almost vibration-free due to high balancing and vibration dampers Mechanical seal: High performance shaft sealing with high-end mechanical seal Bearings: Heavy duty bearings, sealed and lifetime lubricated > maintenance free Docs Basic pump performance curve | FlowFriend | Prime 100 Detailed performance curve | FlowFriend | Prime 100 NPSHr curve | FlowFriend | Prime 100 Dimension drawing | FlowFriend | Prime 100 Exploded view with BOM | FlowFriend | Prime 100 Section drawing with BOM | FlowFriend | Prime 100 Partslist | BOM | FlowFriend | Prime 100 Operation manual | FlowFriend | Prime 100 Optional Analog Input | 0-10V

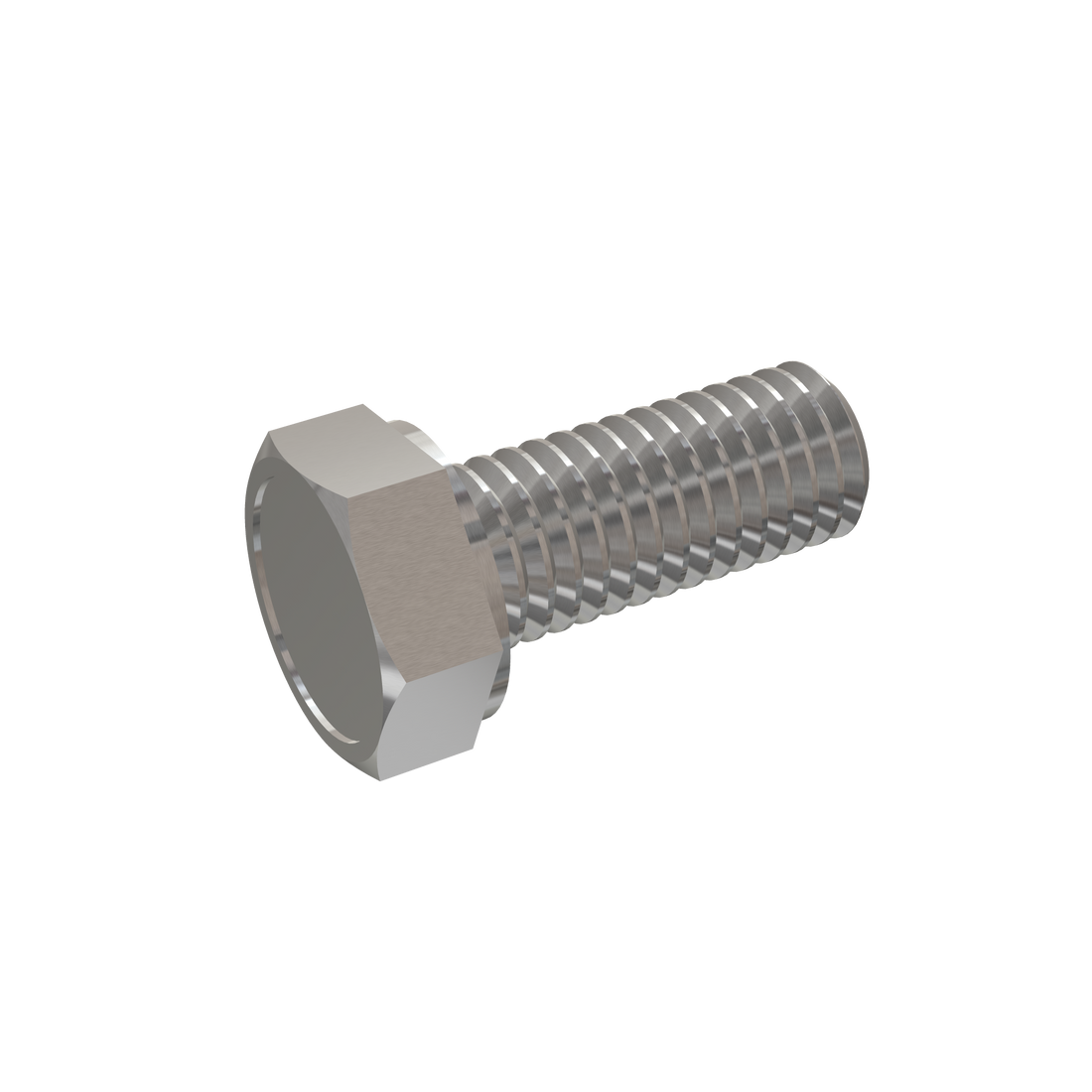

Hexagon bolt | DIN 933 - M5x12 | FP.589055
: Hexagon bolt Standard: DIN 933 Dimensions: M5x12 Material: Stainless steel A4

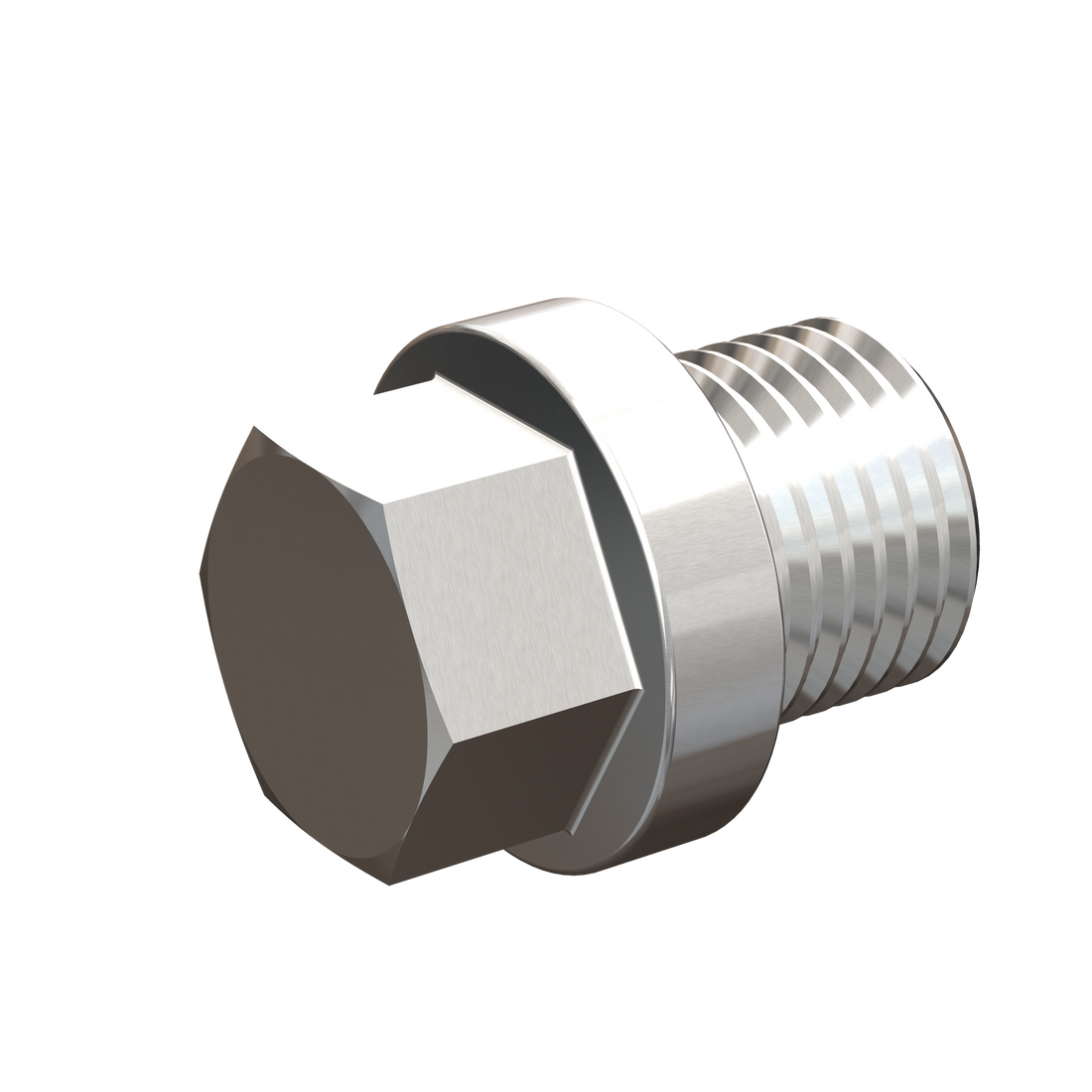

Hexagon head screw plug | DIN 910 - G1/8" | FP.589054
: Hexagon head screw plug Standard: DIN 910 Dimensions: G 1/8" Material: Stainless steel A4

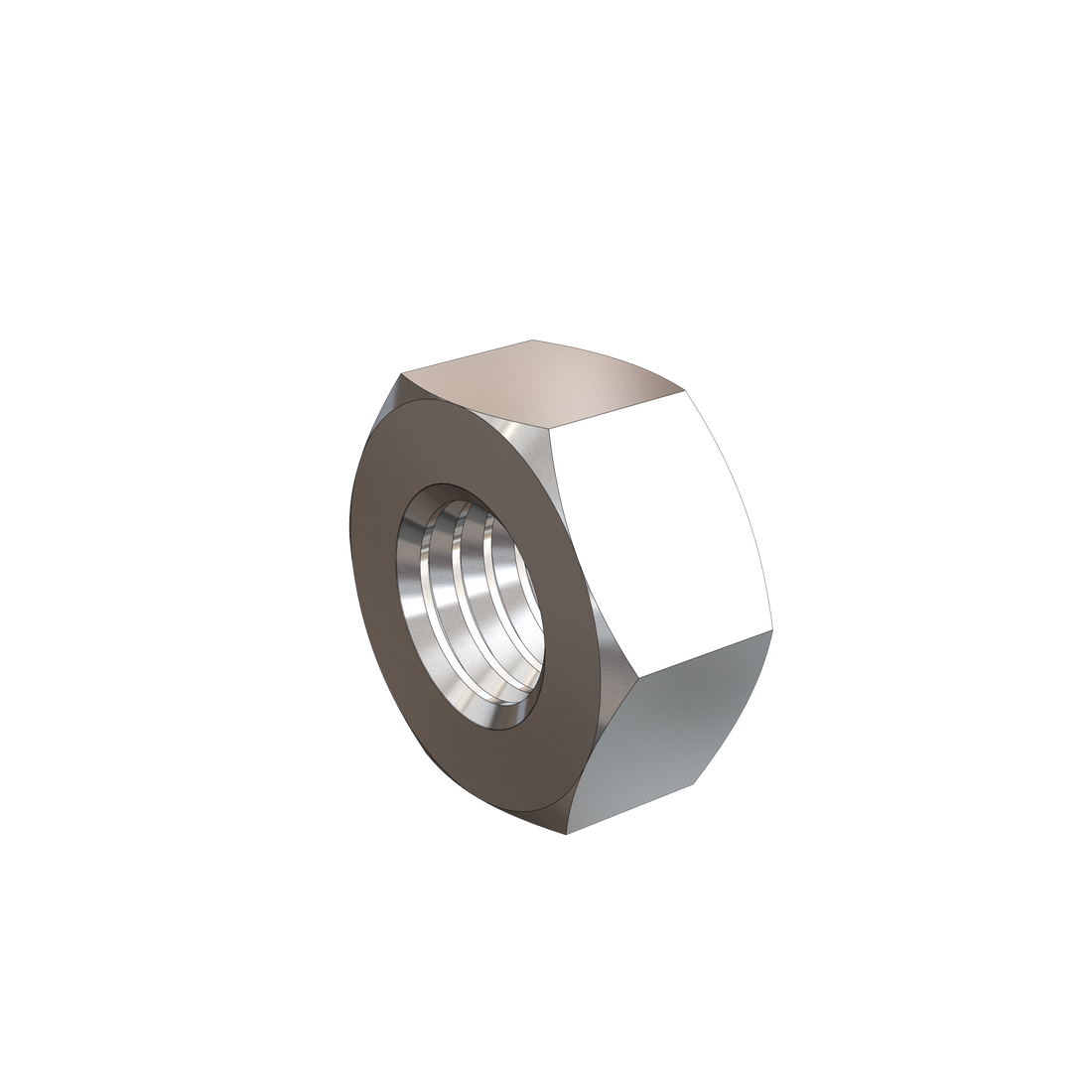

Hexagon nut | DIN 934 - M6 | FP.589052
: Hexagon nut Standard: DIN 934 Dimensions: M6 Material: Stainless steel A4

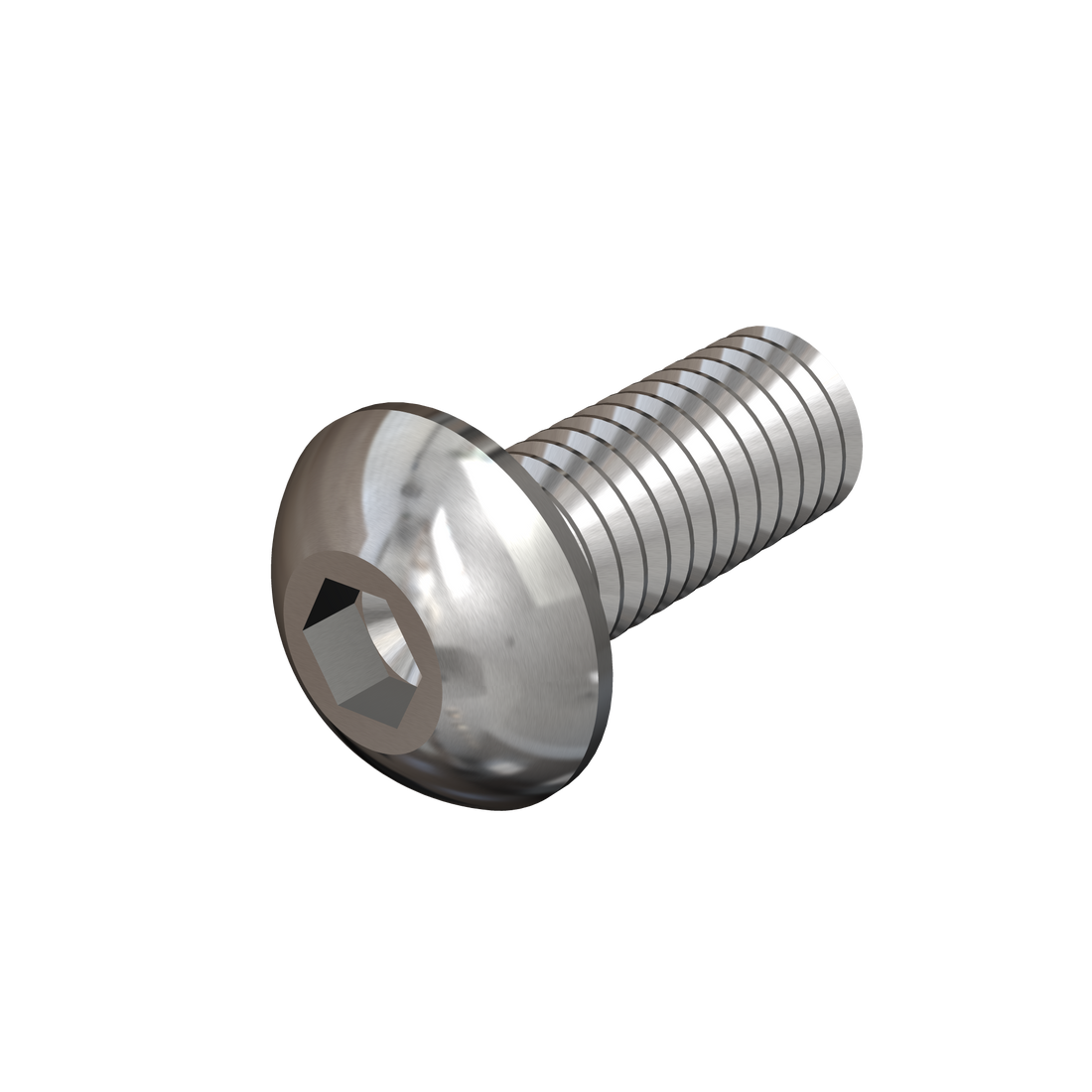

Hexagon socket button head screw | FP.589045
: Hexagon socket button head screw Standard: ISO 7380 Dimensions: M4x10 Material: Stainless steel A2

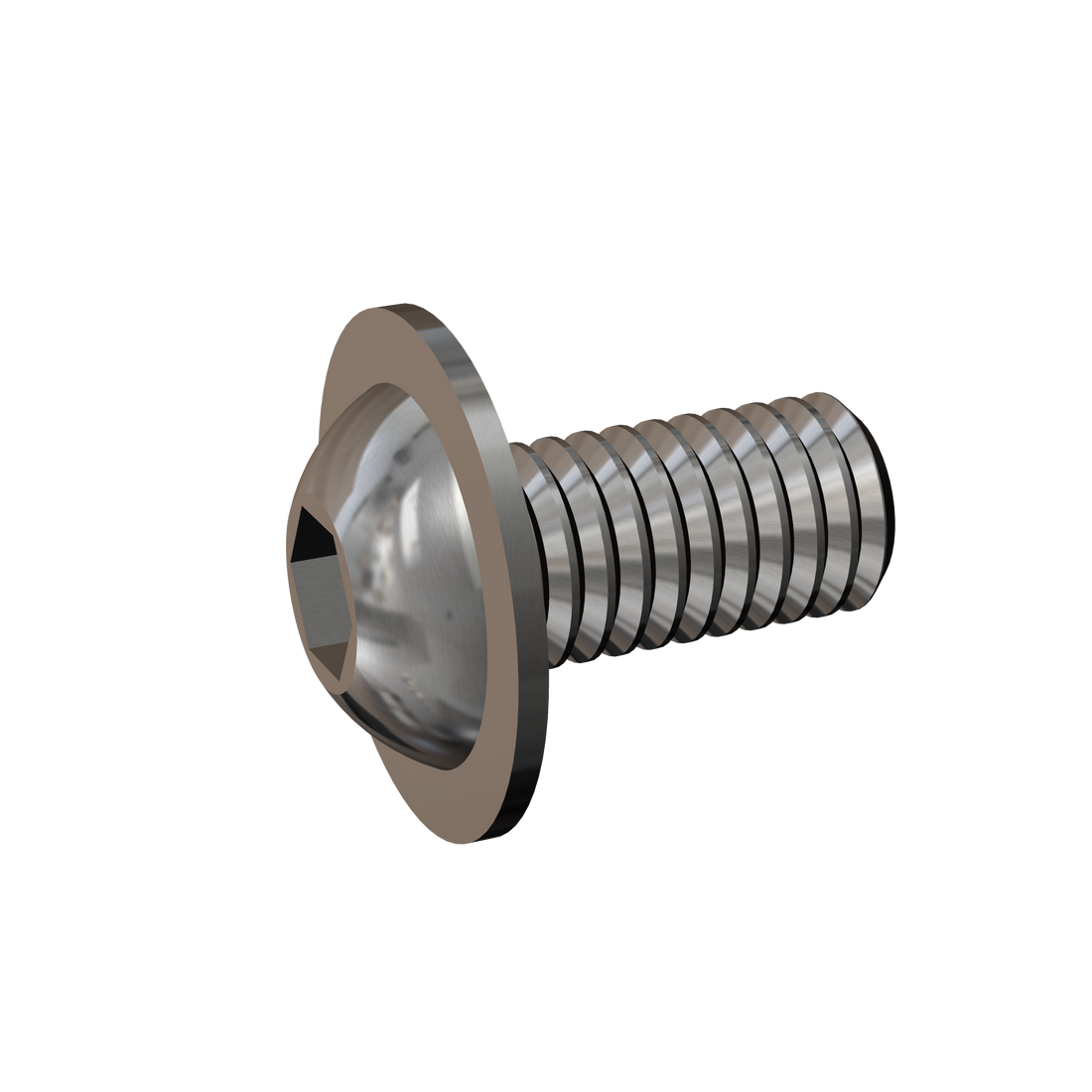

Hexagon socket button head screw | FP.589046
: Hexagon socket button head screw Standard: ISO 7380-2 Dimension: M6x12 Material: Stainless steel A2

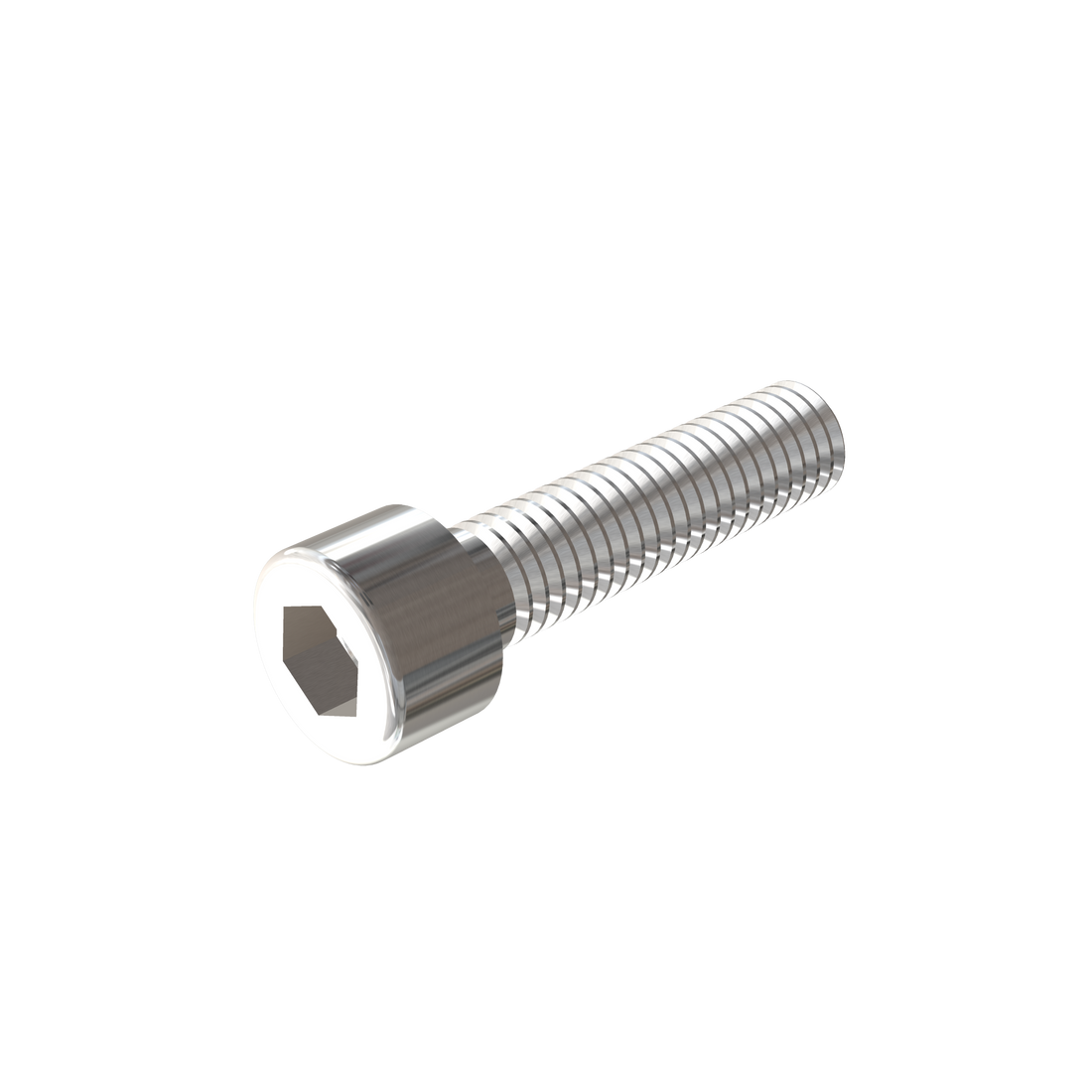

Hexagon socket head screw | DIN 912 - M6x25 | FP.589050
: Hexagon Socket Head Screw Standard: DIN 912 Dimensions: M6x25 Material: Stainless steel A2

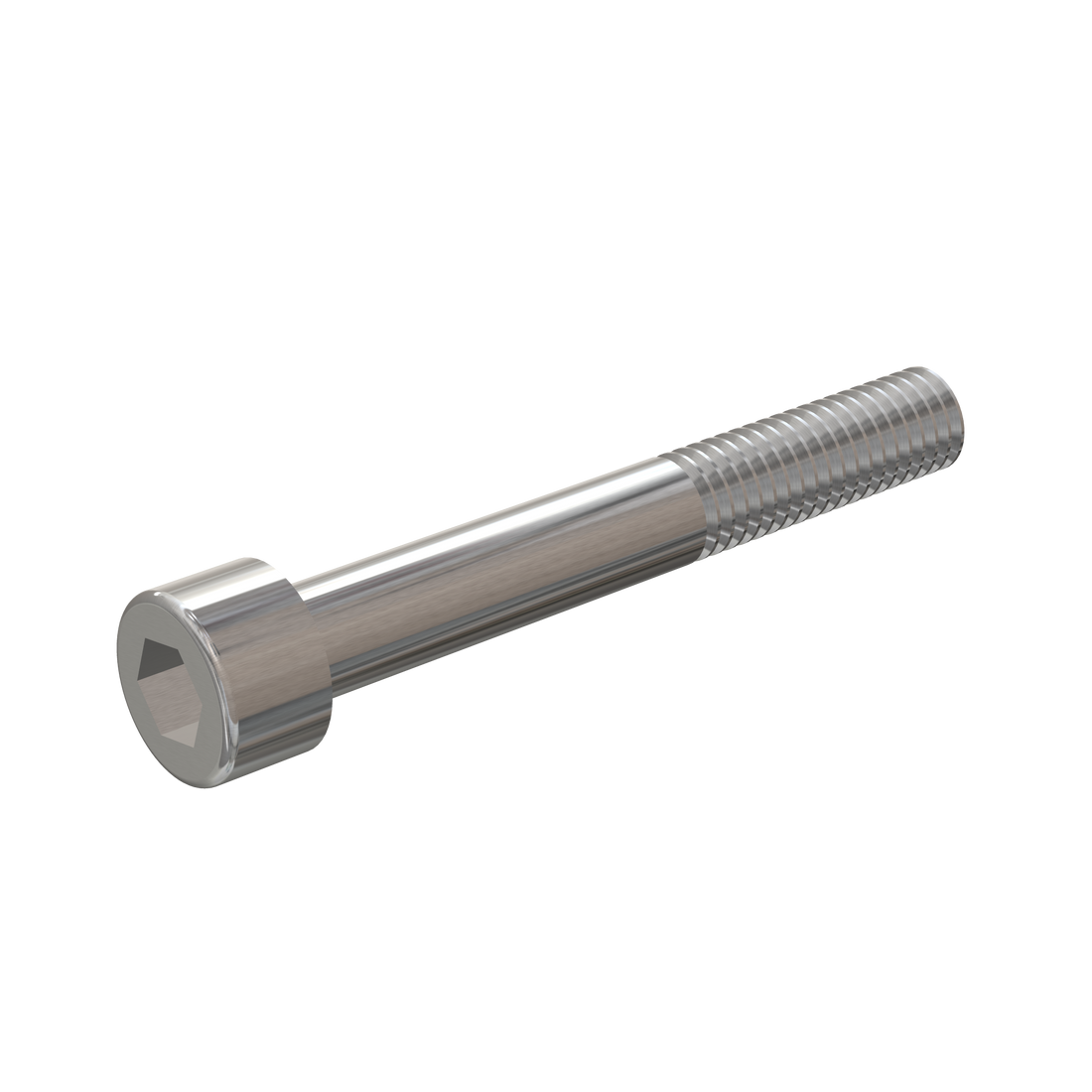

Hexagon socket head screw | DIN 912 - M6x45 | FP.589051
: Hexagon Socket Head Screw Standard: DIN 912 Dimensions: M6x45 Material: Stainless steel A2

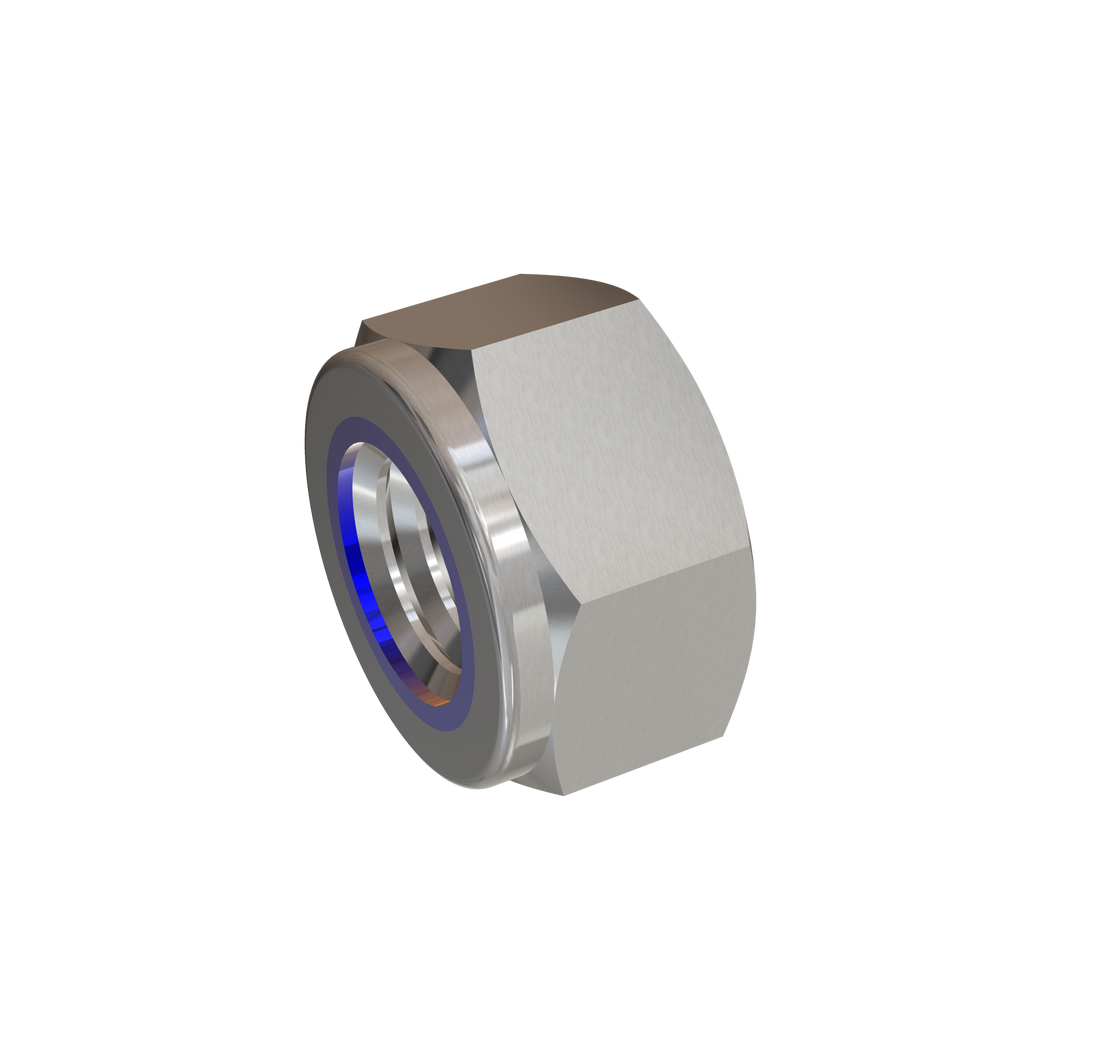

Hexagon torque type nut | DIN 985 - M6 | FP.589053
: Prevailing Hexagon torque type Nut - Self locking Standard: DIN 985 Dimensions: M6 Material: Stainless steel A4 / Nylon

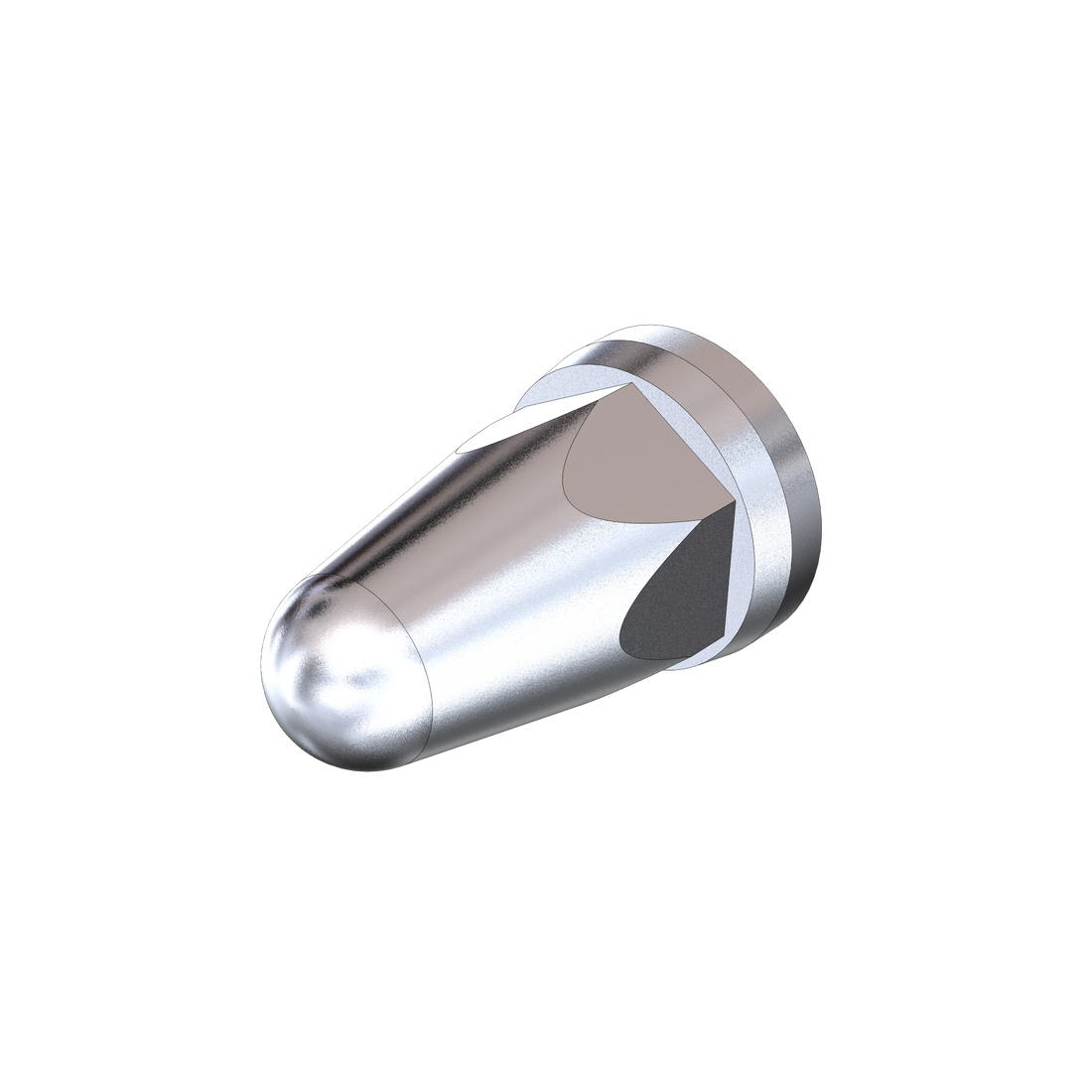

Impeller nut | FlowFriend - Junior - HFP 70 | FP.589035
: Impeller nutMake: FlowFriendType: Junior - HFP 70 Material: Cast stainless steel 1.4408 (CF8M)
Impeller nut | Standard, Pro, Junior | FP.589040
: Impeller nutMake: FlowFriendType: Standard, Pro, HPN Material: Cast stainless steel 1.4408 (CF8M) Flowfriend types:Standard - HFP 90Pro - PP 100/22HP - HPN 110

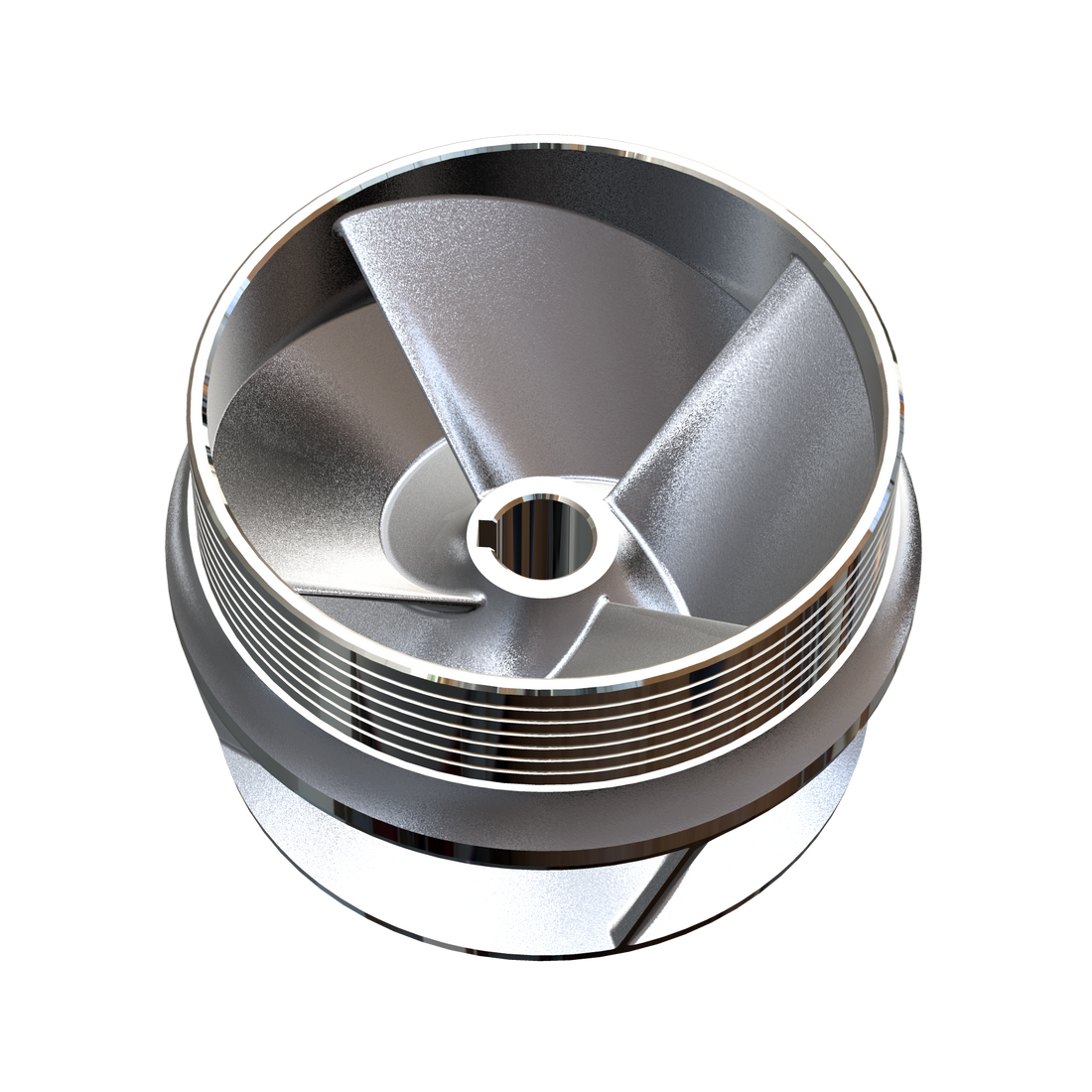

Impeller | FlowFriend - Standard - HFP 90 | FP.589036
: ImpellerMake: FlowFriendType: Standard - HFP 90 Material: Cast stainless steel 1.4408 (CF8M)

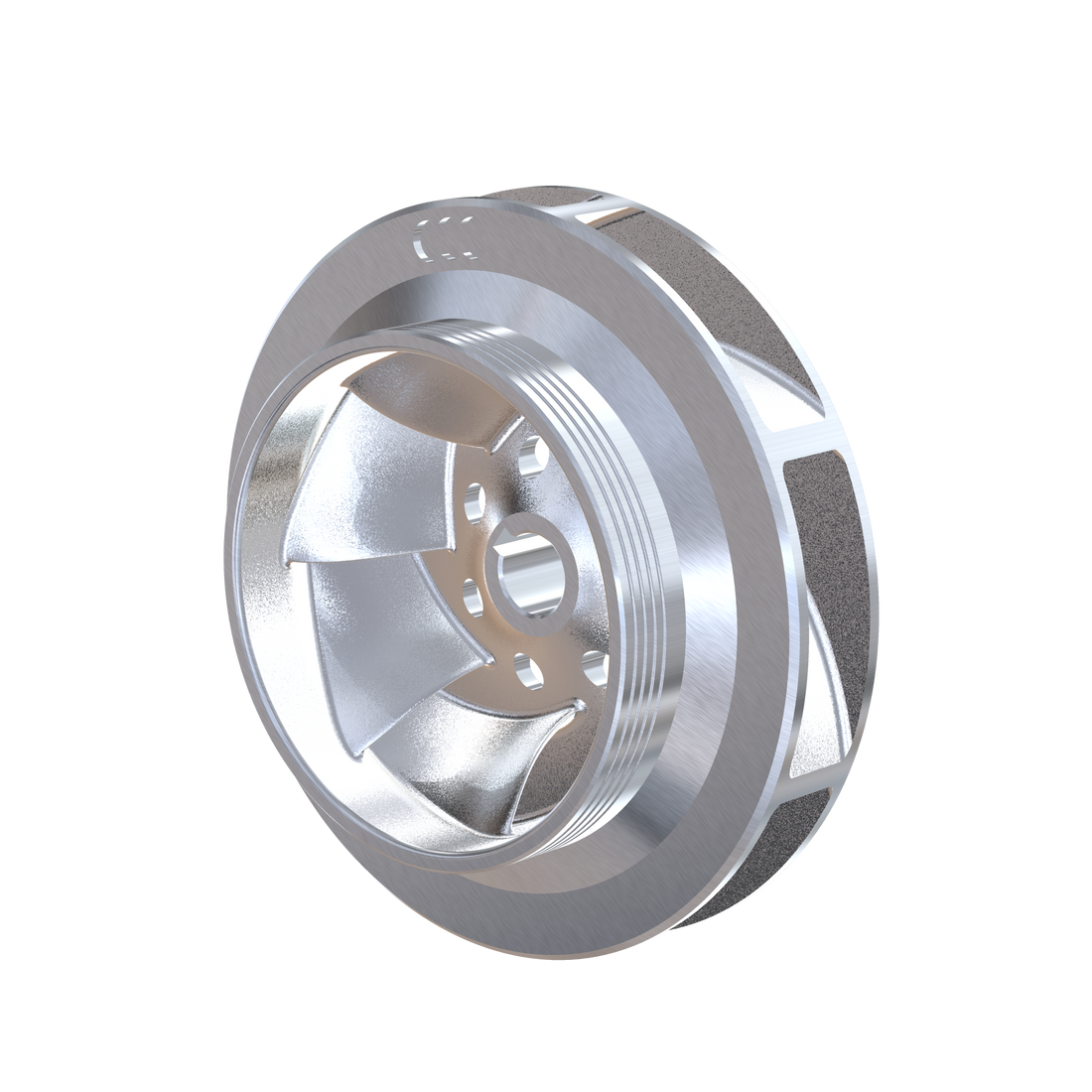

Impeller | FlowFriend HPN 110 | FP.589093
: ImpellerMake: FlowFriendType: HPN 110Material: Cast stainless steel 1.4408 (CF8M)

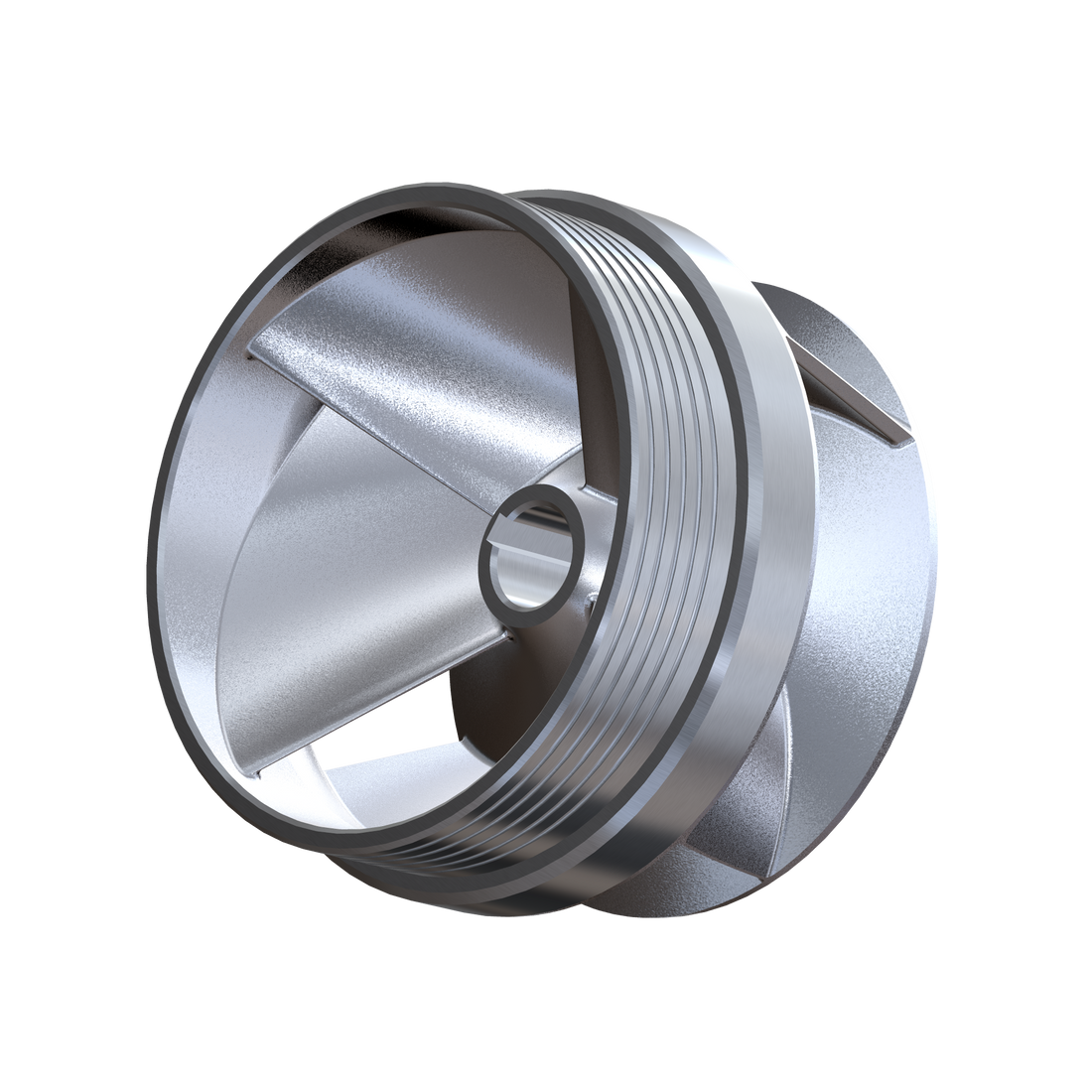

Impeller | FlowFriend Junior - HFP 70 | FP.589031
: ImpellerMake: FlowFriendType: Junior - HFP 70 Material: Cast stainless steel 1.4408 (CF8M)

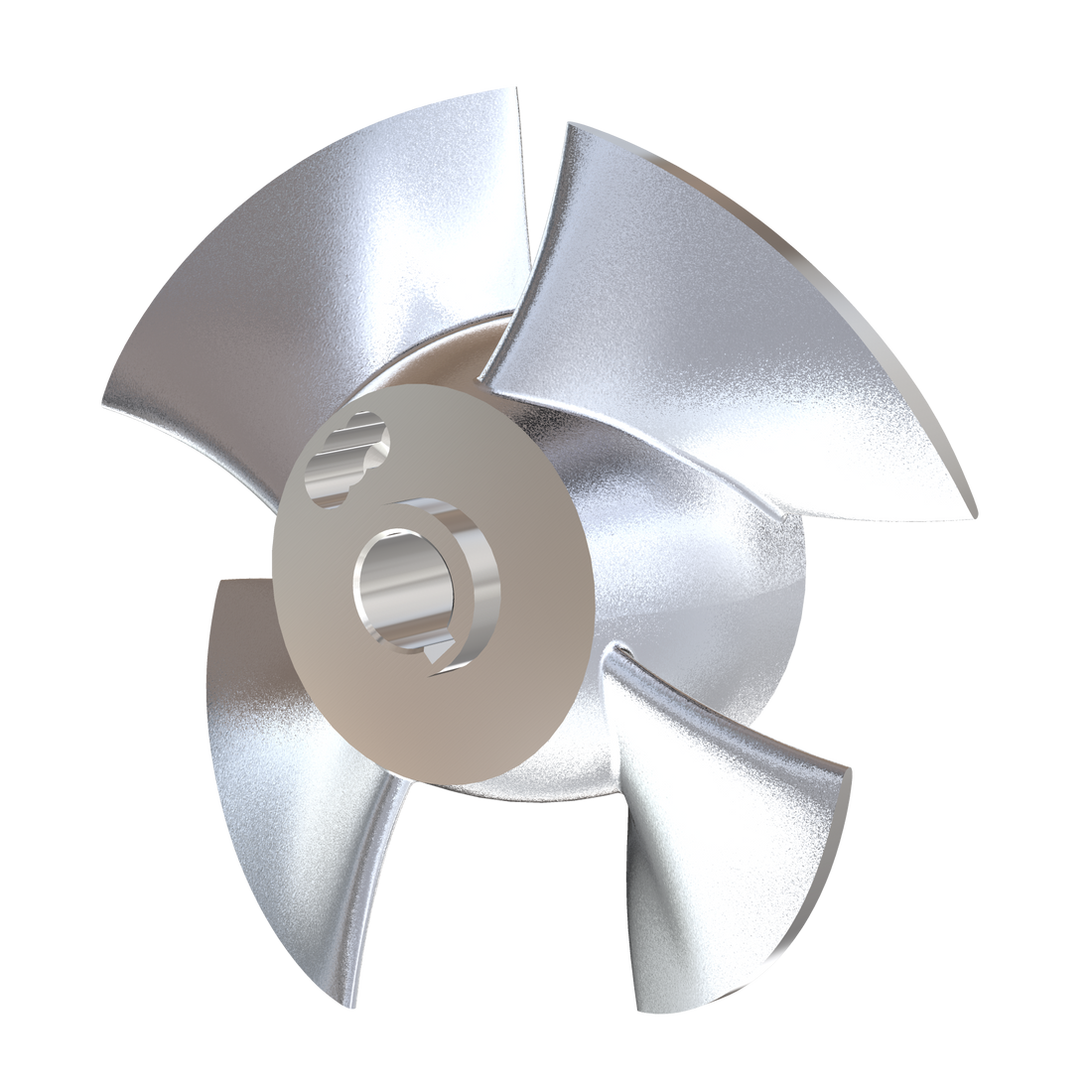

Impeller | FlowFriend Pro - 100/22 | FP.589043
: ImpellerMake: FlowFriendType: Pro - PP 100/22Material: Cast stainless steel 1.4408 (CF8M)

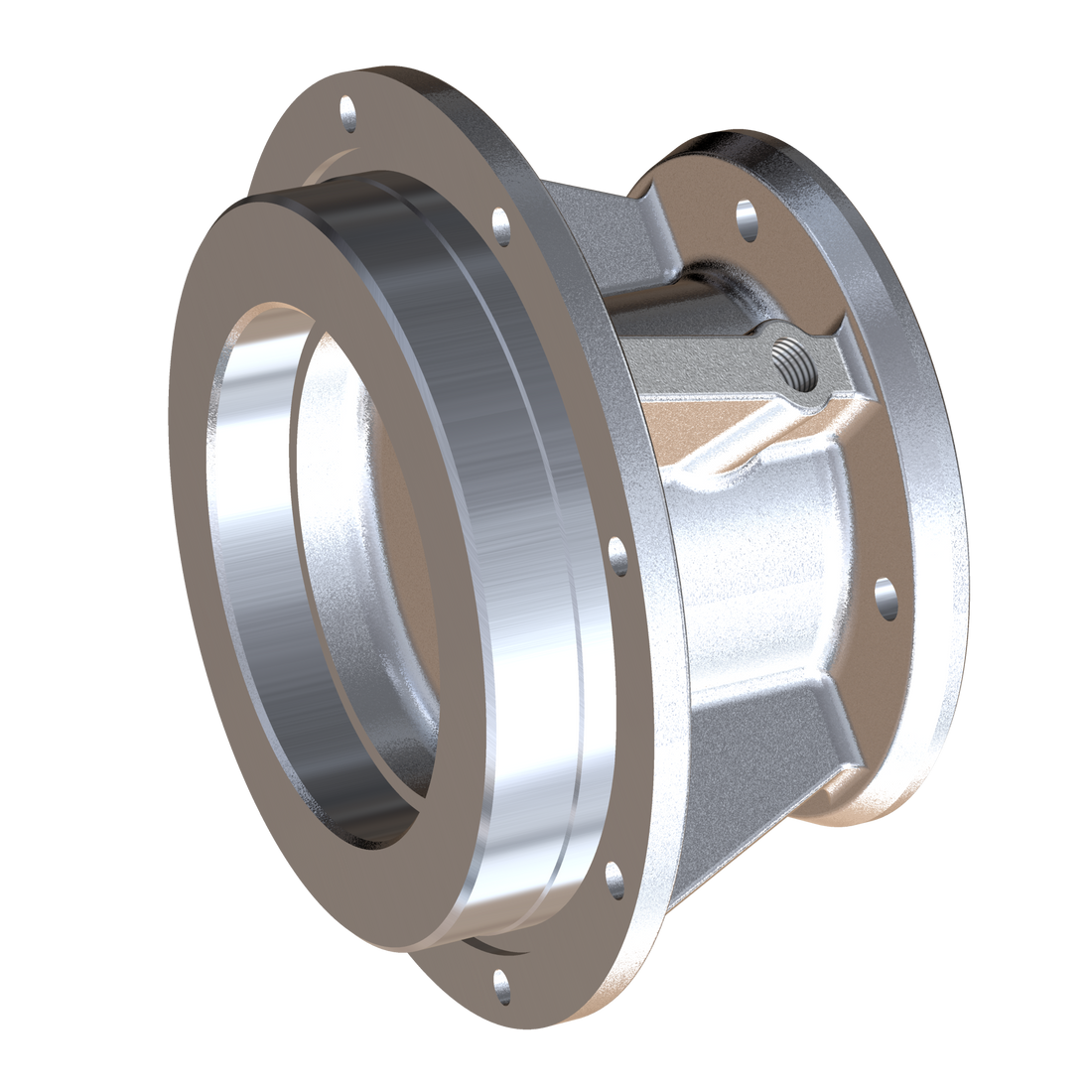

Lantern | FlowFriend HPN 110 | FP.589092
: LanternMake: FlowFriendType: HPN 110Material: Cast stainless steel 1.4408 (CF8M)

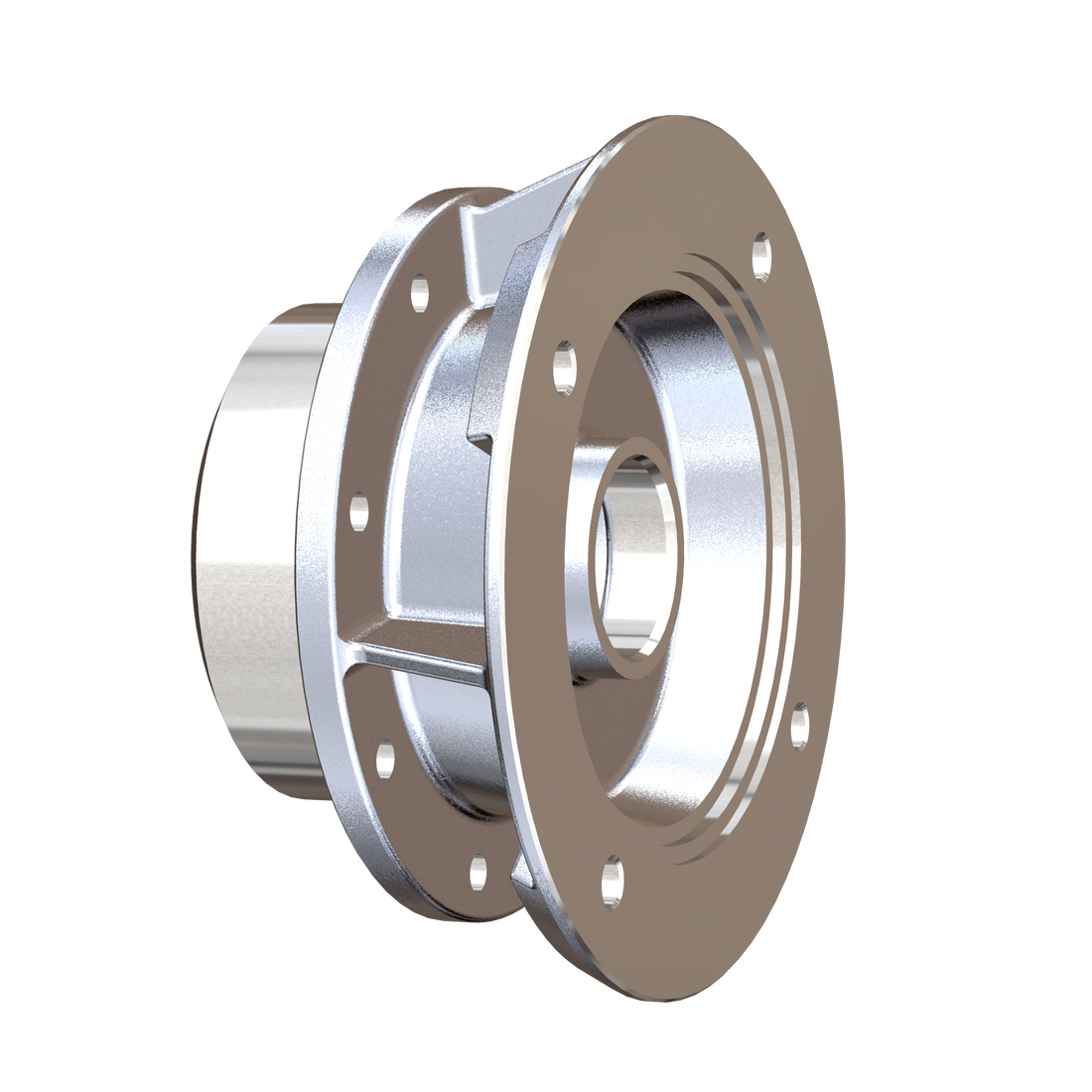

Lantern | FlowFriend Junior - HFP 70 | FP.589033
: LanternMake: FlowFriendType: Junior - HFP 70 Material: Cast stainless steel 1.4408 (CF8M)

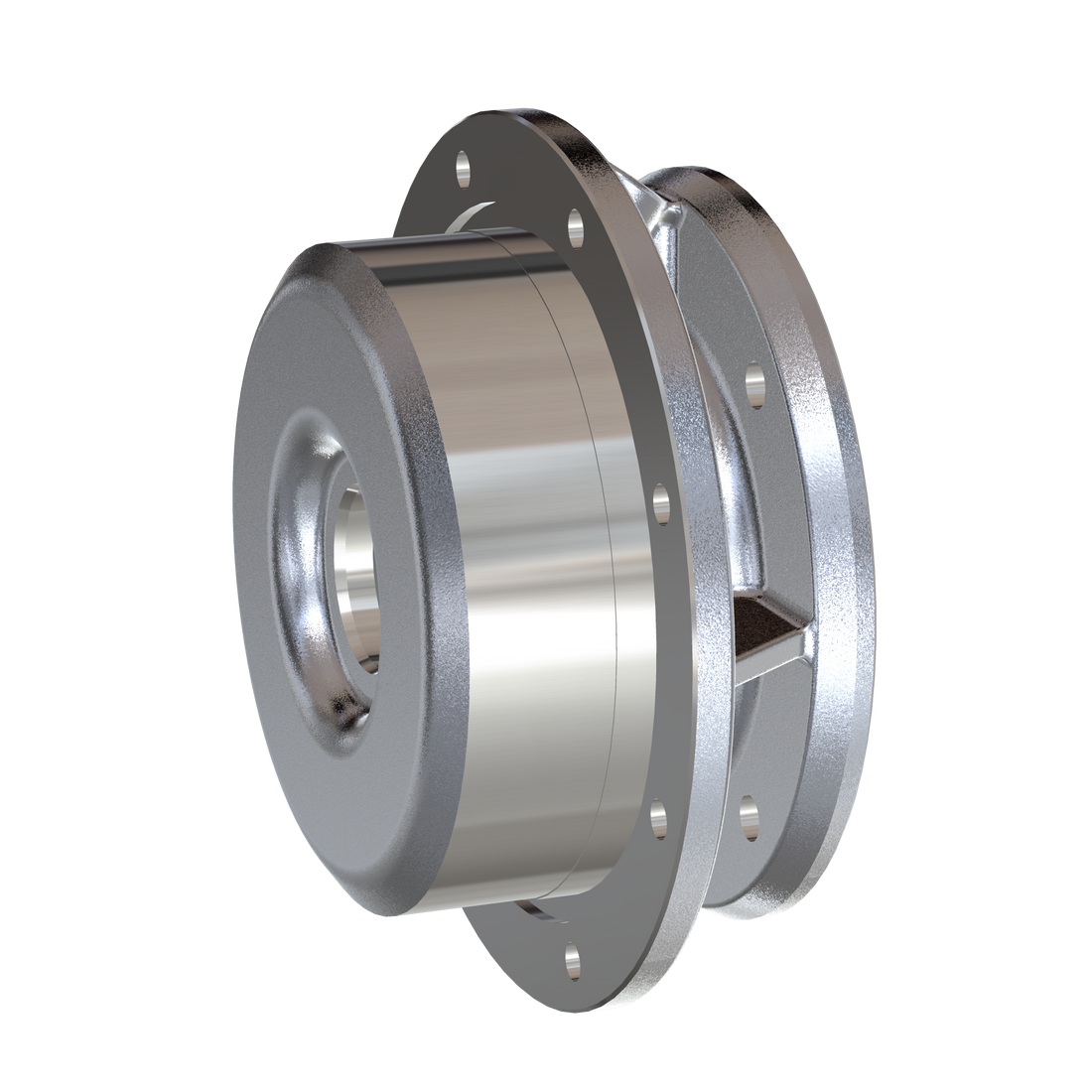

Lantern | FlowFriend Standard - HFP 90 | FP.589038
: LanternMake: FlowFriendType: Standaard - HFP 90 Material: Cast stainless steel 1.4408 (CF8M)

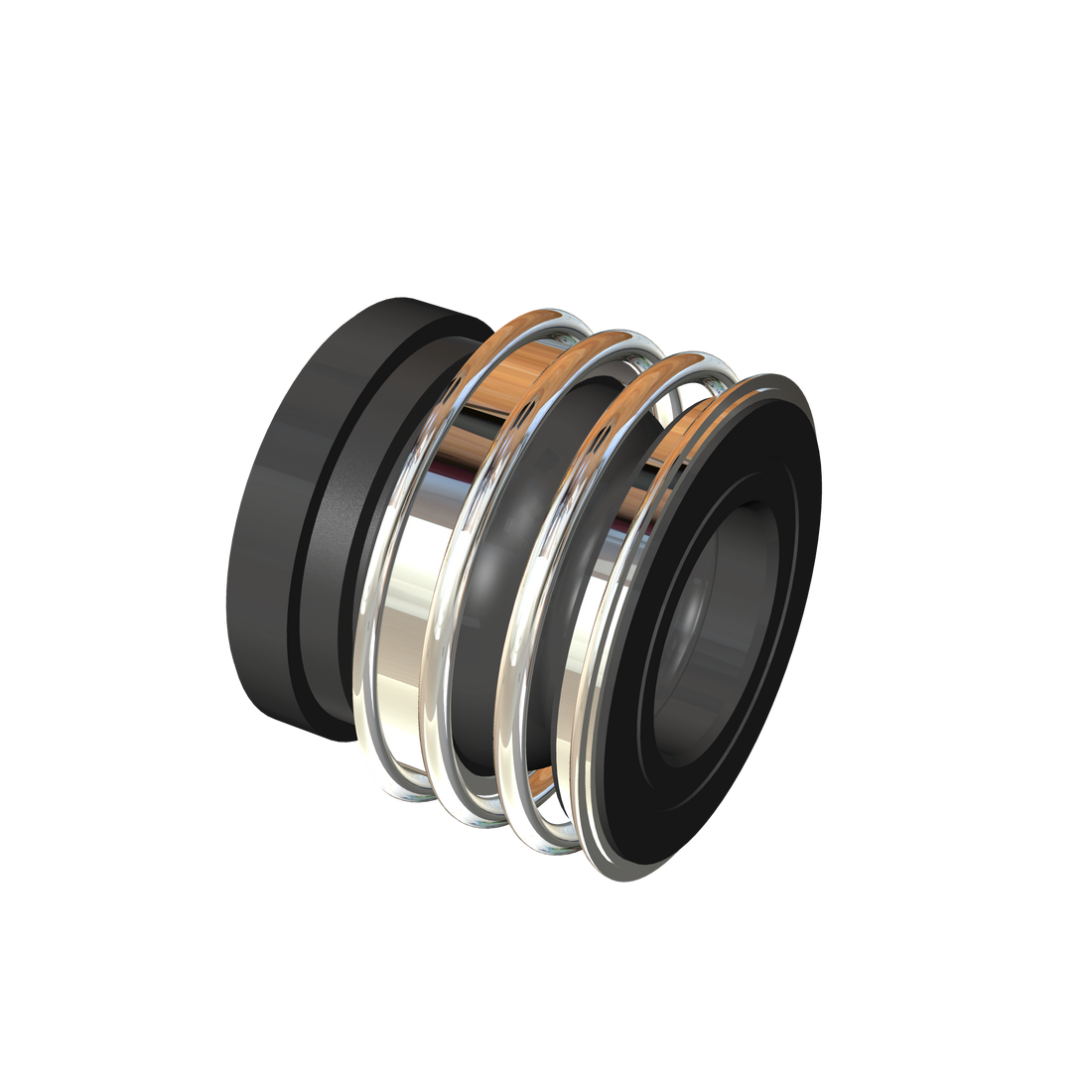

Mechanical seal | EMG1/14-G6 | FP.589016
: Mechanical sealMake: Eagle BurgmannType: EMG1/14-G6Material: AESIC-Q7 VGG/Y10Dimensions: 14mm FlowFriend pump type:HP - HPN 110Standard - HFP 90Pro - PP 100/22 Documentation Product data sheet | Mechanical seal | eMG1
Mechanical seal | MG1/12-G6 | FP.589015
: Mechanical sealMake: Eagle BurgmannType: MG1/12-G6Material: AQ1VGGDimensions: 12mm FlowFriend pump type:Junior - HFP 70 Documentation Product data sheet | Mechanical seal | eMG1

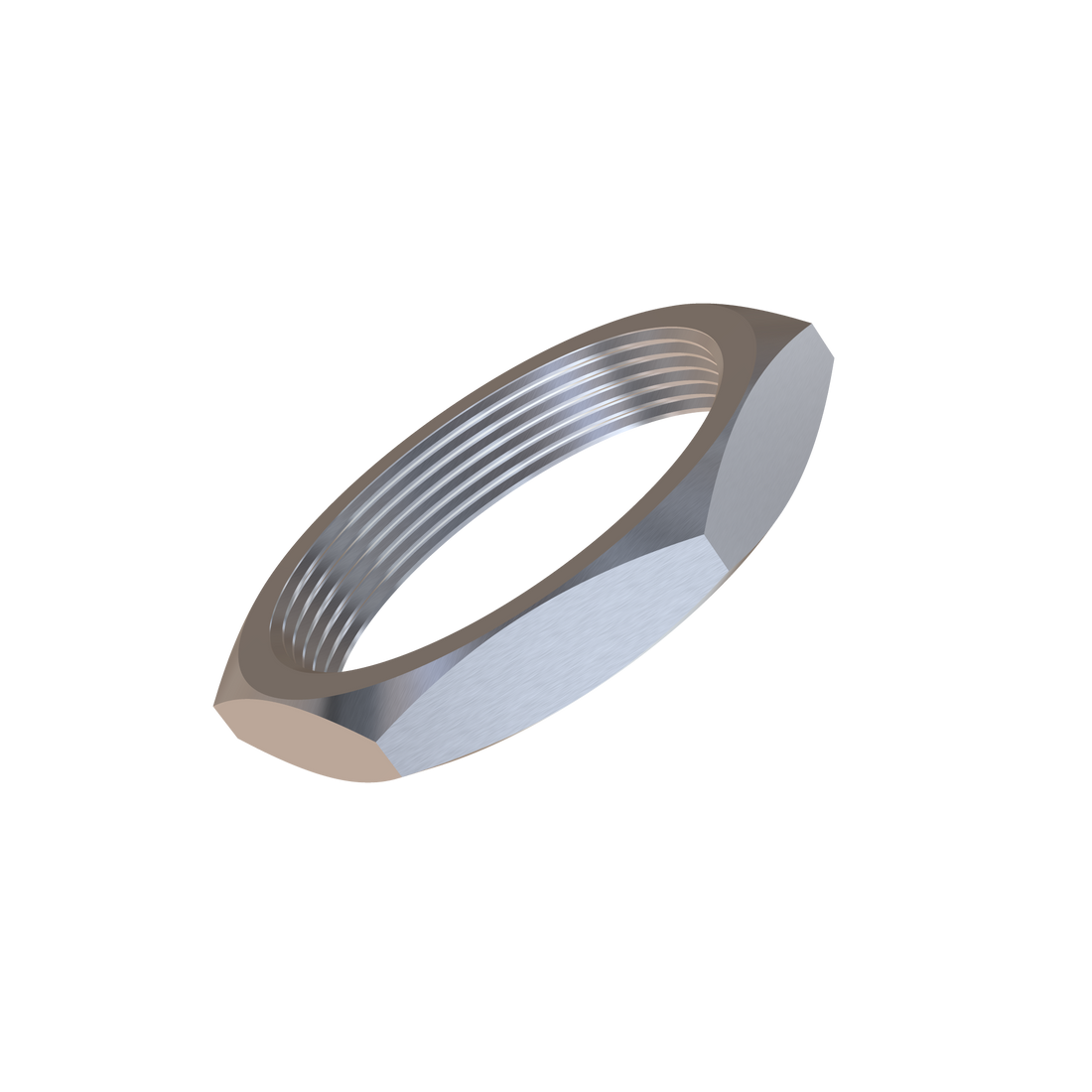

Nut | Lapp Skindicht M20x1.5 | FP.589008
: NutMake: LappType: Skindicht SM-M Size: M20x1.5Material: Brass Nickle platted
O-Ring | 107.62 x 2.62 | FP.589096
: O-Ring Material: NBR Hardness: 70 shore hardness Dimensions: 107.62 x 2.62 FlowFriend pump type:HP - HPN 110O-Ring between pumpcover and pumpcasing.
O-Ring | 113.97 x 2.62 | FP.589023
: O-Ring Material: NBR Hardness: 70 shore hardness Dimensions: 113.67 x 2.62 FlowFriend pump type:Pro - PP 100/22O-Ring between elbow/diffuser and diffuser/suction piece. 2 pieces needed/pump.
O-Ring | 31.42 x 2.62 | FP.589024
: O-Ring Material: NBR Hardness: 70 shore hardness Dimensions: 31.42 x 2.62 FlowFriend pump type:Pro - PP 100/22O-Ring between pump elbow and diffuser.
O-Ring | 72.69 x 2.62 | FP.589020
: O-Ring Material: NBR Hardness: 70 shore hardness Dimensions: 72.69 x 2.62 FlowFriend pump type:Junior - HFP 70O-Ring between pumpcover and pumpcasing.
O-Ring | 82.27 x 1.78 | FP.589019
: O-Ring Material: NBR Hardness: 70 shore hardness Dimensions: 82.27 x 1.78 FlowFriend pump type:Junior - HFP 70O-Ring between motor and pumpcover

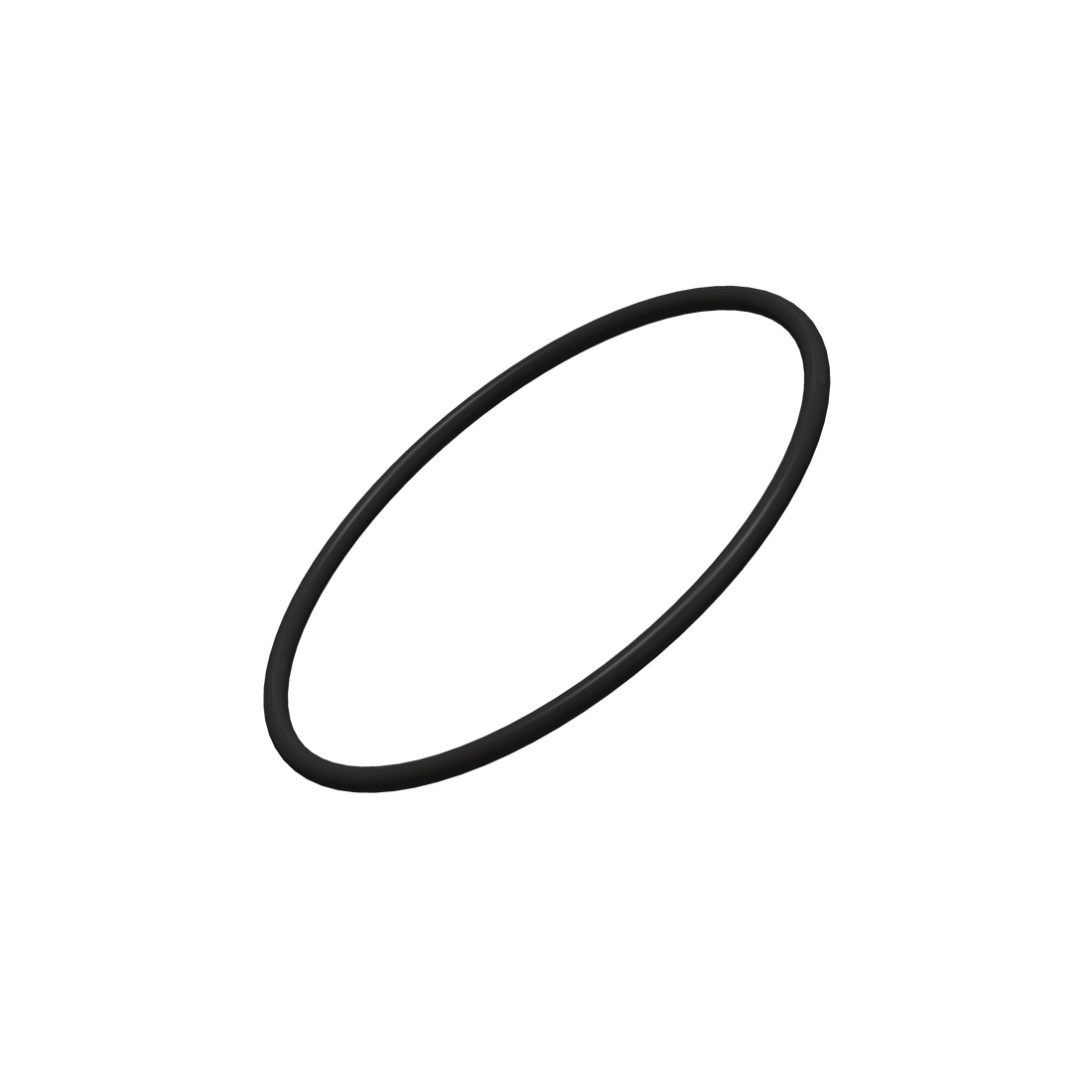

O-Ring | 91 x 2.5 | FP.589021
: O-Ring Material: NBR Hardness: 70 shore hardness Dimensions: 91 x 2.5 FlowFriend pump type:Standard - HFP 90O-Ring for impeller wearring in pumpcasing.2 pieces needed / pump
O-Ring | 92.75 x 2.62 | FP.589022
: O-Ring Material: NBR Hardness: 70 shore hardness Dimensions: 92.75 x 2.62 FlowFriend pump type:Standard - HFP 90O-Ring between pumpcover and pumpcasing.
Parallel key | 3x3x12 | FP.589057
: Parallel key Standard: DIN 6885 A Dimensions: 3x3x12 Material: Stainless steel A4

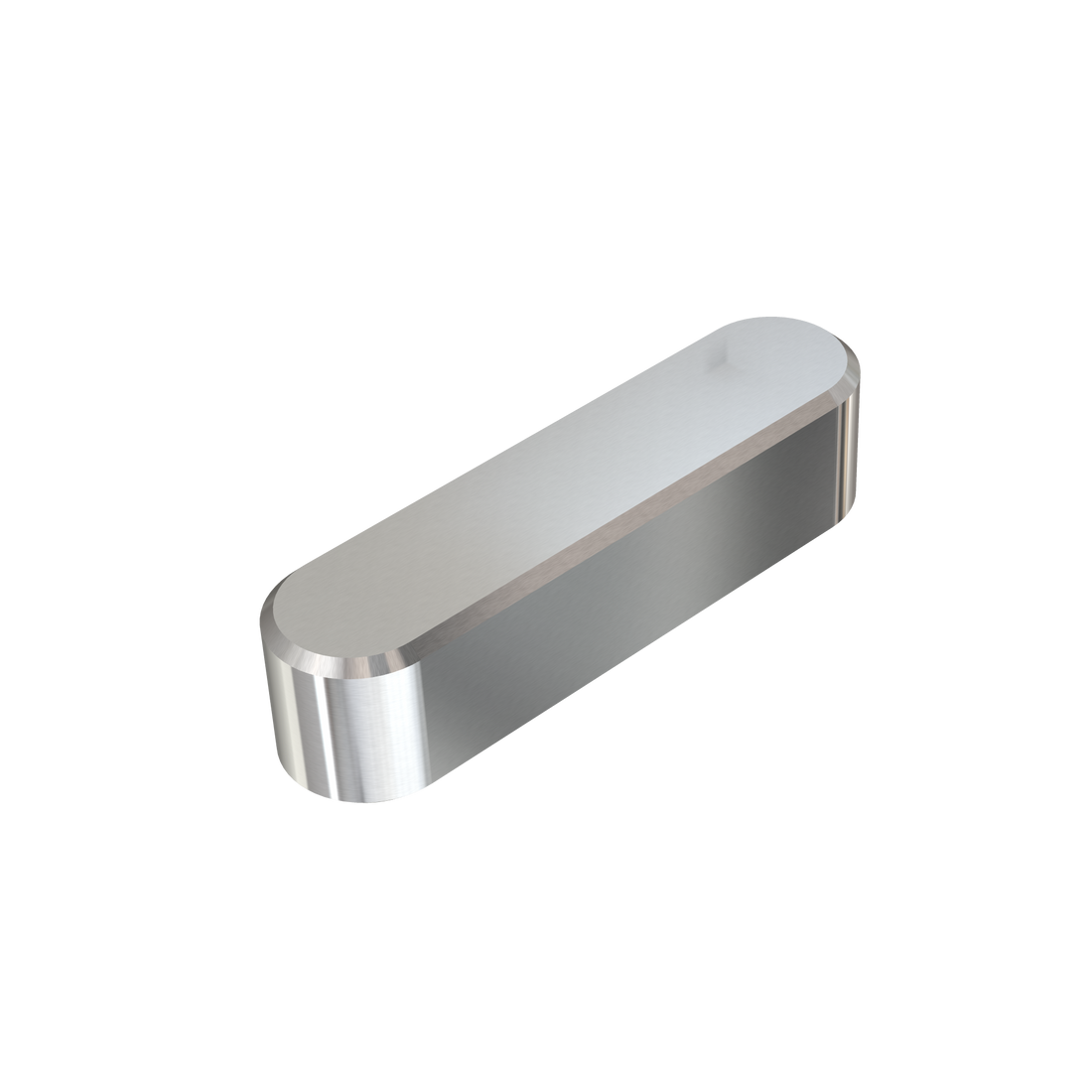

Parallel key | 4x4x16 | FP.589058
: Parallel key Standard: DIN 6885 A Dimensions: 4x4x16 Material: Stainless steel A4

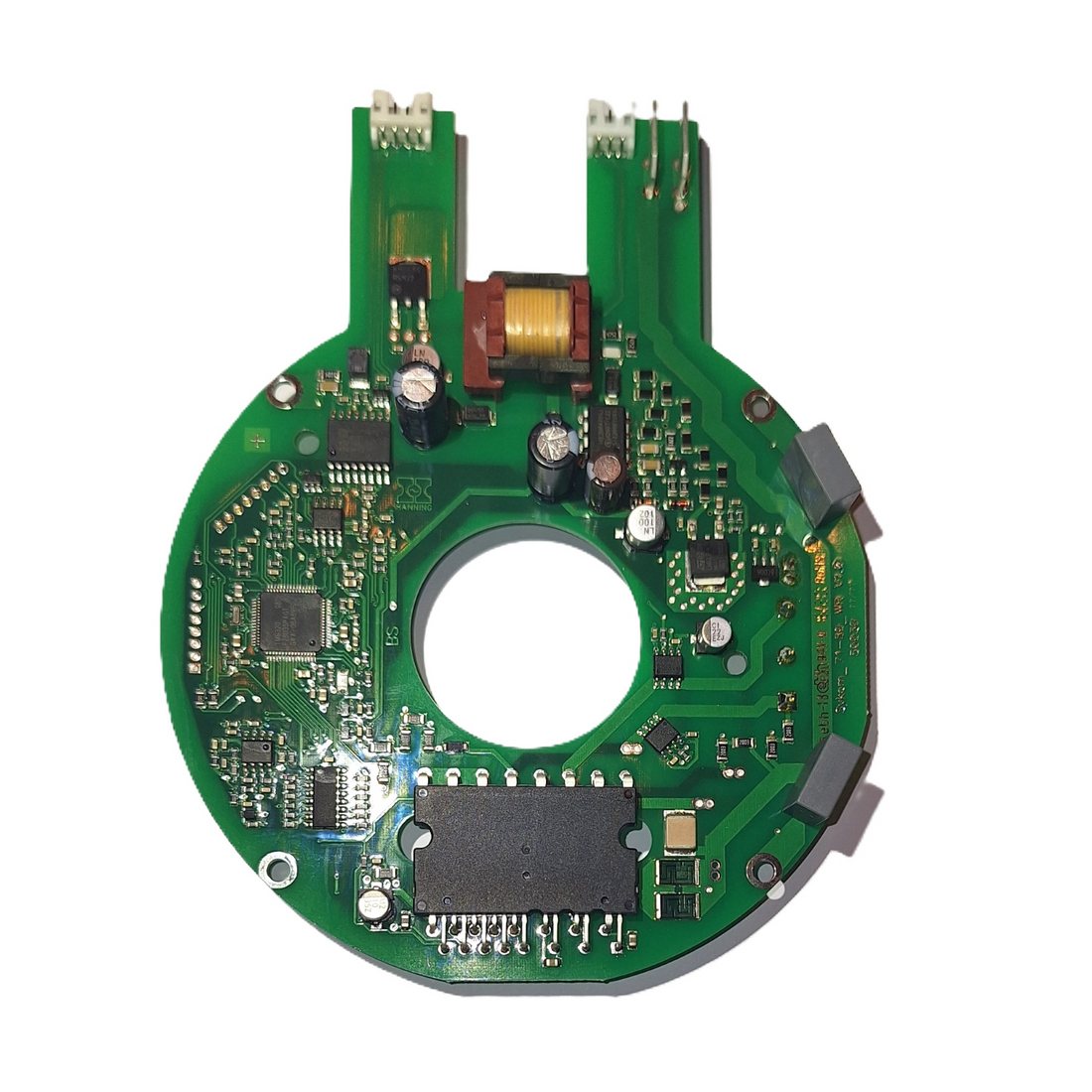

PCB board - Motor controller | FlowFriend Standard, Pro, HPN motors | FP.589003
: Spare PCB motor controller board Make: Stiloh Brandname: FlowFriend Type: SYK WR V1.3 Material: PCB board FlowFriend pump type:FlowFriend Standard - HFP 90FlowFriend Pro - PP 100/22FlowFriend HPN 110This PCB board may only be replaced by authorized personnel.
