Analog signal cable 0-10V | Standard, Pro, HPN, Prime 100 | FP.589004

Description

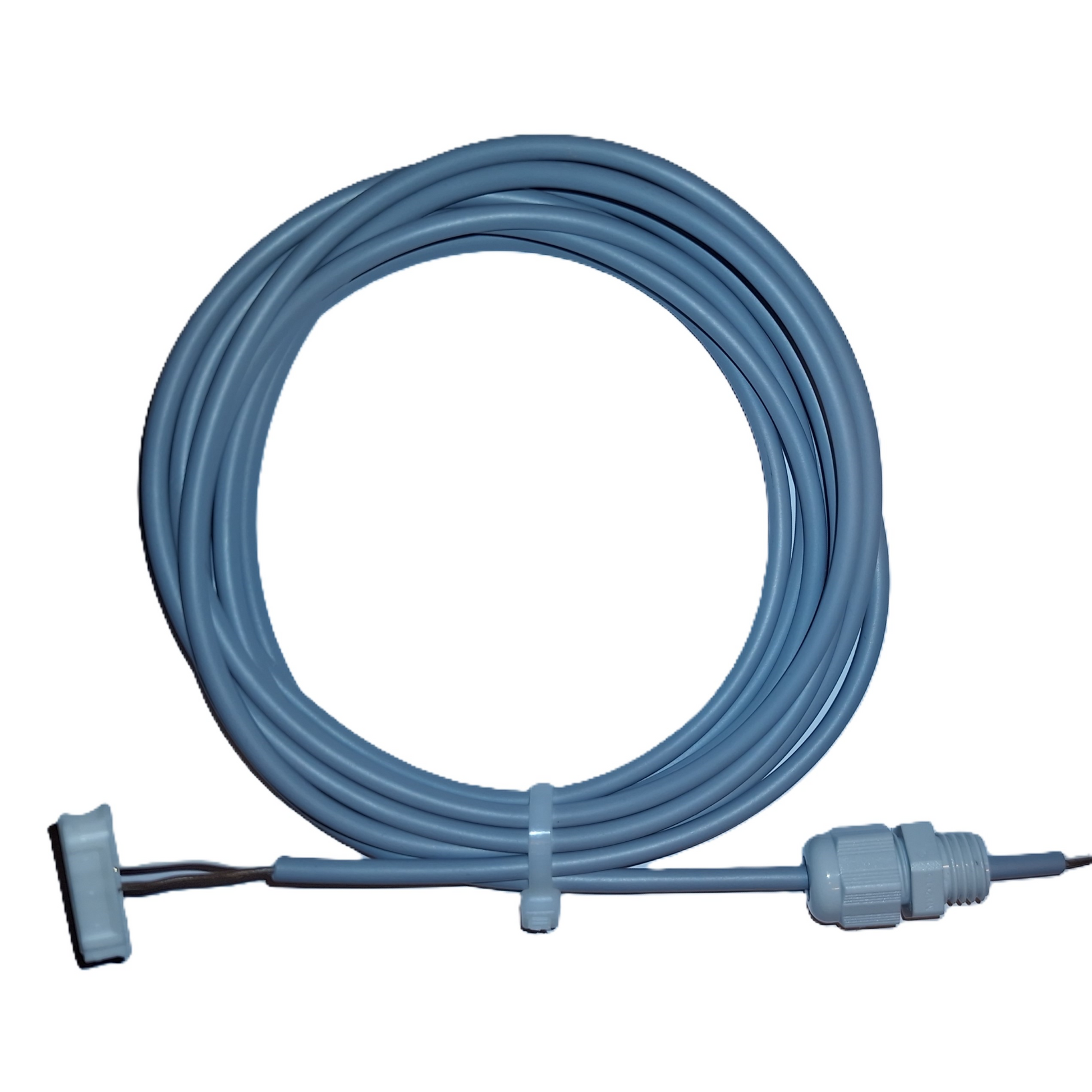

• Description: Cable for analog signal input 0-10V with connector

• Make: Stiloh

• Brand: FlowFriend
• Analog signal: 0-10V DC

• Connection: Cable gland M12 (Plug can be removed from the motor cover)
• Material: PVC - with connector
• Length: 5 mtr.

With this optional cable the motorspeed can be external adjusted by an analog 0-10V signal.

The connector must be plugged in the available connection on the PCB motor control board in the motor cover.

Brown = 0-10V DC input
White = Ground

- Read the enclosed installation and user manual for detailed instructions -

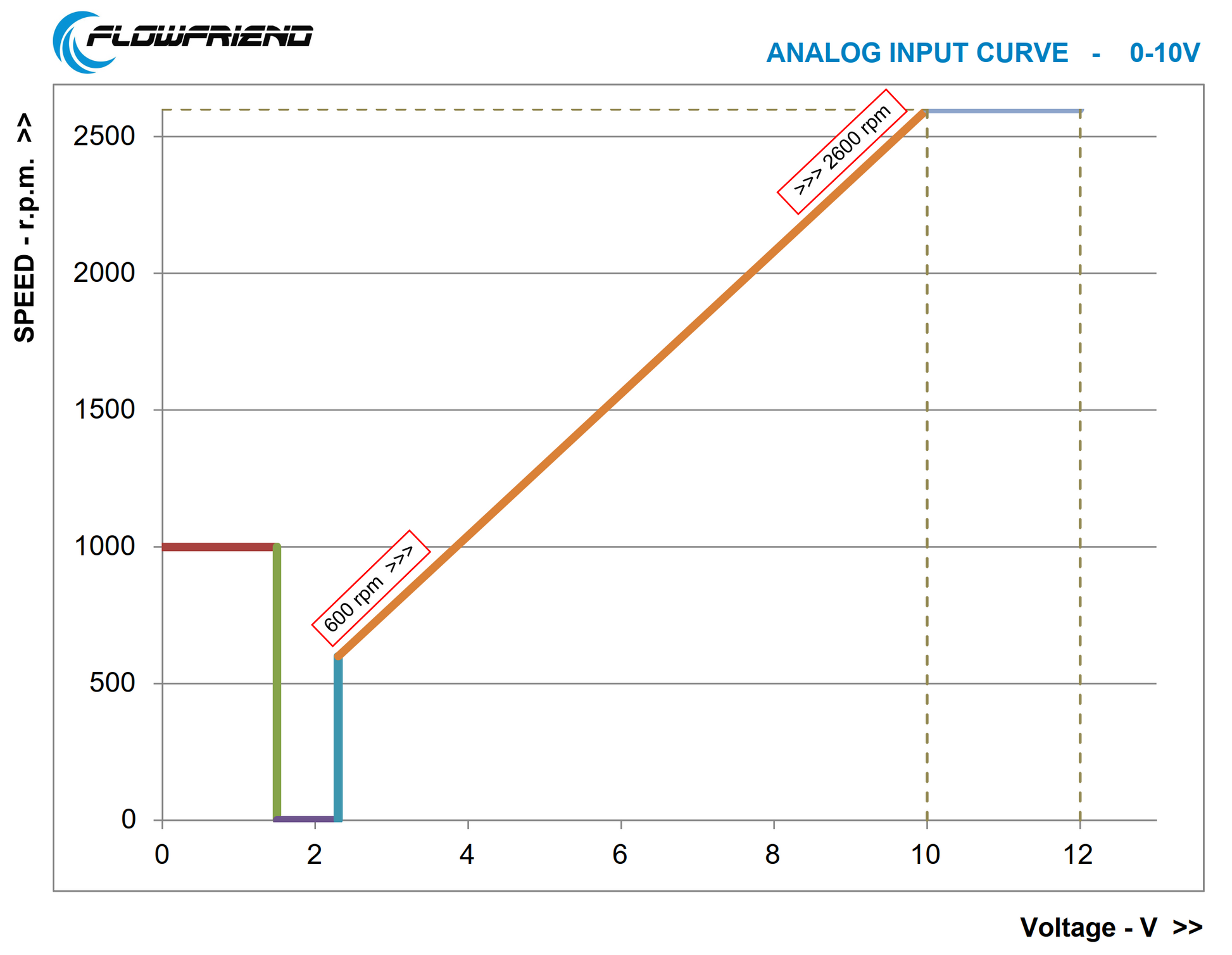

Quick User Guide:
0-1.5V - Motor speed is running on the manually setted speed
1.5 - 2.3V - The motorspeed is zero, pump stop rotating and in in standby modus
2.3V - 10V - The speed increases linearly from 600 till 2600 rpm

This means that at 2.3V the motor will run on 600 rpm, and at 10V the motor will run on the maximum speed op 2600 rpm.

WARNING:
The input voltage may not exceed 12V otherwise the PCB board of the control unit can be damaged.

FlowFriend pump types:
FlowFriend Standard - HFP 90
FlowFriend Pro - PP 100/22
FlowFriend HPN 110
FlowFriend Prime 100
