Spare Parts

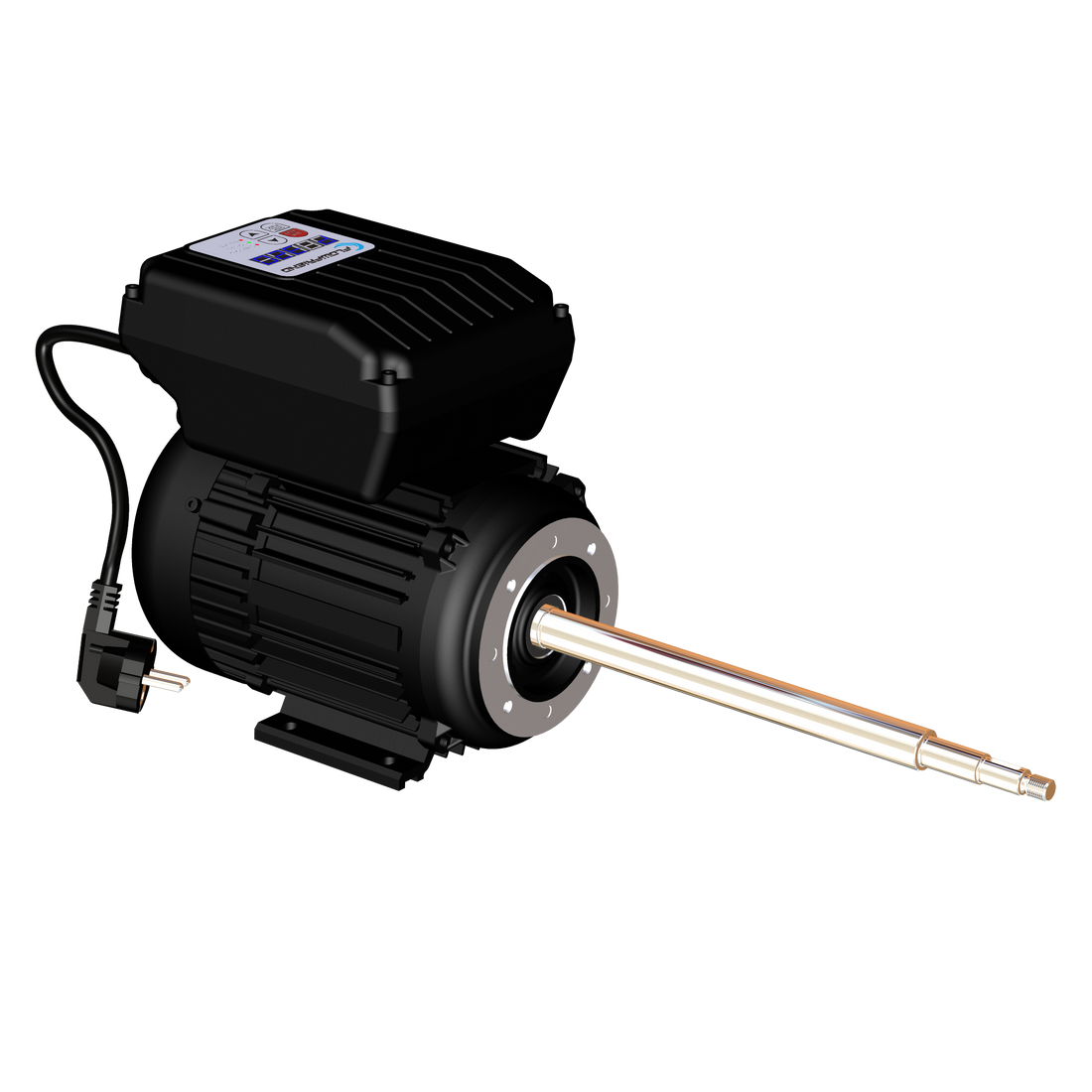

Spare motor - Long shaft | FlowFriend Pro - PP 100/22 | FP.589001
: Spare PMSM motor - Permanent Magnet Synchronous MotorMake: StilohBrand: FlowFriendType: Pro - PP 100/22IP rating: IP55Shaft power: 1100W Material: AluminiumExtended shaft: 1.4122 - Long shaft

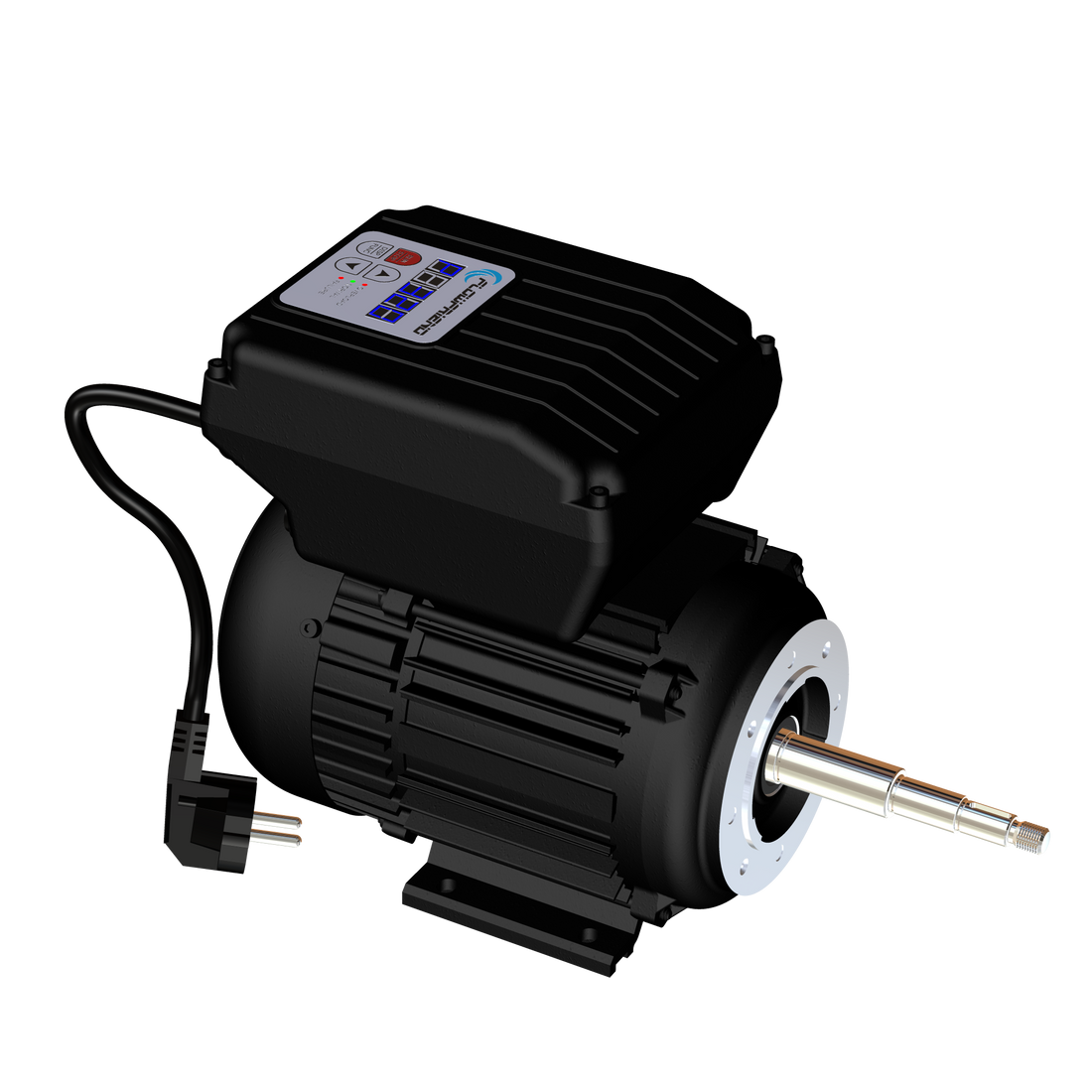

Spare motor - Normal shaft | Standard, HPN | FP.589000
: Spare PMSM motor - Permanent Magnet Synchronous MotorMake: StilohBrand: FlowFriendType: Standard, HPNIP rating: IP55Shaft power: 1100W Material: AluminiumExtended shaft: 1.4122 - Normal shaftFlowFriend pump types:FlowFriend Standard - HFP 90 (Series 2>)FlowFriend HP - HPN 110 (Series 0>)

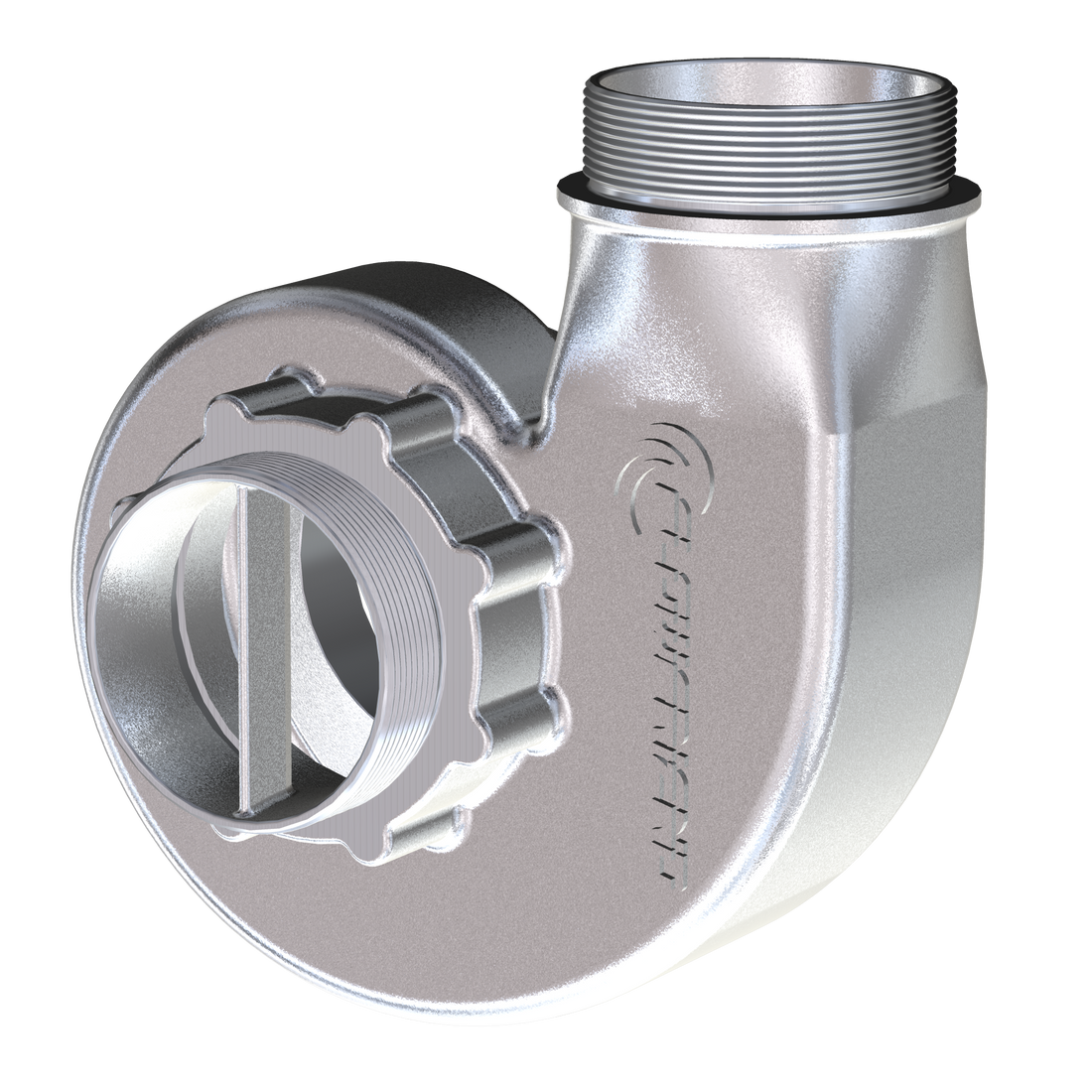

Pump casing | FlowFriend - Standard - HFP 90 | FP.589037
: Pump casingMake: FlowFriendType: Standard - HFP 90 Material: Cast stainless steel 1.4408 (CF8M)

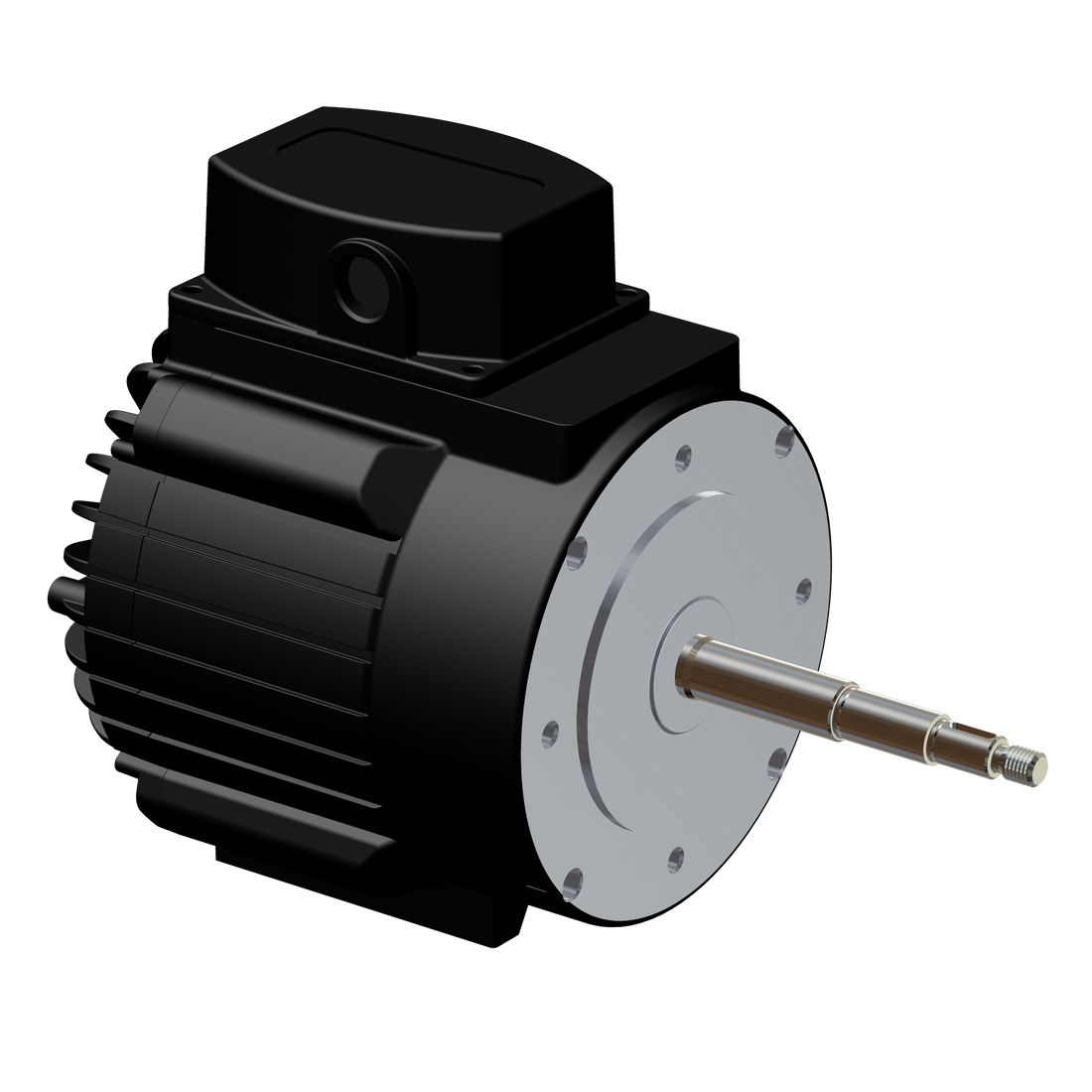

Spare motor | FlowFriend Junior - HFP 70 | FP.589002
: Spare PMSM motor - Permanent Magnet Synchronous Motor Make: Stiloh Brandname: FlowFriend Type: Junior - HFP 70 IP rating: IP67 Size: 800W Material: Aluminium Extended shaft: 1.4404

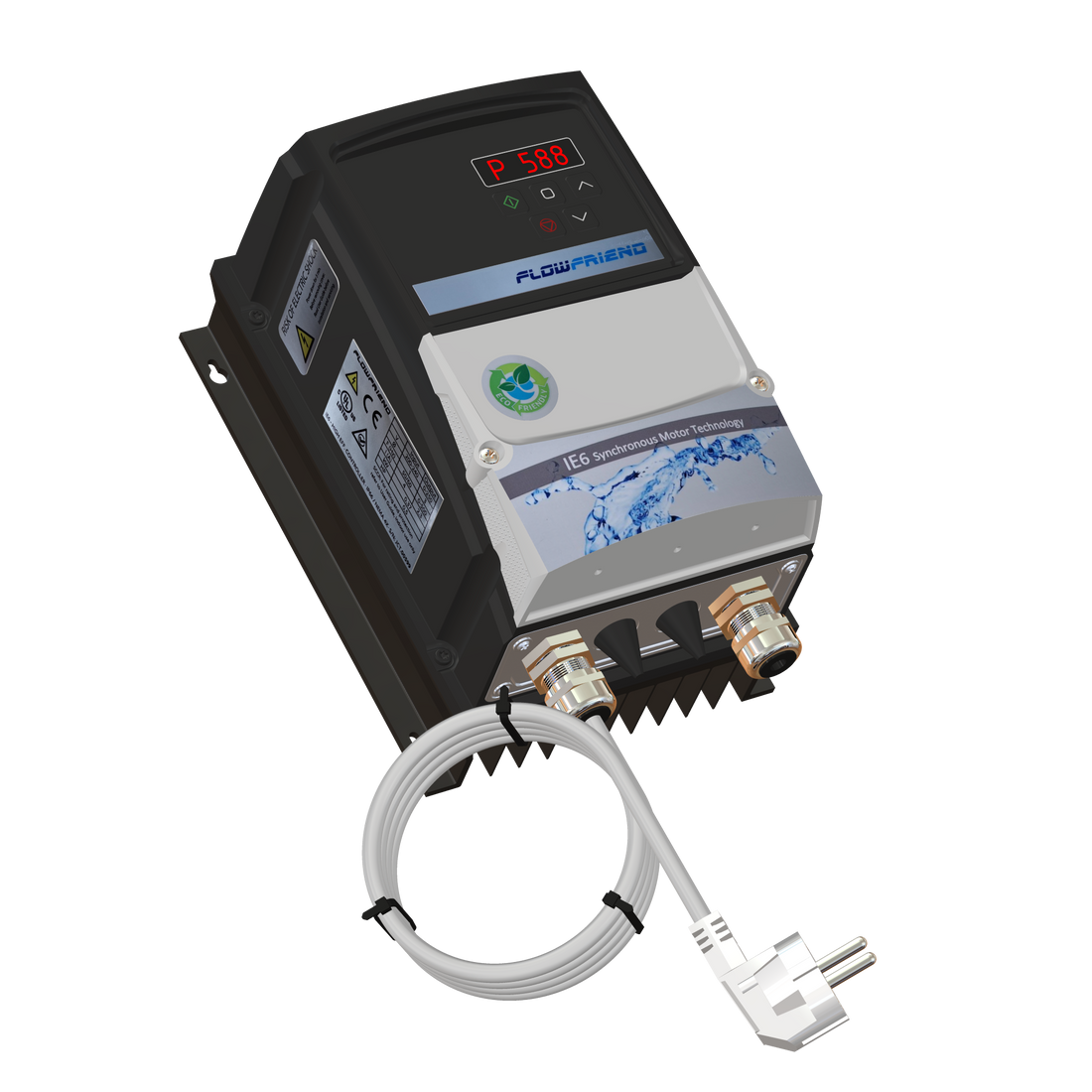

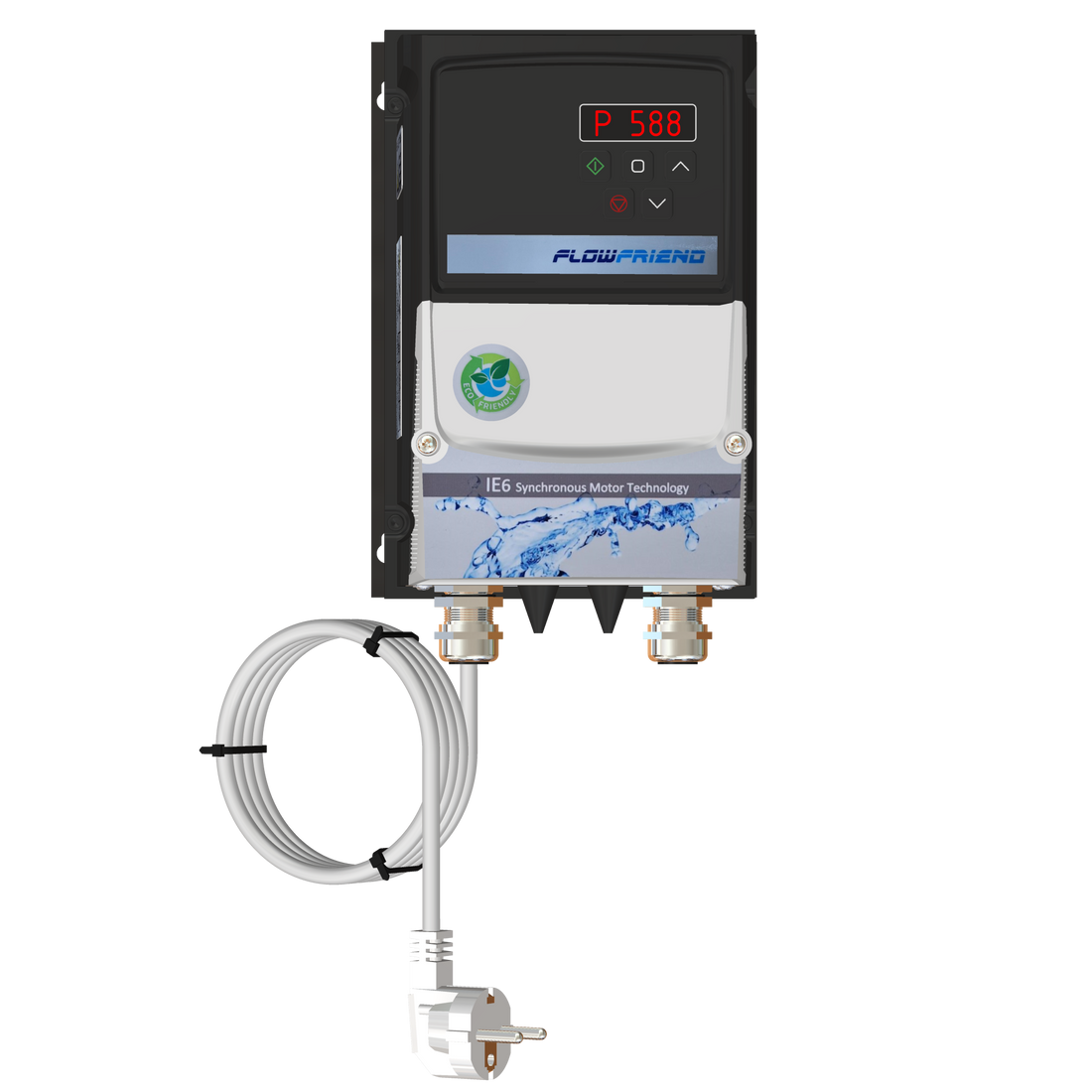

Product 58 | FP.589098 V-230
Motor controller - VSD, Junior, HFP 70, Single pfase 115V
Product 57 | FP.589097 V-115
Motor controller - VSD, Junior, HFP 70, Single pfase 230V
Discharge elbow | FlowFriend Pro - PP 100/22 | FP.589042
: Discharge ElbowMake: FlowFriendType: Pro - PP 100/22Material: Cast stainless steel 1.4408 (CF8M)
Pumpcasing | FlowFriend Junior - HFP 70 | FP.589032
: PumpcasingMake: FlowFriendType: Junior - HFP 70 Material: Cast stainless steel 1.4408 (CF8M)

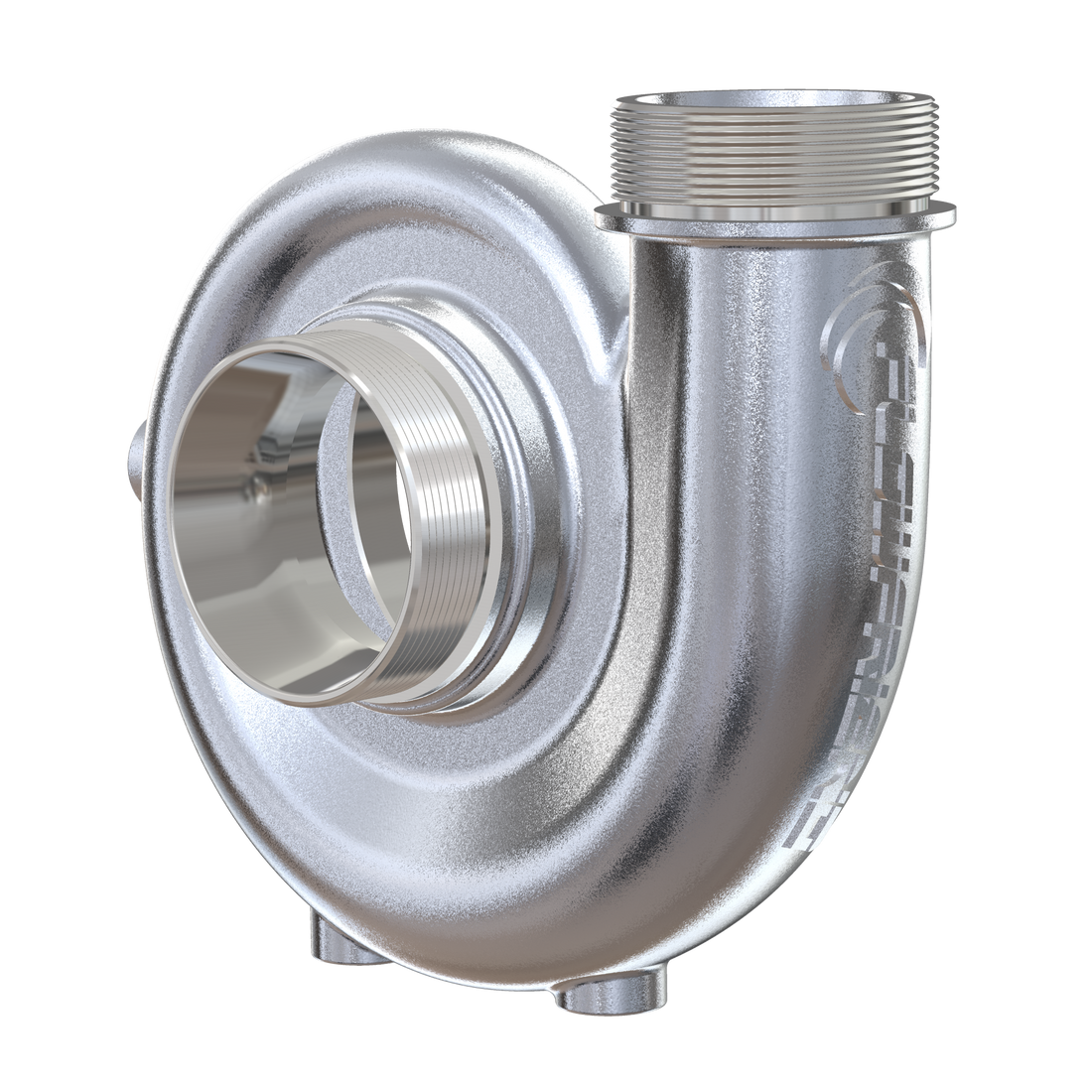

Pump casing | FlowFriend HPN 110 | FP.589091
: PumpcasingMake: FlowFriendType: HPN 110Material: Cast stainless steel 1.4408 (CF8M)
PCB board - Motor controller | FlowFriend Standard, Pro, HPN motors | FP.589003
: Spare PCB motor controller board Make: Stiloh Brandname: FlowFriend Type: SYK WR V1.3 Material: PCB board FlowFriend pump type:FlowFriend Standard - HFP 90FlowFriend Pro - PP 100/22FlowFriend HPN 110This PCB board may only be replaced by authorized personnel.
Diffuser | FlowFriend Pro - PP 100/22 | FP.589041
: DiffuserMake: FlowFriendType: Pro - PP 100/22 Material: Cast stainless steel 1.4408 (CF8M)

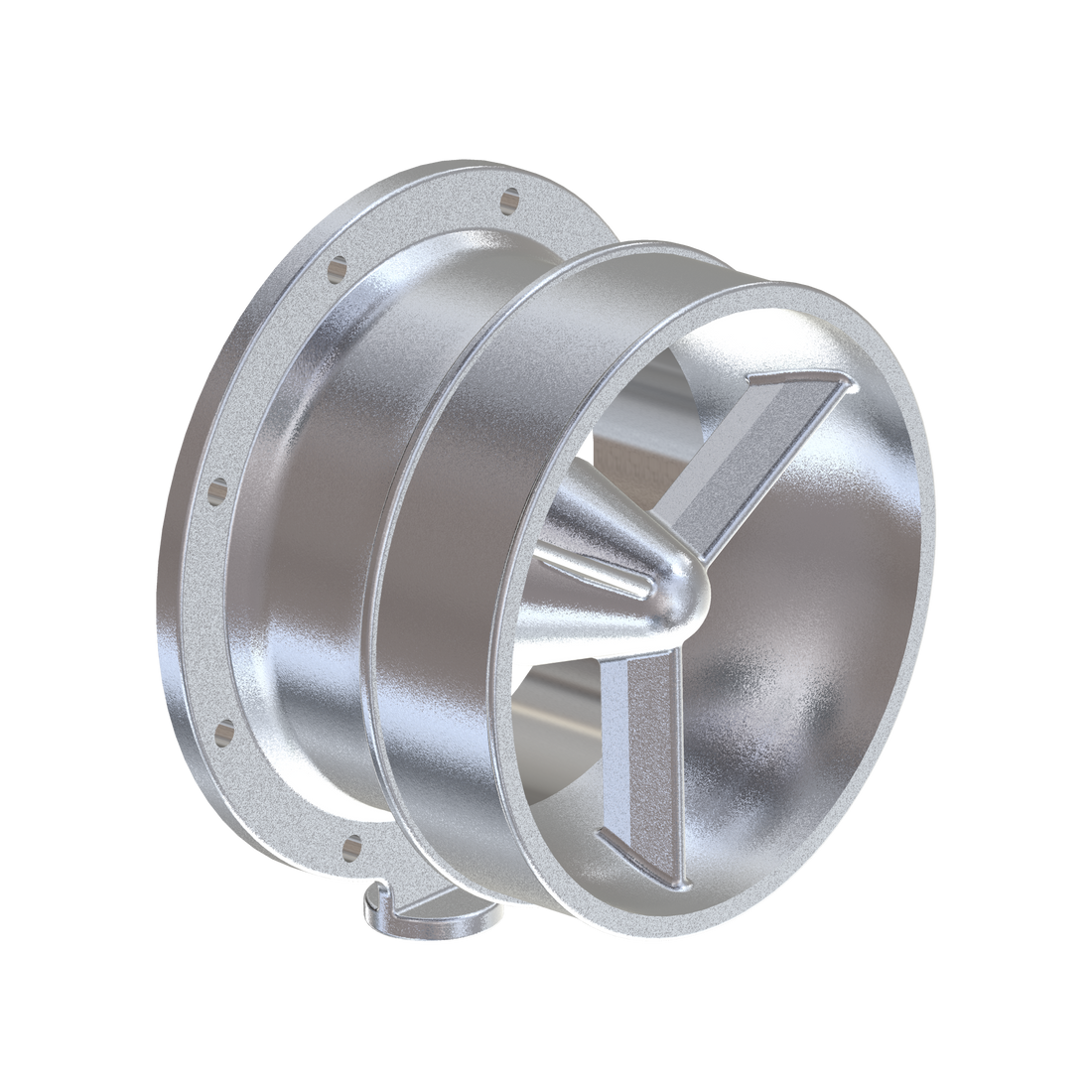

Suction Piece | FlowFriend Pro - PP 100/22 | FP.589044
: Suction pieceMake: FlowFriendType: HPN 110Material: Cast stainless steel 1.4408 (CF8M)
Lantern | FlowFriend HPN 110 | FP.589092
: LanternMake: FlowFriendType: HPN 110Material: Cast stainless steel 1.4408 (CF8M)
Lantern | FlowFriend Junior - HFP 70 | FP.589033
: LanternMake: FlowFriendType: Junior - HFP 70 Material: Cast stainless steel 1.4408 (CF8M)
Lantern | FlowFriend Standard - HFP 90 | FP.589038
: LanternMake: FlowFriendType: Standaard - HFP 90 Material: Cast stainless steel 1.4408 (CF8M)
Impeller | FlowFriend Pro - 100/22 | FP.589043
: ImpellerMake: FlowFriendType: Pro - PP 100/22Material: Cast stainless steel 1.4408 (CF8M)

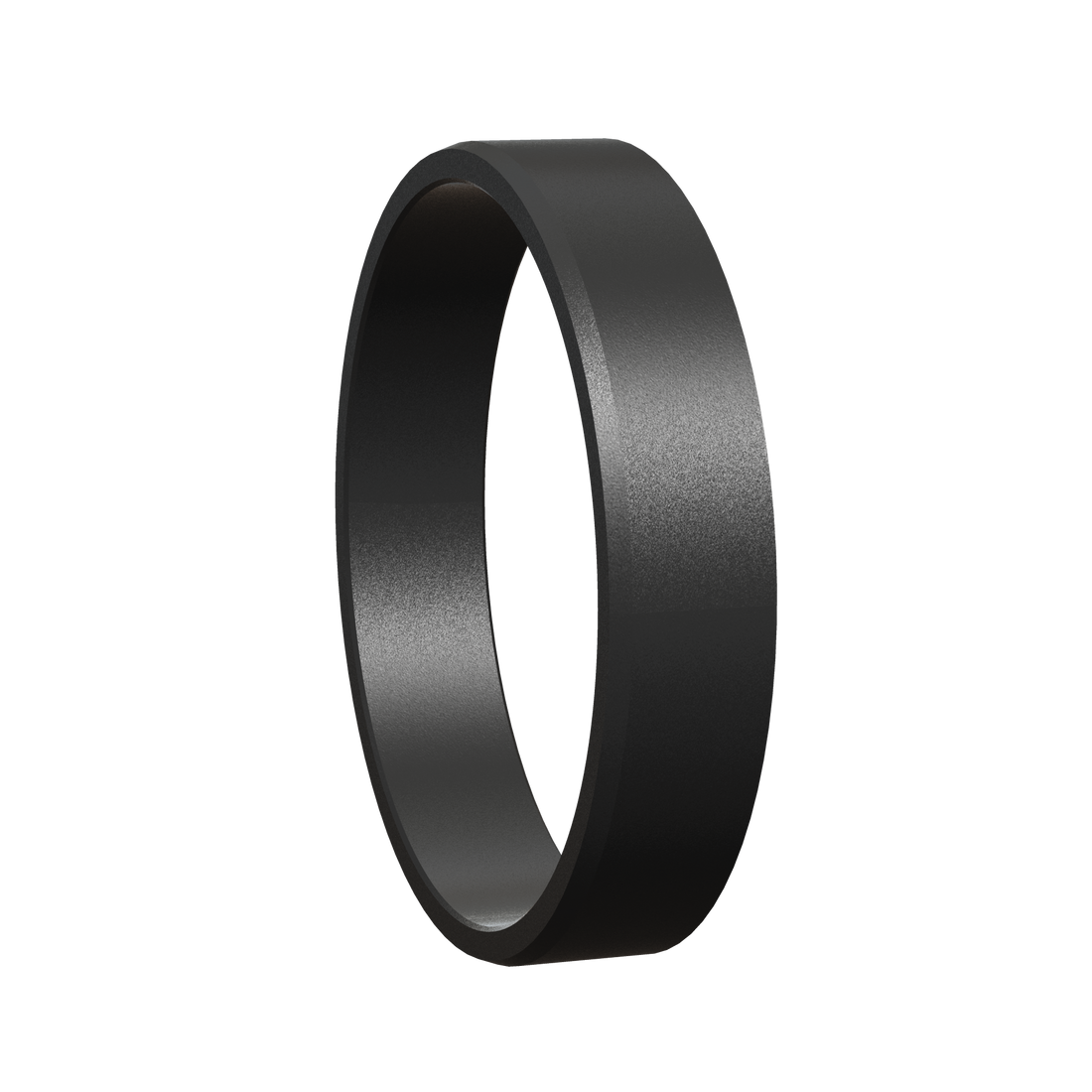

Wearring Impeller | 91/88 x 18mm | FP.589064
: Wearring impeller Make: Stiloh Brandname: FlowFriend Type: High performance filled carbon Material: Filled carbon Dimensions: 91/88 x 18mm FlowFriend pump type:Standard - HFP 90 This impeller wearring provide a easy and economically renewable running clearance between the impeller and casing to keep an optimal pump efficiency.To minimize the leakage between casing and impeller this wearring should be replaced latest after 40.000 hours (for clean water).If the diametrical clearance is more than 0.5 mm this wearring must always be replaced.
Impeller | FlowFriend HPN 110 | FP.589093
: ImpellerMake: FlowFriendType: HPN 110Material: Cast stainless steel 1.4408 (CF8M)
Impeller | FlowFriend Junior - HFP 70 | FP.589031
: ImpellerMake: FlowFriendType: Junior - HFP 70 Material: Cast stainless steel 1.4408 (CF8M)
Impeller | FlowFriend - Standard - HFP 90 | FP.589036
: ImpellerMake: FlowFriendType: Standard - HFP 90 Material: Cast stainless steel 1.4408 (CF8M)
Mechanical seal | EMG1/14-G6 | FP.589016
: Mechanical sealMake: Eagle BurgmannType: EMG1/14-G6Material: AESIC-Q7 VGG/Y10Dimensions: 14mm FlowFriend pump type:HP - HPN 110Standard - HFP 90Pro - PP 100/22 Documentation Product data sheet | Mechanical seal | eMG1
Mechanical seal | MG1/12-G6 | FP.589015
: Mechanical sealMake: Eagle BurgmannType: MG1/12-G6Material: AQ1VGGDimensions: 12mm FlowFriend pump type:Junior - HFP 70 Documentation Product data sheet | Mechanical seal | eMG1
Cable complete | Motor controller - Motor Junior - HFP 70 | FP.589101
: Spare cable complete with connectors Make: Stiloh Brandname: FlowFriend Material: PVC - EMC shielded Length: 5 mtr. FlowFriend pump type:Junior - HFP 70Connection cable between Motor and motor controller.
Cable | 230V - Europlug - FlowFriend - Junior - HFP 70 | FP.589013
: Power cable - EuroplugType: H05VV-F3G1.00GRType: FVoltage: 230VLength: 3 mtr. Material: PVCColor: Gray

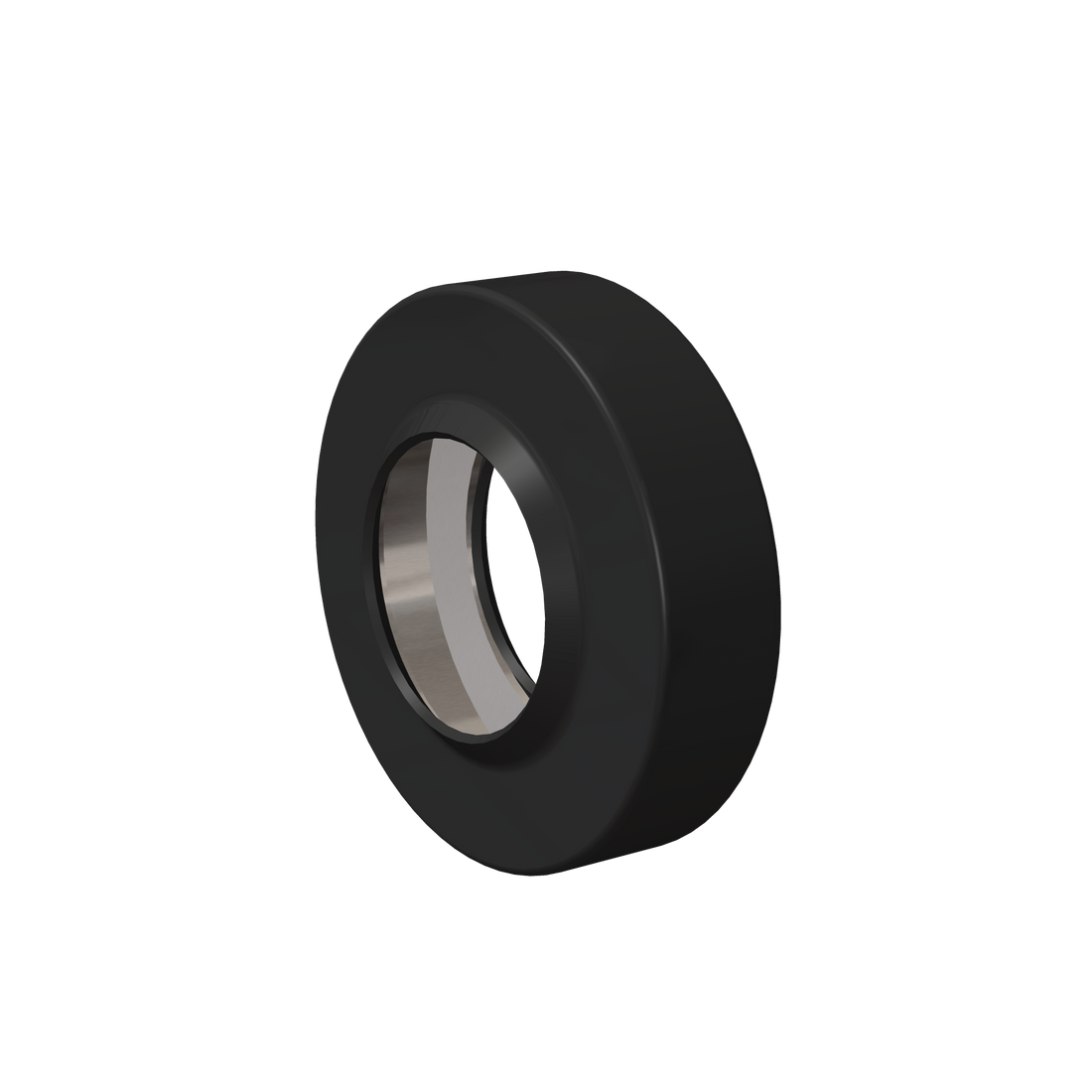

Shaft seal | Domselring WDR 14x28x7 | FP.589029
: Shaft seal Type: Domselring WDR, type AB Pressure: max. 6 bar Material: NBR / steel Dimensions: 14x28x7 FlowFriend pump type:Junior - HFP 70The shaft seal must be filled for 80% with special Berulub grease.

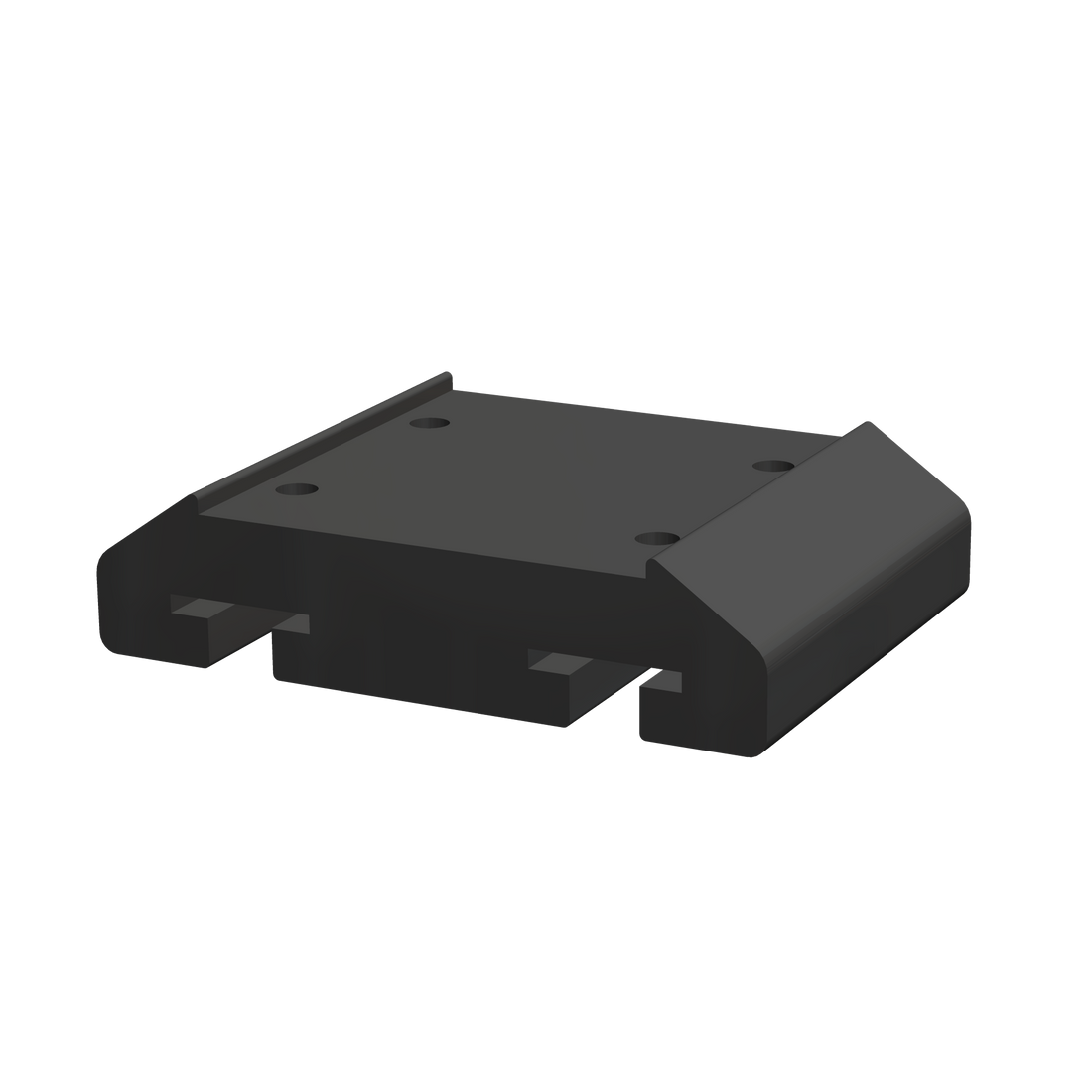

Vibration damper | FlowFriend Junior - HFP 70 | FP.589059
: Vibation damper Make: Stiloh Brandname: FlowFriend Type: FlowFriend Junior - HFP 70 Material: Rubber Dimensions: HFP 70 FlowFriend pump type:Junior - HFP 70

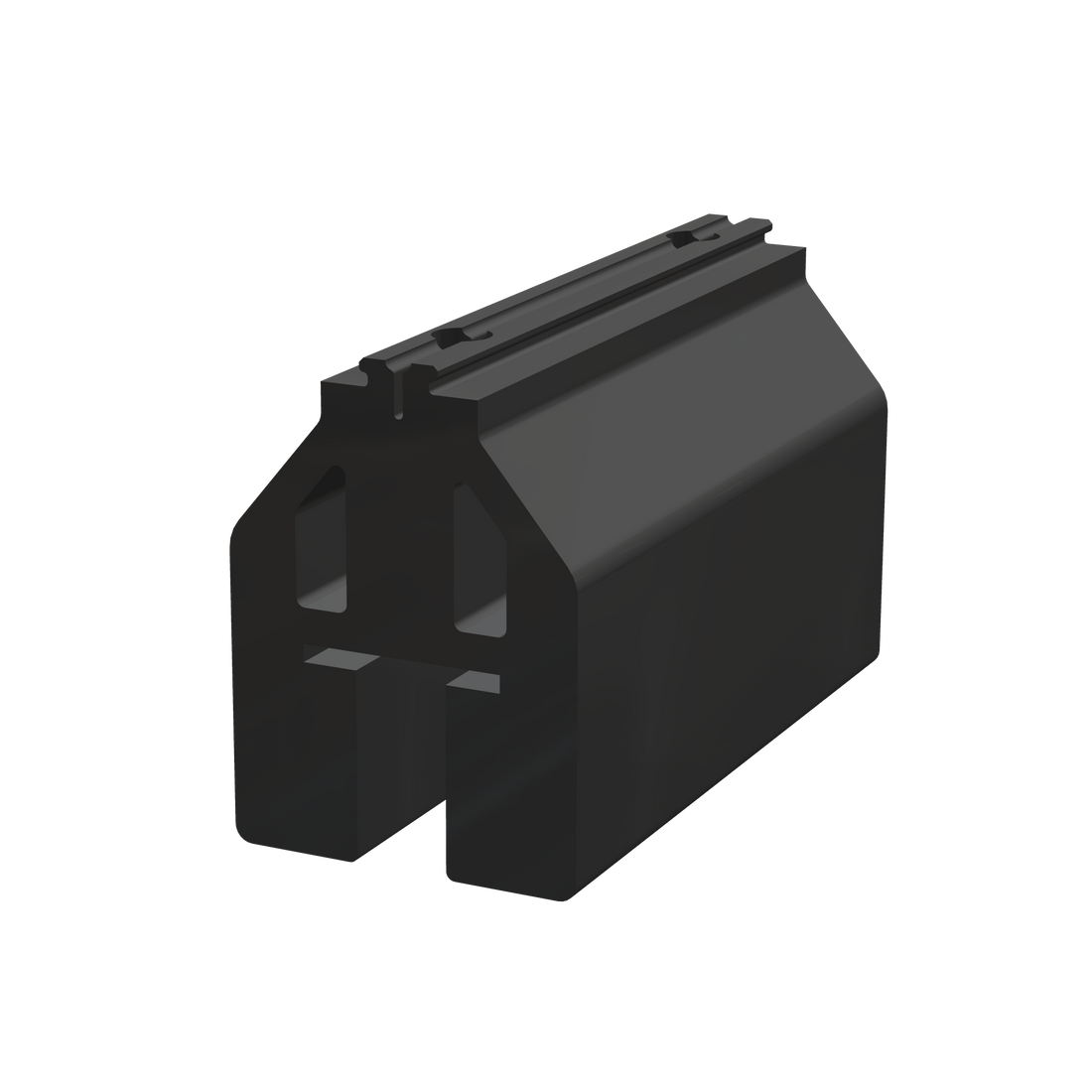

Vibration damper | FlowFriend Standard - HPN 110 - Prime 100 | FP.589094
: Vibation damper Make: Stiloh Brandname: FlowFriend Type: FlowFriend HP - HPN 110 and Prime 100 Material: Rubber Dimensions: HPN 110 FlowFriend pump type:HP - HPN 110 | Prime 100

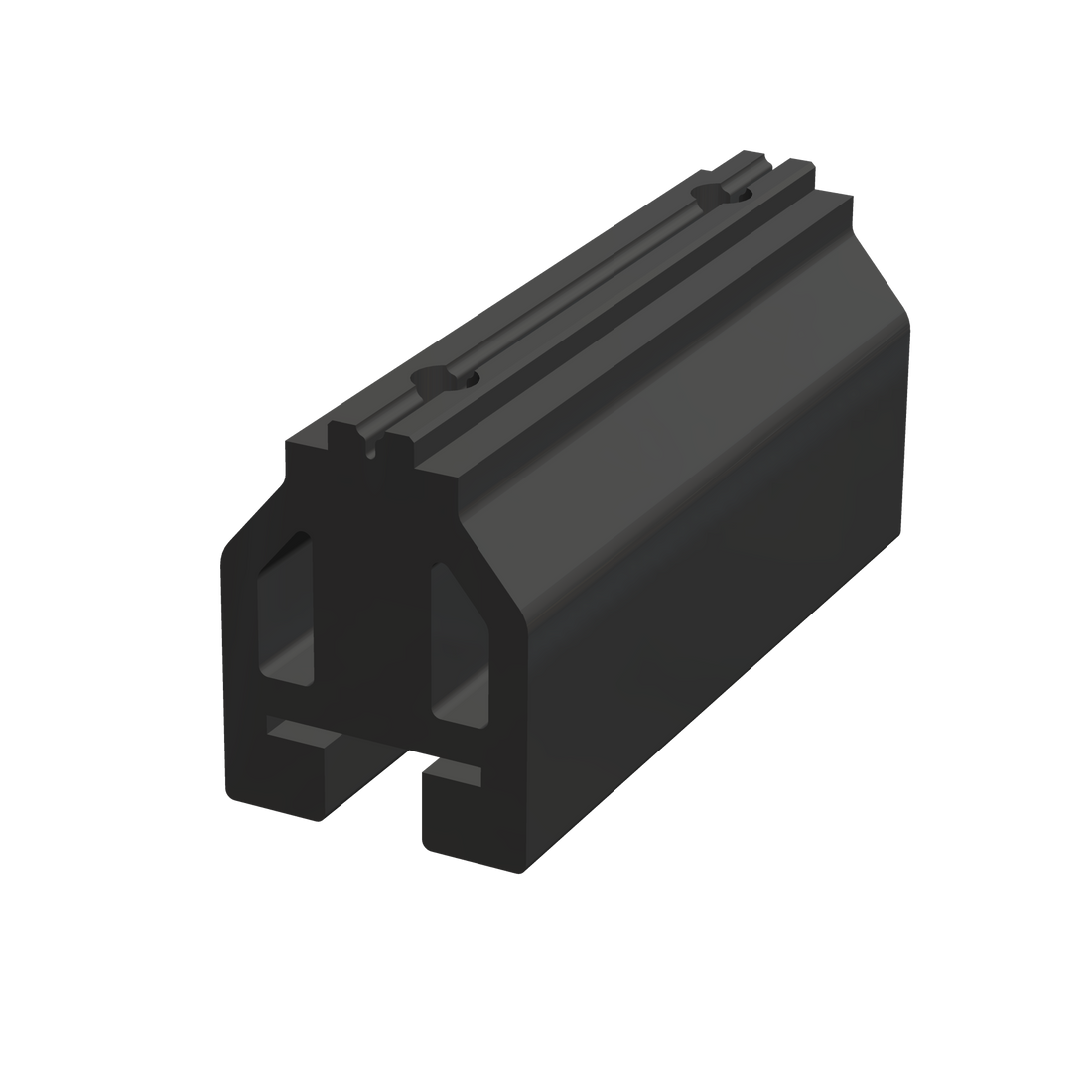

Vibration damper | FlowFriend Standard - HFP 90 | FP.589060
: Vibation damper Make: Stiloh Brandname: FlowFriend Type: FlowFriend Standard - HFP 90 Material: Rubber Dimensions: HFP 90 FlowFriend pump type:Standard - HFP 90
Deep groove ball bearing | FP.589100
: Ball bearing Type: Deep groove ball bearing Size: 6204 Sealing: 2Z Clearance: C3 Lubrication: Life time lubricated FlowFriend Standard HFP90, Pro PP100/22, HPN 110Motor bearing for FlowFriend Standard, Pro and HPN.Driven end (pump side) 1 piece per motor.
Deep groove ball bearing | FP.589099
: Ball bearing Type: Deep groove ball bearing Size: 6202 Sealing: 2Z Clearance: C3 Lubrication: Life time lubricated FlowFriend Junior HFP 70Motor bearing for FlowFriend Junior.Driven end (pump side) and Non driven end (motorside).2 pieces needed per motor. FlowFriend Standard HFP90, Pro PP100/22, HPN 110Motor bearing for FlowFriend Standard, Pro and HPN.Non driven end (fan side) 1 piece per motor.
Cable gland IP68 | Lapp Skintop M20x1.5 | FP.589007
: Cable glandMake: LappType: Skintop MS-SC-MIP rating: IP68Size: M20x1.5 Material: Brass Nickle platted
Impeller nut | FlowFriend - Junior - HFP 70 | FP.589035
: Impeller nutMake: FlowFriendType: Junior - HFP 70 Material: Cast stainless steel 1.4408 (CF8M)
Distance ring | FlowFriend Junior - HFP 70 | FP.589034
: Distance ringMake: FlowFriendType: Junior - HFP 70 Material: Cast stainless steel 1.4408 (CF8M)
O-Ring | 92.75 x 2.62 | FP.589022
: O-Ring Material: NBR Hardness: 70 shore hardness Dimensions: 92.75 x 2.62 FlowFriend pump type:Standard - HFP 90O-Ring between pumpcover and pumpcasing.

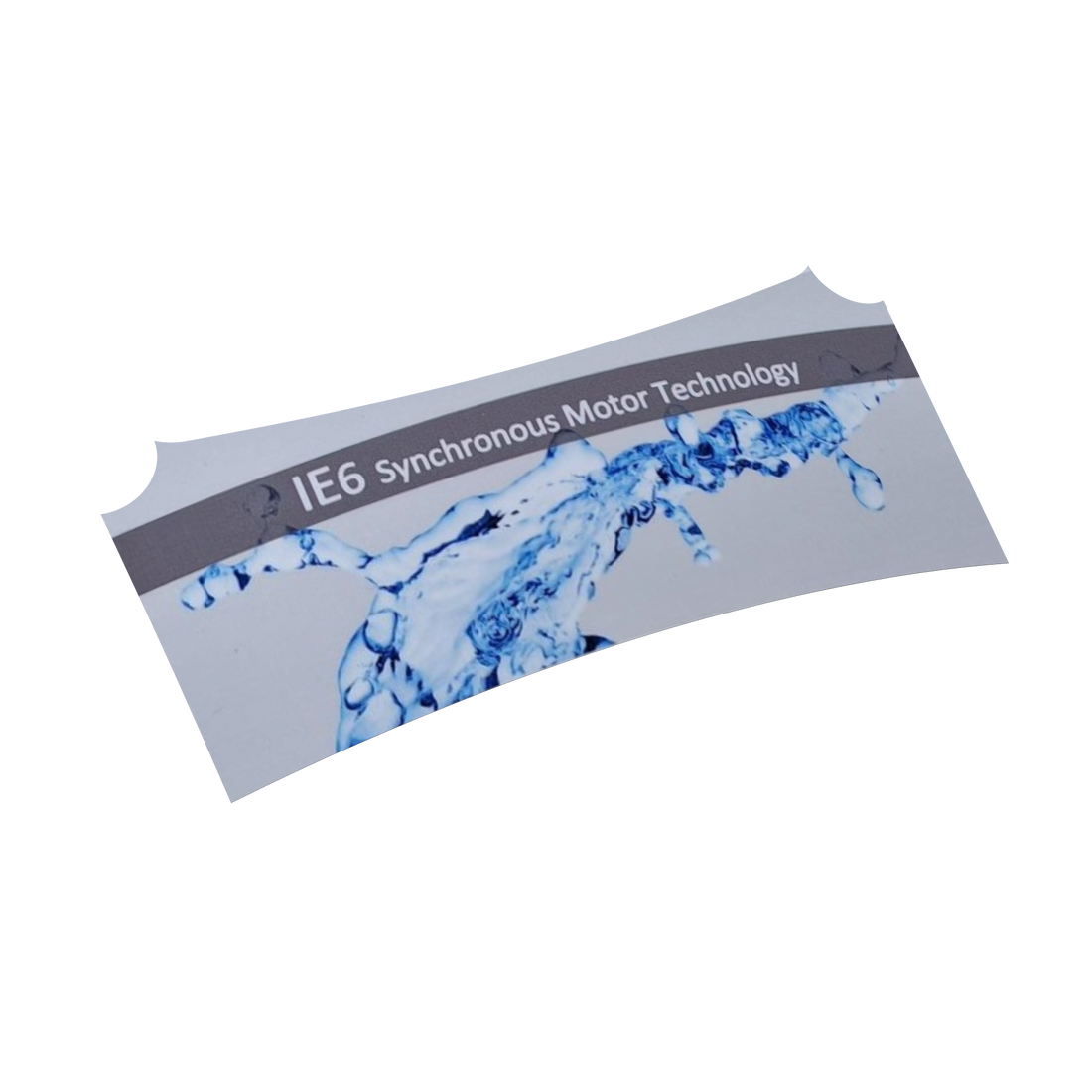

Sticker | Water IE6 motor - Junior - HFP 70 | FP.589071
: Sticker Make: Stiloh Brandname: FlowFriend Material: PVC Tekst: Water - IE6 synchronous motor technology FlowFriend pump type:Junior - HFP 70
Impeller nut | Standard, Pro, Junior | FP.589040
: Impeller nutMake: FlowFriendType: Standard, Pro, HPN Material: Cast stainless steel 1.4408 (CF8M) Flowfriend types:Standard - HFP 90Pro - PP 100/22HP - HPN 110
Distance ring | Standard, Pro, HPN | FP.589039
: Distance ringMake: FlowFriendType: Standard, Pro, HPN Material: Stainless steel 1.4404 (AISI 316L) Flowfriend types:Standard - HFP 90Pro - PP 100/22HP - HPN 110
O-Ring | 107.62 x 2.62 | FP.589096
: O-Ring Material: NBR Hardness: 70 shore hardness Dimensions: 107.62 x 2.62 FlowFriend pump type:HP - HPN 110O-Ring between pumpcover and pumpcasing.
O-Ring | 113.97 x 2.62 | FP.589023
: O-Ring Material: NBR Hardness: 70 shore hardness Dimensions: 113.67 x 2.62 FlowFriend pump type:Pro - PP 100/22O-Ring between elbow/diffuser and diffuser/suction piece. 2 pieces needed/pump.

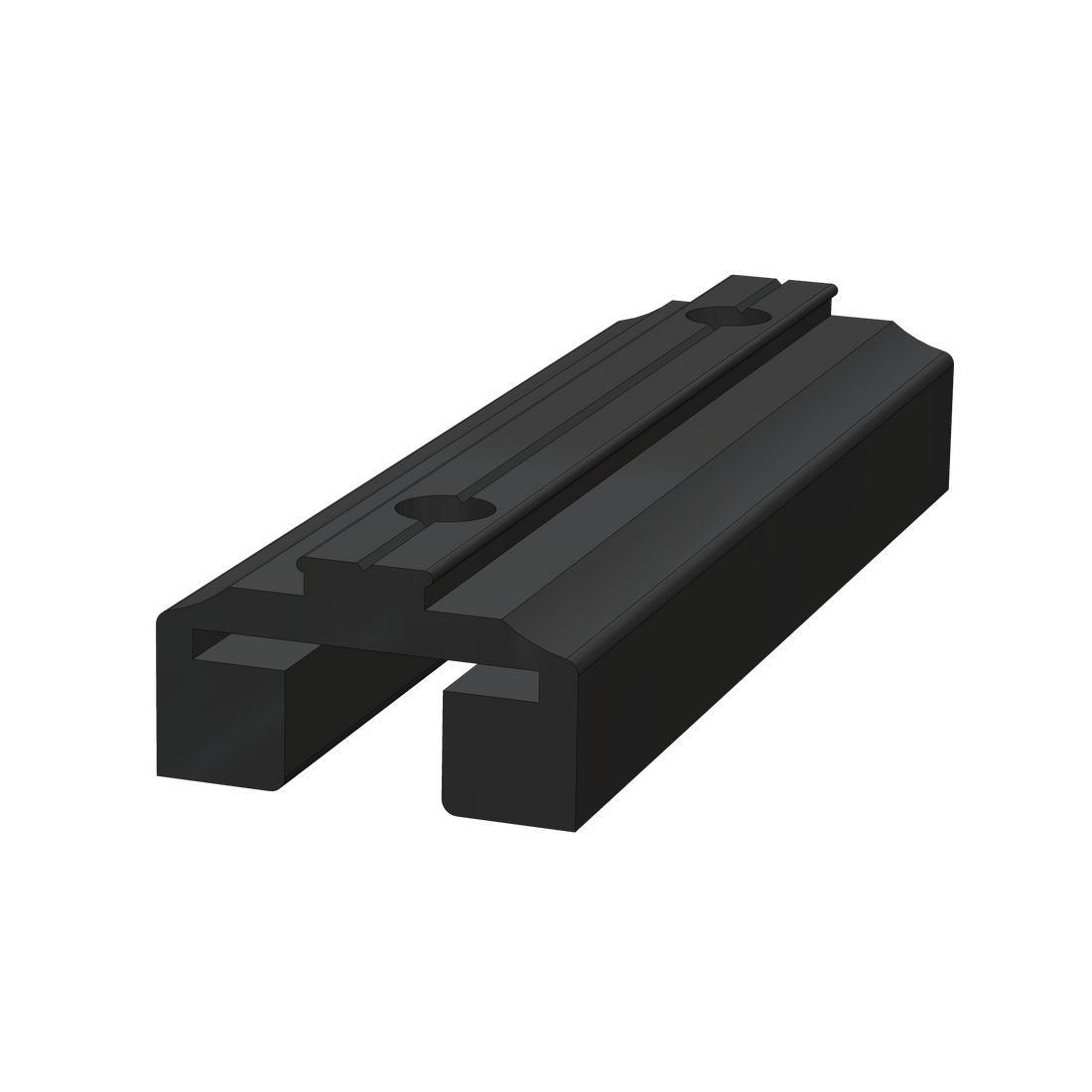

Vibration damper | FlowFriend Pro - PP100/22 | FP.589061
: Vibation damper Make: Stiloh Brandname: FlowFriend Type: FlowFriend Pro - PP 100/22 Material: Rubber Dimensions: PP 100/22 FlowFriend pump type:Pro - PP 100/22
Parallel key | 3x3x12 | FP.589057
: Parallel key Standard: DIN 6885 A Dimensions: 3x3x12 Material: Stainless steel A4
O-Ring | 91 x 2.5 | FP.589021
: O-Ring Material: NBR Hardness: 70 shore hardness Dimensions: 91 x 2.5 FlowFriend pump type:Standard - HFP 90O-Ring for impeller wearring in pumpcasing.2 pieces needed / pump
Cable gland IP68 | Lapp Skintop M16x1.5 | FP.589006
: Cable glandMake: LappType: Skintop MS-MIP rating: IP68Size: M16x1.5 Material: Brass Nickle platted
Hexagon head screw plug | DIN 910 - G1/8" | FP.589054
: Hexagon head screw plug Standard: DIN 910 Dimensions: G 1/8" Material: Stainless steel A4
O-Ring | 72.69 x 2.62 | FP.589020
: O-Ring Material: NBR Hardness: 70 shore hardness Dimensions: 72.69 x 2.62 FlowFriend pump type:Junior - HFP 70O-Ring between pumpcover and pumpcasing.
O-Ring | 82.27 x 1.78 | FP.589019
: O-Ring Material: NBR Hardness: 70 shore hardness Dimensions: 82.27 x 1.78 FlowFriend pump type:Junior - HFP 70O-Ring between motor and pumpcover
Condens water plug - Nylon | HEW - Standard, Pro, HPN | FP.589005
: Condens water plug PMSM motor - Permanent Magnet Synchronous MotorMake: StilohBrand: FlowFriendType: Standard, Pro, HPNMaterial: Nylon Plug can be removed in high humidity and non- continuous operation (start-stop operation)

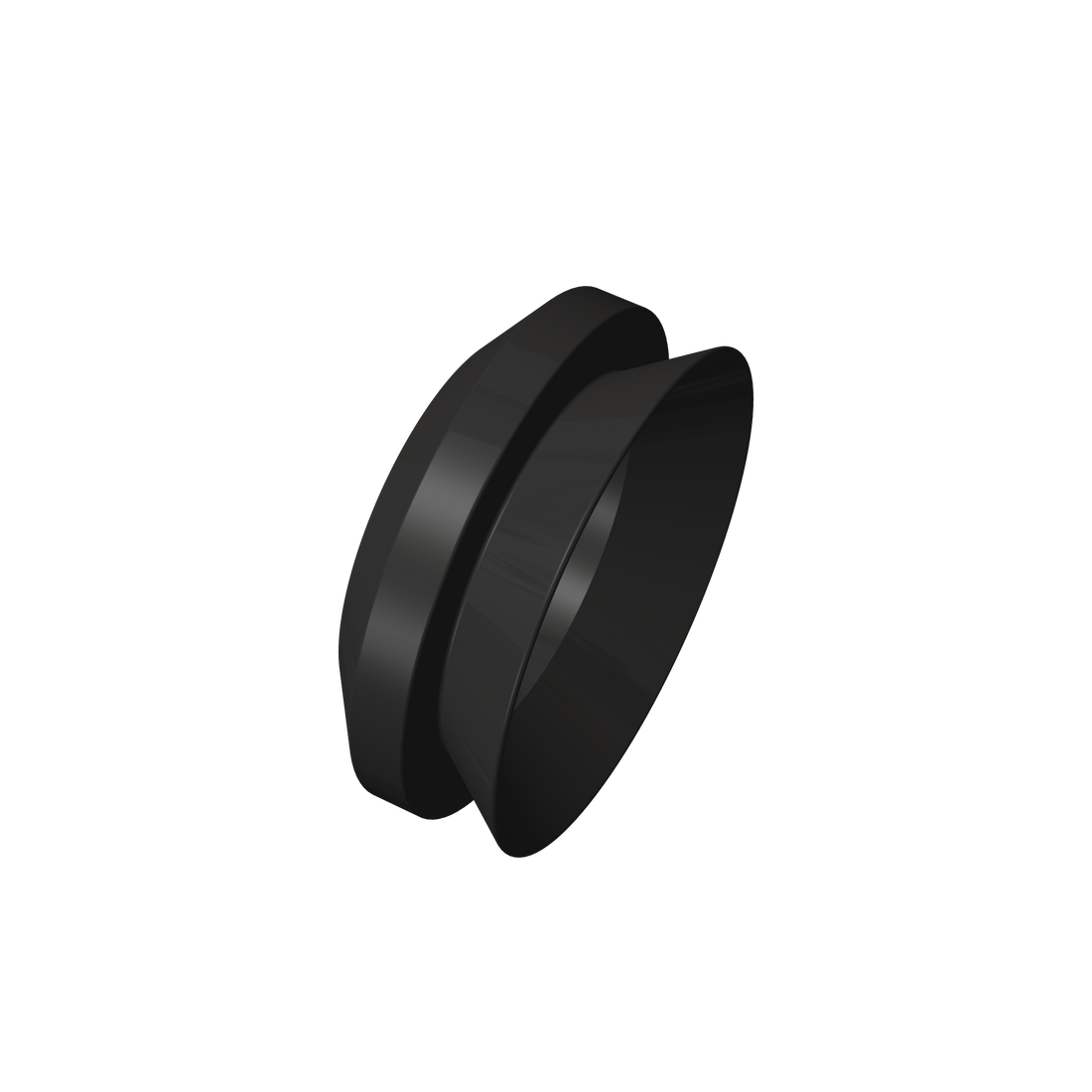

V-Ring | V-20S | FP.589017
: V-Ring Type: V-20S Material: NBR Dimensions: 20 mm FlowFriend pump types:HP - HPN 110Standard - HFP 90Pro - PP 100/22
