Products

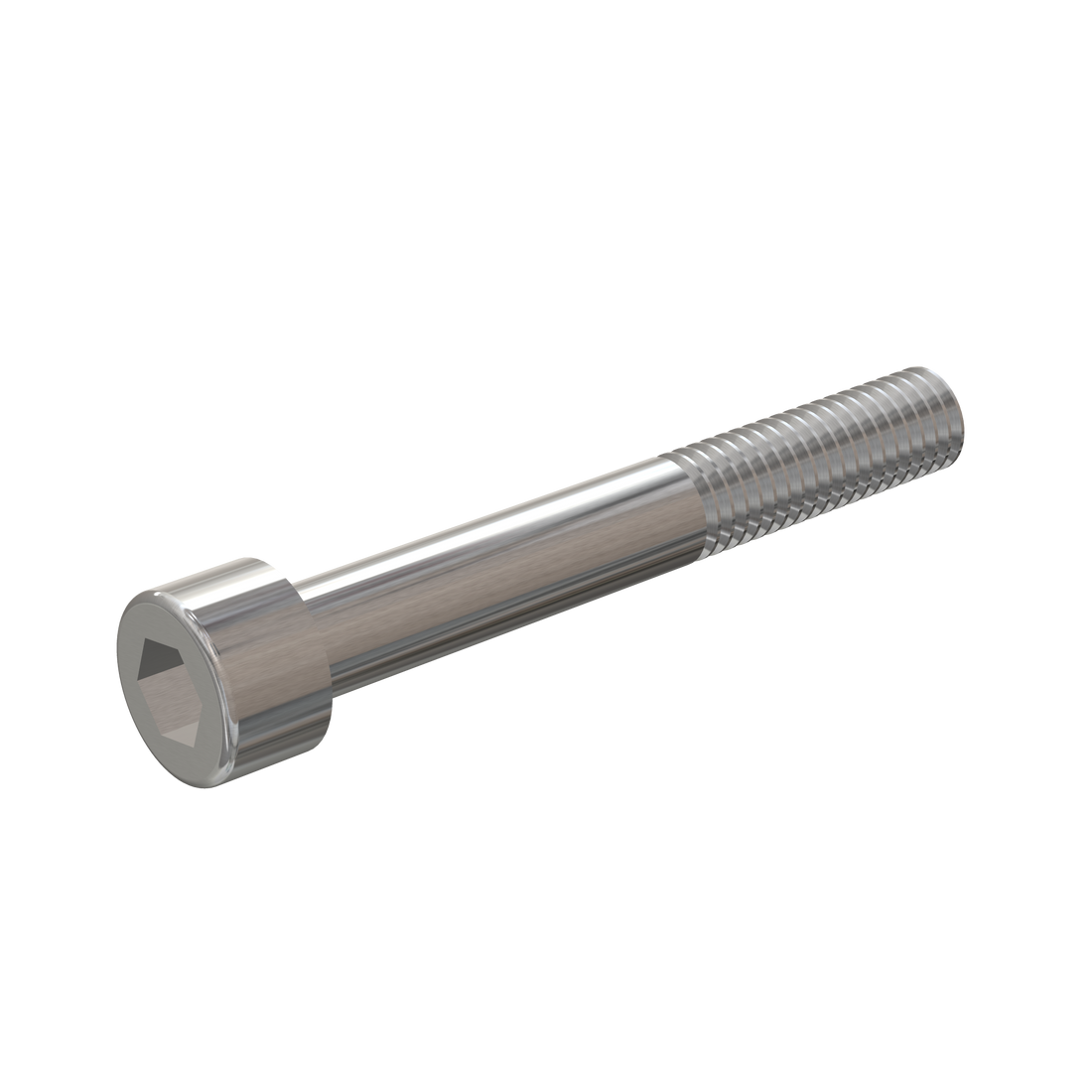

Product 41 | FP.589051
Hexagon Socket Head Screw, DIN 912, M6x45, Stainless steel A2
Product 57 | FP.589097 V-115
Motor controller - VSD, Junior, HFP 70, Single pfase 230V
Product 58 | FP.589098 V-230
Motor controller - VSD, Junior, HFP 70, Single pfase 115V
Pump casing | FlowFriend - Standard - HFP 90 | FP.589037
: Pump casingMake: FlowFriendType: Standard - HFP 90 Material: Cast stainless steel 1.4408 (CF8M)
Pump casing | FlowFriend HPN 110 | FP.589091
: PumpcasingMake: FlowFriendType: HPN 110Material: Cast stainless steel 1.4408 (CF8M)
Pumpcasing | FlowFriend Junior - HFP 70 | FP.589032
: PumpcasingMake: FlowFriendType: Junior - HFP 70 Material: Cast stainless steel 1.4408 (CF8M)
Shaft seal | Domselring WDR 14x28x7 | FP.589029
: Shaft seal Type: Domselring WDR, type AB Pressure: max. 6 bar Material: NBR / steel Dimensions: 14x28x7 FlowFriend pump type:Junior - HFP 70The shaft seal must be filled for 80% with special Berulub grease.
Spare motor - Long shaft | FlowFriend Pro - PP 100/22 | FP.589001
: Spare PMSM motor - Permanent Magnet Synchronous MotorMake: StilohBrand: FlowFriendType: Pro - PP 100/22IP rating: IP55Shaft power: 1100W Material: AluminiumExtended shaft: 1.4122 - Long shaft
Spare motor - Normal shaft | Standard, HPN | FP.589000
: Spare PMSM motor - Permanent Magnet Synchronous MotorMake: StilohBrand: FlowFriendType: Standard, HPNIP rating: IP55Shaft power: 1100W Material: AluminiumExtended shaft: 1.4122 - Normal shaftFlowFriend pump types:FlowFriend Standard - HFP 90 (Series 2>)FlowFriend HP - HPN 110 (Series 0>)
Spare motor | FlowFriend Junior - HFP 70 | FP.589002
: Spare PMSM motor - Permanent Magnet Synchronous Motor Make: Stiloh Brandname: FlowFriend Type: Junior - HFP 70 IP rating: IP67 Size: 800W Material: Aluminium Extended shaft: 1.4404

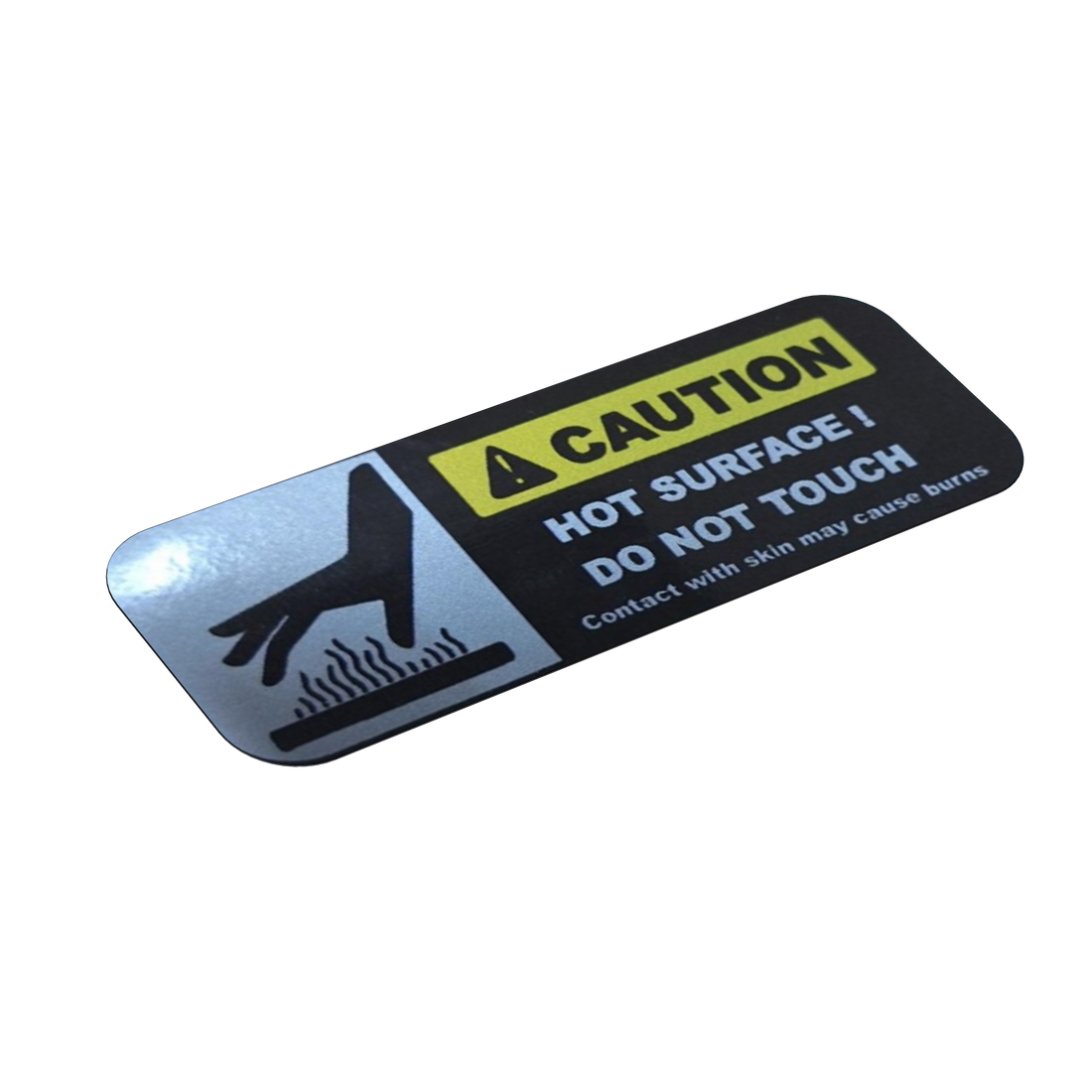

Sticker | Caution hot surface - Junior - HFP 70 | FP.589068
: Sticker Make: Stiloh Brandname: FlowFriend Material: Aluminium Tekst: Caution hot surface FlowFriend pump type:Junior - HFP 70

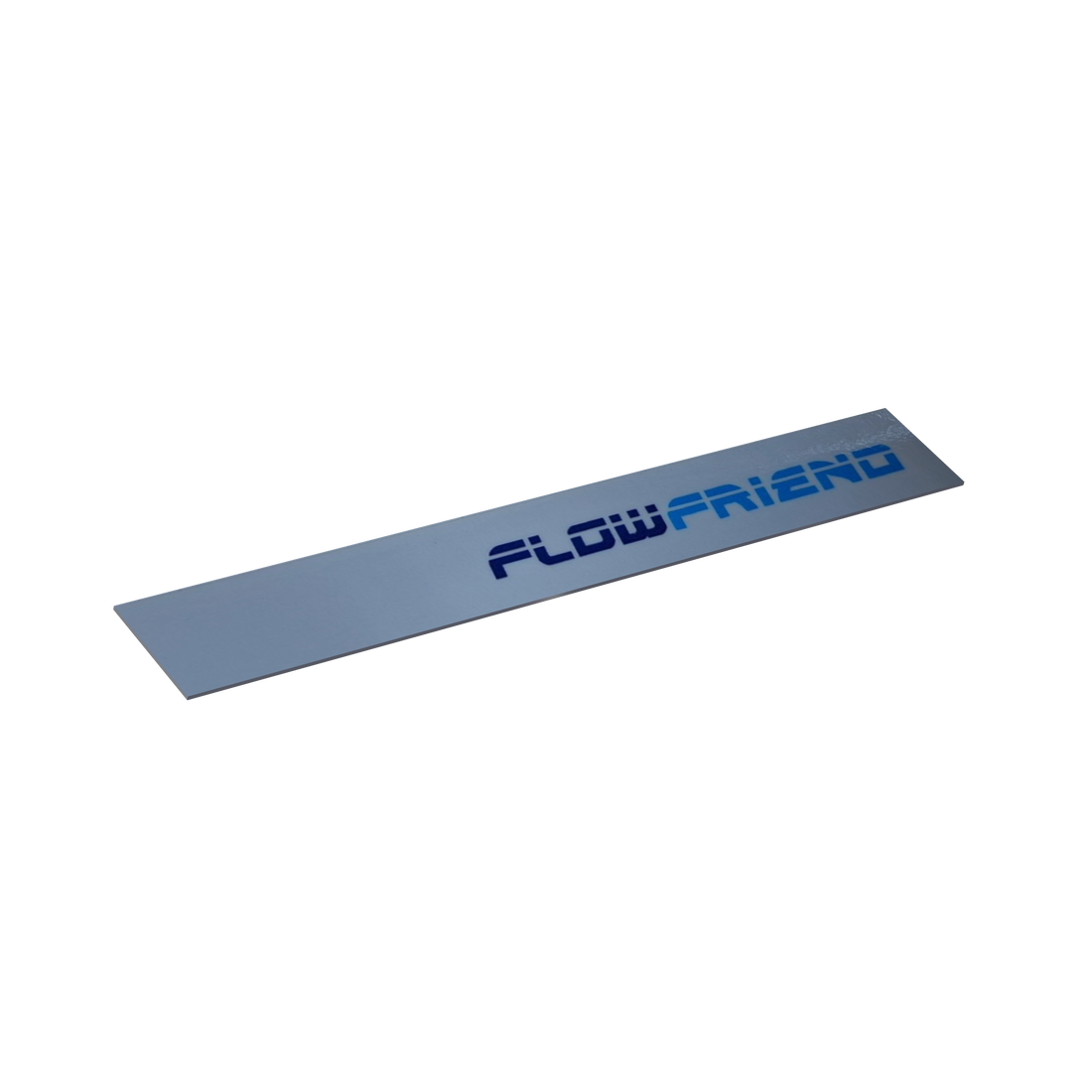

Sticker | FlowFriend - Junior - HFP 70 | FP.589070
: Sticker Make: Stiloh Brandname: FlowFriend Material: PVC Tekst: FlowFriend FlowFriend pump type:Junior - HFP 70

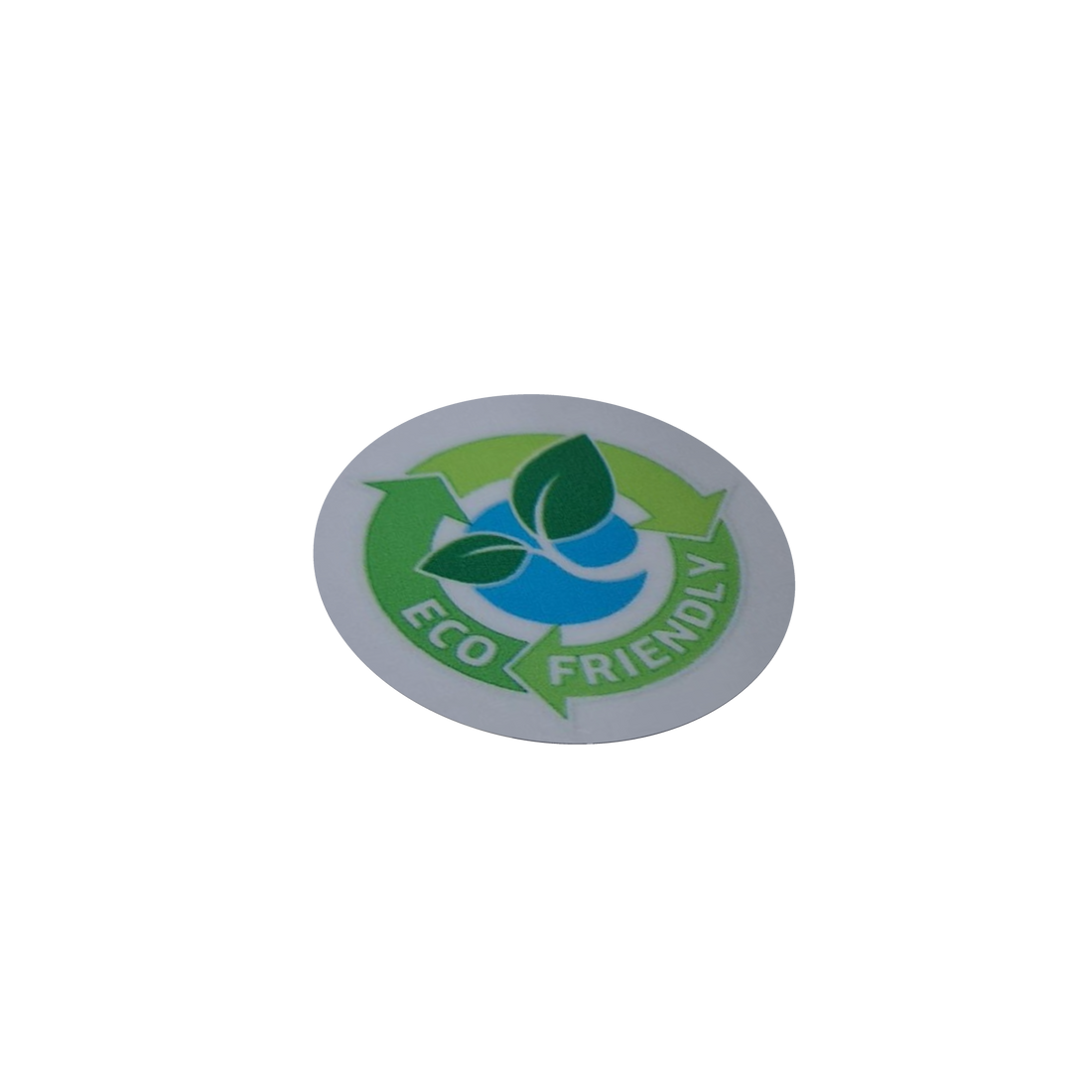

Sticker | Green eco friendly - Junior - HFP 70 | FP.589072
: Sticker Make: Stiloh Brandname: FlowFriend Material: PVC Tekst: Green eco friendly FlowFriend pump type:Junior - HFP 70

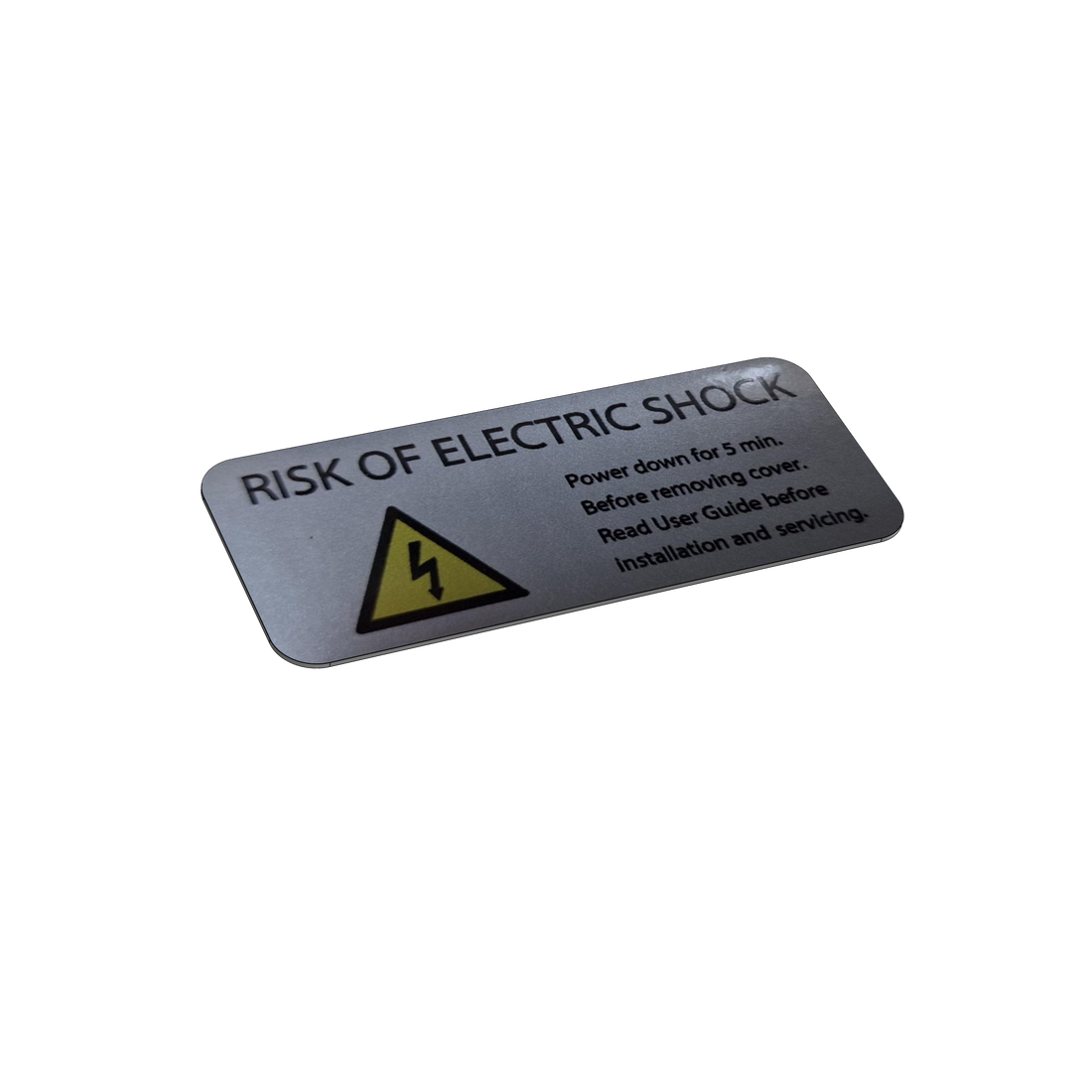

Sticker | Warning electric shock - Junior - HFP 70 | FP.589069
: Sticker Make: Stiloh Brandname: FlowFriend Material: Aluminium Tekst: Warning electric shock FlowFriend pump type:Junior - HFP 70
Sticker | Water IE6 motor - Junior - HFP 70 | FP.589071
: Sticker Make: Stiloh Brandname: FlowFriend Material: PVC Tekst: Water - IE6 synchronous motor technology FlowFriend pump type:Junior - HFP 70

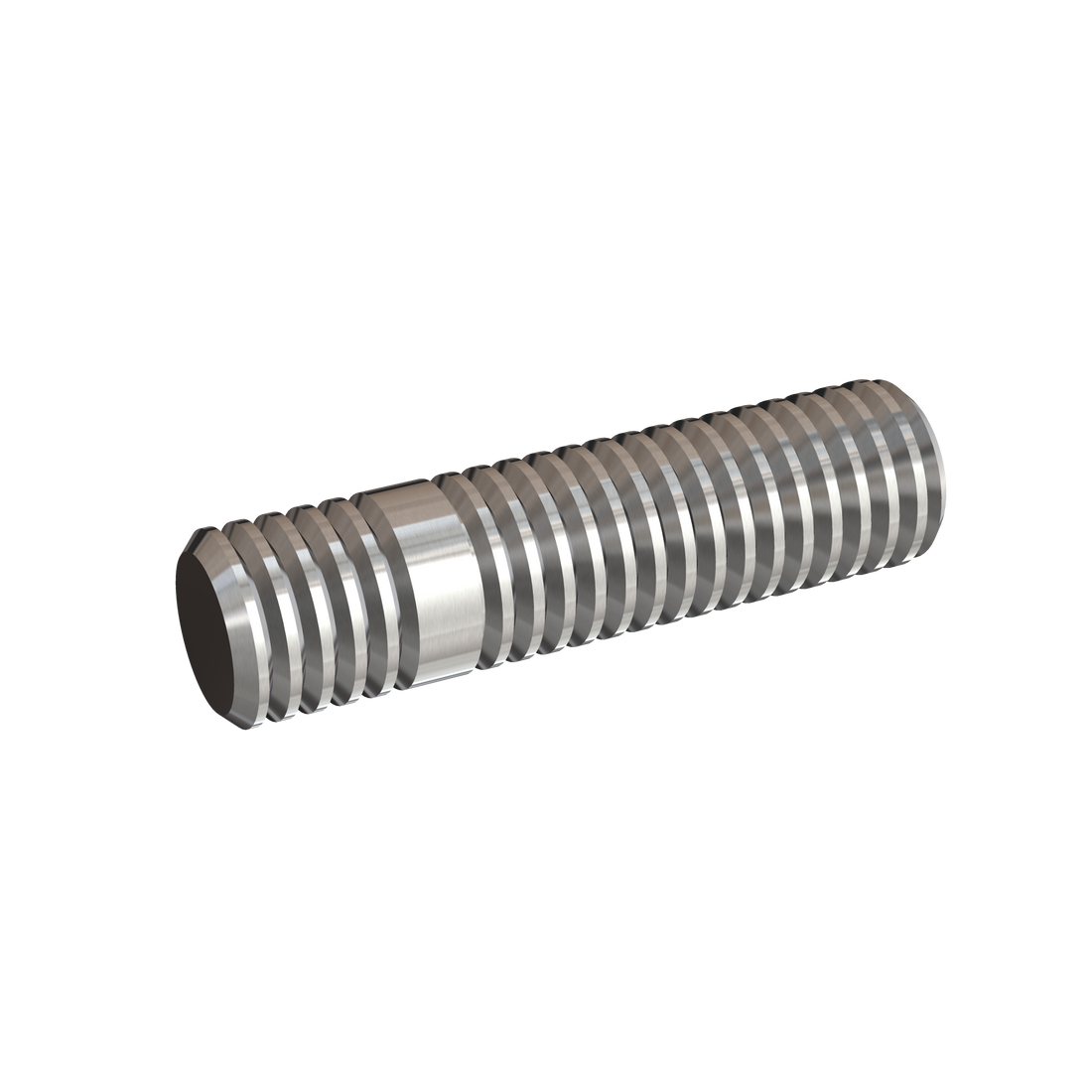

Stud 1.25xD | DIN 939 - M6x16 | FP.589056
: Stud 1.25xD Standard: DIN 939 Dimensions: M6x16 Material: Stainless steel A4
Suction Piece | FlowFriend Pro - PP 100/22 | FP.589044
: Suction pieceMake: FlowFriendType: HPN 110Material: Cast stainless steel 1.4408 (CF8M)
V-Ring | V-20S | FP.589017
: V-Ring Type: V-20S Material: NBR Dimensions: 20 mm FlowFriend pump types:HP - HPN 110Standard - HFP 90Pro - PP 100/22
Vibration damper | FlowFriend Junior - HFP 70 | FP.589059
: Vibation damper Make: Stiloh Brandname: FlowFriend Type: FlowFriend Junior - HFP 70 Material: Rubber Dimensions: HFP 70 FlowFriend pump type:Junior - HFP 70
Vibration damper | FlowFriend Pro - PP100/22 | FP.589061
: Vibation damper Make: Stiloh Brandname: FlowFriend Type: FlowFriend Pro - PP 100/22 Material: Rubber Dimensions: PP 100/22 FlowFriend pump type:Pro - PP 100/22
Vibration damper | FlowFriend Standard - HFP 90 | FP.589060
: Vibation damper Make: Stiloh Brandname: FlowFriend Type: FlowFriend Standard - HFP 90 Material: Rubber Dimensions: HFP 90 FlowFriend pump type:Standard - HFP 90
Vibration damper | FlowFriend Standard - HPN 110 - Prime 100 | FP.589094
: Vibation damper Make: Stiloh Brandname: FlowFriend Type: FlowFriend HP - HPN 110 and Prime 100 Material: Rubber Dimensions: HPN 110 FlowFriend pump type:HP - HPN 110 | Prime 100

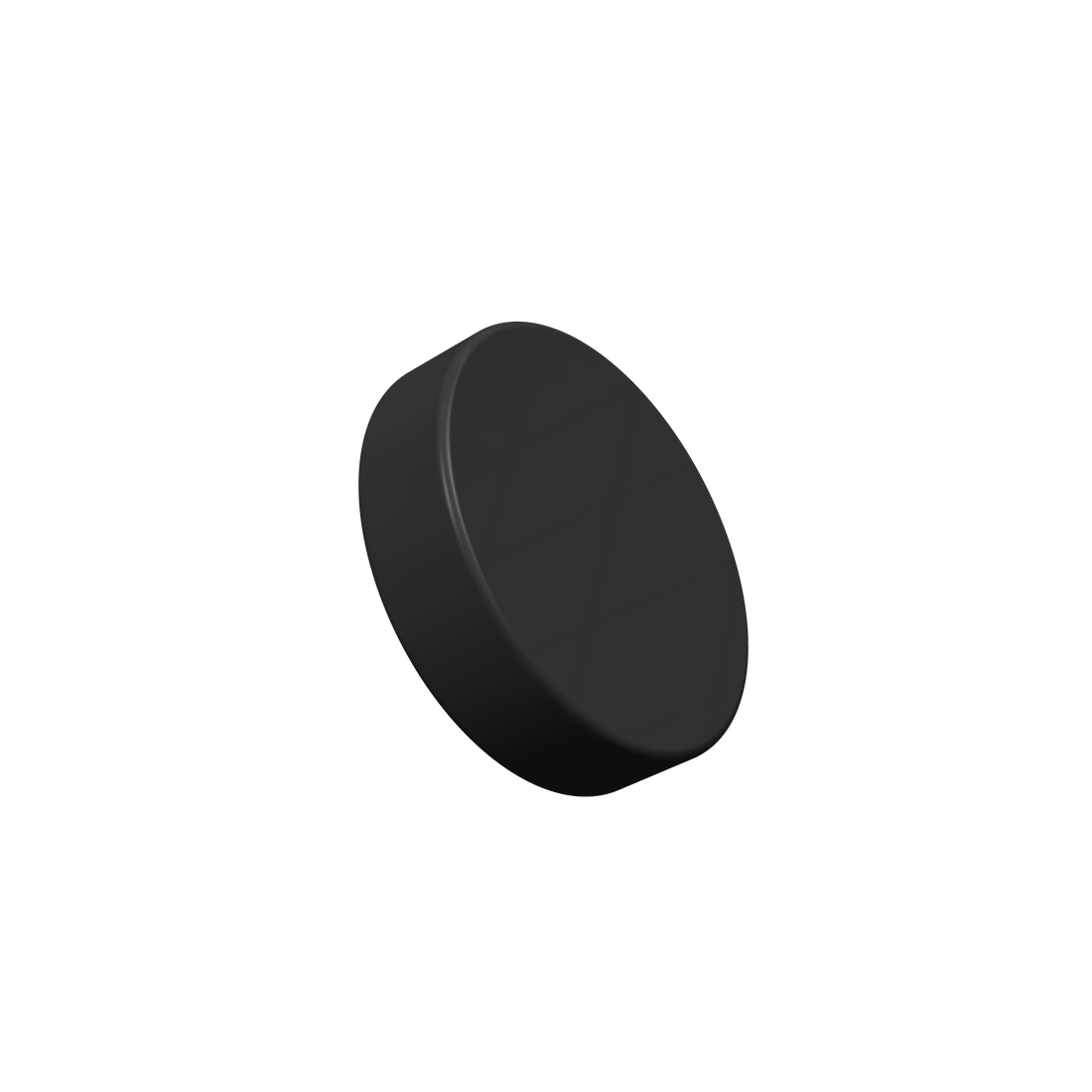

Vibration damper | Rubber disc 20x5 | FP.589018
: Vibation damper Type: Superbra Round disc Material: NBR Dimensions: 20x5 mm FlowFriend pump types:HP - HPN 110Standard - HFP 90Pro - PP 100/22Junior - HFP 70
Washer | DIN 125A - M5 | FP.589048
: Washer Standard: DIN 125A Dimensions: 5.3x10x1 - M5 Material: Stainless steel A2

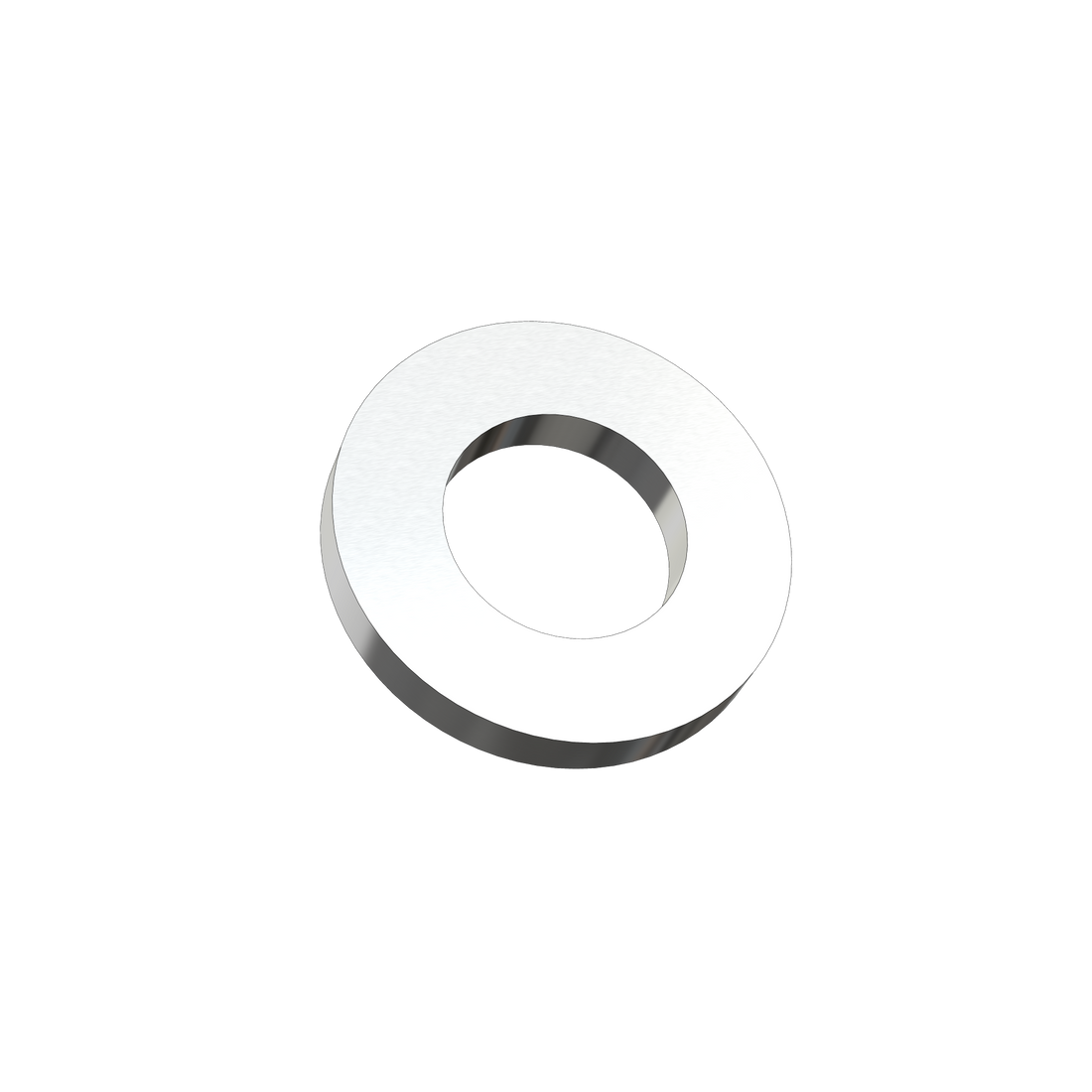

Washer | DIN 125A - M6 | FP.589049
: Washer Standard: DIN 125A Dimensions: 6.4x12x1.6 - M6 Material: Stainless steel A2
Wearring Impeller | 91/88 x 18mm | FP.589064
: Wearring impeller Make: Stiloh Brandname: FlowFriend Type: High performance filled carbon Material: Filled carbon Dimensions: 91/88 x 18mm FlowFriend pump type:Standard - HFP 90 This impeller wearring provide a easy and economically renewable running clearance between the impeller and casing to keep an optimal pump efficiency.To minimize the leakage between casing and impeller this wearring should be replaced latest after 40.000 hours (for clean water).If the diametrical clearance is more than 0.5 mm this wearring must always be replaced.
